Maxi-Lite®
Maxi-Lite®
The Maxi-Lite® is Allmand’s premium light tower containing the most durable job site features commonly required in heavy construction, oil and gas, and mining applications, where rugged usage is the norm. Allmand has built its reputation in these industries and understands the rigor required to handle the tough job site challenges and needs. The Maxi-Lite's 6-section tower contains 13" minimum overlapping tower sections for strength and stability. It includes larger self-lubricating wear pads and pulley locations that result in longer lasting and minimal wearing parts. The hydraulic winch and light cabling attachments are constructed to last in the most extreme conditions. Allmand gets the job done.
Download the product spec sheet or product sell sheet for additional information.
Click here to learn more about Allmand financing.
Click and drag image to rotate.
1,250
Metal Halide Wattage
542,000 - 813,000
Metal Halide Lumens (total)
320
LED Wattage
154,000 - 231,000
LED Lumens (total)
Features
Specifications
At least one product must be displayed. Please select another option to remove this product
Wiring Diagram Schematic - English*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
****All power levels are stated gross horsepower as rated by the engines© manufacturers
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.
*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
****All power levels are stated gross horsepower as rated by the engines© manufacturers
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.
Outlets
8kW
(2)-20 A 120 VAC duplex GFCI outlets, (2)-30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R), (1)-30A RV Outlet
15kW & 20kW
(2)-20 A 120 VAC duplex GFCI outlets, (3)-30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R), (1)-50A Twist Lock
Options
LSC with E-Stop Package
– LSC 2.1™ – Light Sequence Commander® automatically starts engine at sunset and shuts down engine at sunrise – programmable for user preferences.
– Emergency stop switch on exterior of machine
Arctic Package
– Block heater– Arctic hydraulic fluid
– Heavy duty battery (K1005 & C1.1 only)
Arctic Max Package
(only available with Arctic Plus Package)
– Diesel fired block heater– Muffler wrap
– Dual heavy-duty batteries
LED Package
– (4) or (6) LED light fixtures
Arctic Plus Package
(only available with Arctic Package)
– Heated fuel/water separator
– Radiator cover
– Adjustable air vent cover panel
Mining Package
(all models except 20 kw)
– Safety run beacon
– Reflective tape
– Wheel chocks
– Metal halide Secondary Fixture Retention (SFR) System (not available on LED)
– Vertical exhaust w/ shield (8 kw only)– Muffler wrap
Special Outlet Package
(15 kW only – April 1st)
– 30A RV & 50A RV outlet
LSC 2.1™ Light Sensing Commander®
(Optional) Automatically starts engine and turns on lights at sunset and shuts down lights and engine at sunrise – programmable for user preferences.
Engine Air Intake Shut-Off Valve
Battery Disconnect
Airstar Package
(4 Metal Halide lights only)
Reversible Coupler
2" Bulldog® / 3" Pintle
Reversible Coupler
2-5/16" Bulldog® / 3" Pintle
Interior Work Lights
CSA Lights
Chip Resistant Panels
Emergency Stop
(Standard on 20 kW)
Low Fuel Shut-Off System & Low Fuel Beacon
Telematics Package
(Customer Supplied)
Custom Paint
Skid Mount Available on Standard SKUs
Switchable Balloon Light
Galvanized Tower

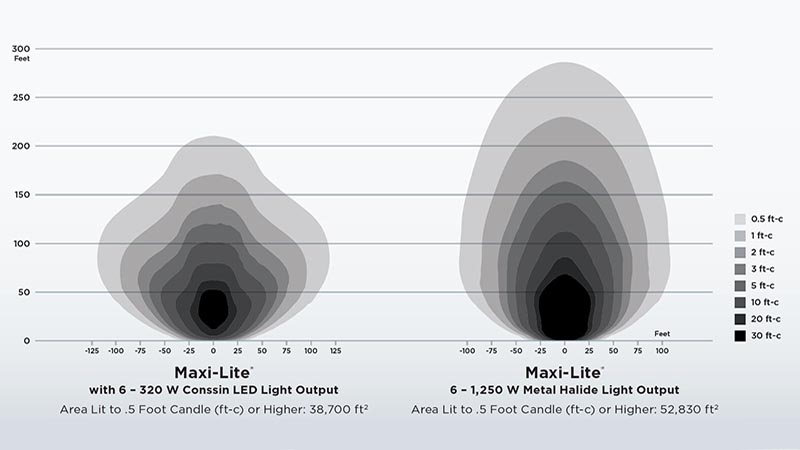

Light Coverage
