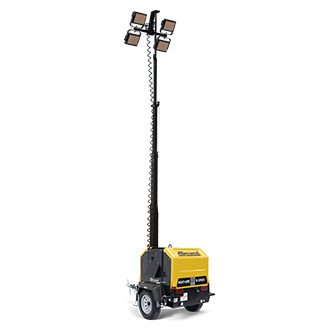

Night-Lite™ V-Series®

Night-Lite™ V-Series®

V-Series®

An ROI-driven solution, the Night-Lite™ V-Series® is built with the efficiency, durability and performance you demand. This light tower is great for special events, building construction and infrastructure construction. This unit is made with a convenient fuel fill neck for quick refueling allowing you to get back to work fast and stay on top of any job. With up to 542,000 total lumens from four metal halide or LED light fixtures and eco-friendly sized units fitting 20 on a 53ft flatbed trailer, the Night-Lite™ V-Series® is perfect for any jobsite.

For a tutorial video and more product support, visit the Night-Lite™ V-Series® operations page.

1,250

Metal Halide Wattage

542,000

Metal Halide Lumens (total)

320

LED Wattage

154,000

LED Lumens (total)

Features

Sequenced Lighting System (SLS™)

Automatically delays engine shutdown to turn off lights and prevent the generator from shutting down while under load.

Tower

Structure - Five-section tubular steel design
Actuation - Manual winch, standard
Tower rotation - 359° fixture rotation
Guide pads - Polyethylene self-lubricating

Trailer Lighting

Stop, turn, tail lights / side marker lights / illuminated license plate bracket.

Stabilizers

Three-point design, tongue jack, (2) retractable side outriggers at front of trailer.

Remote Engine Oil and Coolant Drain

Easily accessible at rear of trailer

45 Gallon Polyethylene Fuel Tank

Fluid Containment System (FCS)

Holds up to 110% of the fuel and engine oil capacity to protect sensitive environments from inadvertent leaks and spills.

Axle

Tubular axle with elliptical leaf springs.

Actuated Manual Winch, Standard

2" Ball Coupler

Tires ST175 / 80R13 load range 'C'

Specifications

At least one product must be displayed. Please select another option to remove this product

Engine Brand
Caterpillar
Engine Model
C.1
Engine Prime Power (kW)**
8
Horsepower (@ 3,600 RPM)****
13.8
Engine Tier
Tier 4 Final
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (per lamp)
135,500
Metal Halide Lumens (total)
542000.0
Operating Time (hrs)*** (Using six 1,250 W metal halide light fixtures)
75
Light Type - LED
(4) Two LED, 5000°K color temperature
LED Wattage (per lamp)
320.0
LED Lumens (per lamp)
38,500
LED Lumens (total)
154000.0
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
118.4
Shipping Weight lbs (kg)
1,885 (855)
Gross Vehicle Weight Rating (GVWR) lbs (kg)
2,200 (998)
Shipping
18 units on a 48' Flatbed and 20 units on a 53' flatbed
Length Transport in (mm)
109.8 ( 2788.92)
Height* Mast Lowered in (mm)
8.5 (2.6 )
Height* Mast Raised in (mm)
24.7 (7.5 )
FUEL CAPACITY
45 (170)

* Balloon light only included in raised dimension – balloon light is removed for transportation.
** Prime generator electrical output per Allmand® testing.
*** Based on one hour run test full fuel tank consumption.
**** All power levels are stated gross horsepower as rated by the engines© manufacturers
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual or www.allmand.com website for complete warranty details.

Engine Brand
Kubota
Engine Model
D1005
Engine Prime Power (kW)**
7
Horsepower (@ 3,600 RPM)****
11.6
Engine Tier
Tier 4 Final
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (per lamp)
135,500
Metal Halide Lumens (total)
542000.0
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
72.6
Light Type - LED
(4) Two LED, 5000°K color temperature
LED Wattage (per lamp)
320.0
LED Lumens (per lamp)
38500.0
LED Lumens (total)
154000.0
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
155.2
Shipping Weight lbs (kg)
1,885 (855)
Gross Vehicle Weight Rating (GVWR) lbs (kg)
2,200 (998)
Shipping
18 units on a 48’ flatbed trailer 20 units on a 53’ flatbed trailer
Length Transport in (mm)
109.8 (2,788.92)
Width Transport in (mm)
58 (1,473.2)
Width Operating in (mm)
104.7 (2,659)
Max Height ft (m)
24.7 (7.5)
Height* Mast Lowered in (mm)
8.5 (2.6)
Height Tower Raised
24.6
FUEL CAPACITY
45 (170)

* Balloon light only included in raised dimension – balloon light is removed for transportation.
** Prime generator electrical output per Allmand® testing.
*** Based on one hour run test full fuel tank consumption.
**** All power levels are stated gross horsepower as rated by the engines© manufacturers
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual or www.allmand.com website for complete warranty details.

Engine Brand
Caterpillar
Kubota
Engine Model
C.1
D1005
Engine Prime Power (kW)**
8
7
Horsepower (@ 3,600 RPM)****
13.8
11.6
Engine Tier
Tier 4 Final
Tier 4 Final
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
(4) Metal Halide SHO-HD® fixture
Metal Halide Wattage (per lamp)
1,250
1,250
Metal Halide Lumens (per lamp)
135,500
135,500
Metal Halide Lumens (total)
542000.0
542000.0
Operating Time (hrs)*** (Using six 1,250 W metal halide light fixtures)
75
Light Type - LED
(4) Two LED, 5000°K color temperature
(4) Two LED, 5000°K color temperature
LED Wattage (per lamp)
320.0
320.0
LED Lumens (per lamp)
38,500
38500.0
LED Lumens (total)
154000.0
154000.0
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
118.4
155.2
Shipping Weight lbs (kg)
1,885 (855)
1,885 (855)
Gross Vehicle Weight Rating (GVWR) lbs (kg)
2,200 (998)
2,200 (998)
Shipping
18 units on a 48' Flatbed and 20 units on a 53' flatbed
18 units on a 48’ flatbed trailer 20 units on a 53’ flatbed trailer
Length Transport in (mm)
109.8 ( 2788.92)
109.8 (2,788.92)
Height* Mast Lowered in (mm)
8.5 (2.6 )
8.5 (2.6)
Height* Mast Raised in (mm)
24.7 (7.5 )
FUEL CAPACITY
45 (170)
45 (170)
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
72.6
Width Transport in (mm)
58 (1,473.2)
Width Operating in (mm)
104.7 (2,659)
Max Height ft (m)
24.7 (7.5)
Height Tower Raised
24.6

* Balloon light only included in raised dimension – balloon light is removed for transportation.
** Prime generator electrical output per Allmand® testing.
*** Based on one hour run test full fuel tank consumption.
**** All power levels are stated gross horsepower as rated by the engines© manufacturers
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual or www.allmand.com website for complete warranty details.

Outlets

Standard

20 A 120 VAC duplex GFCI / 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R) / 30 A 120 VAC RV (NEMA TT-30R)

Options

Cold Weather Package
– Heavy duty battery 775 CCA @ 0° F
– Block heater (120 VAC)



LED Package
– (4) LED light fixtures



LSC with E-Stop Package
(Not available with Mitsubishi Engine)
– LSC 2.1™ – Light Sequence Commander® automatically starts engine at sunset and shuts down engine at sunrise – programmable for user preferences.
– Emergency stop switch on exterior of machine



Marathon Alternator

CSA
(Metal Halide and LED)



Galvanized Tower



2" Bulldog Coupler with 3" Lunette Ring for Pintle Hitch

Telematics Package
(Customer supplied – consult factory)



Electric Winch Actuated Light Tower



Lockable Battery Disconnect



Reversible Coupler
2" ball with 3" pintle



Reversible Coupler
2" Bulldog® coupler with 3" pintle



Custom Paint



Fuel Level Gauge



Fluid Containment System (FCS)



2" Ball Coupler with 3" Lunette Ring for Pintle Hitch

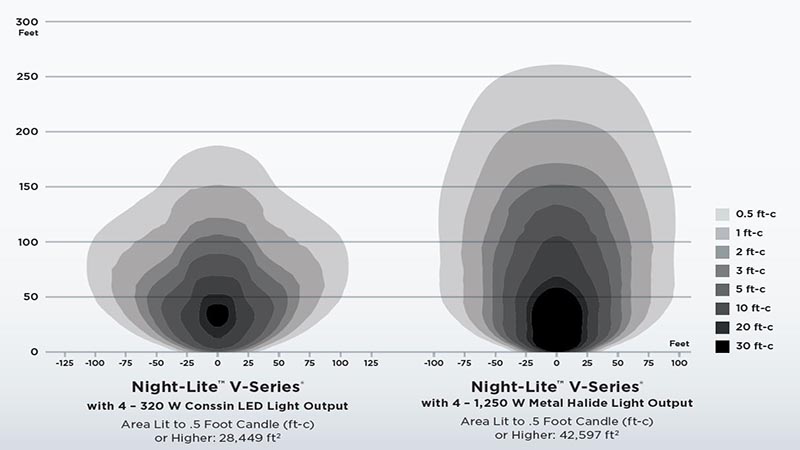

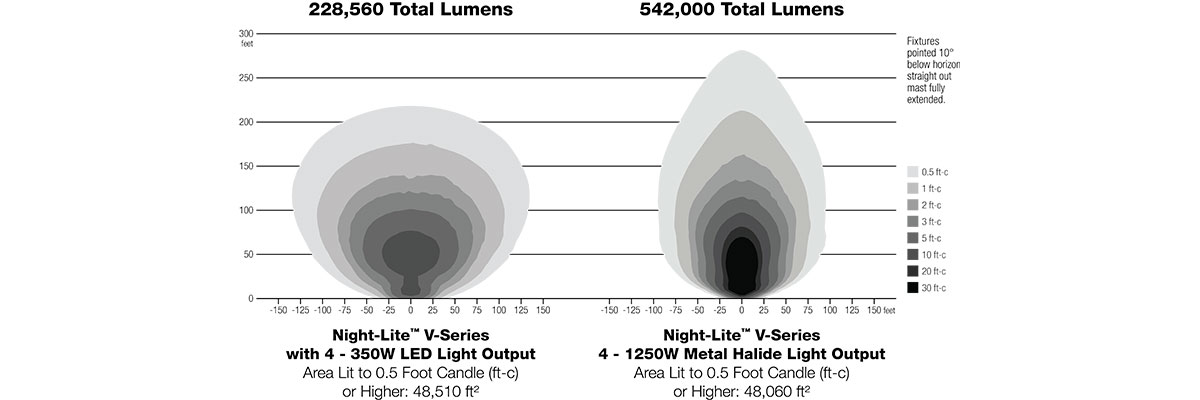

Light Coverage
