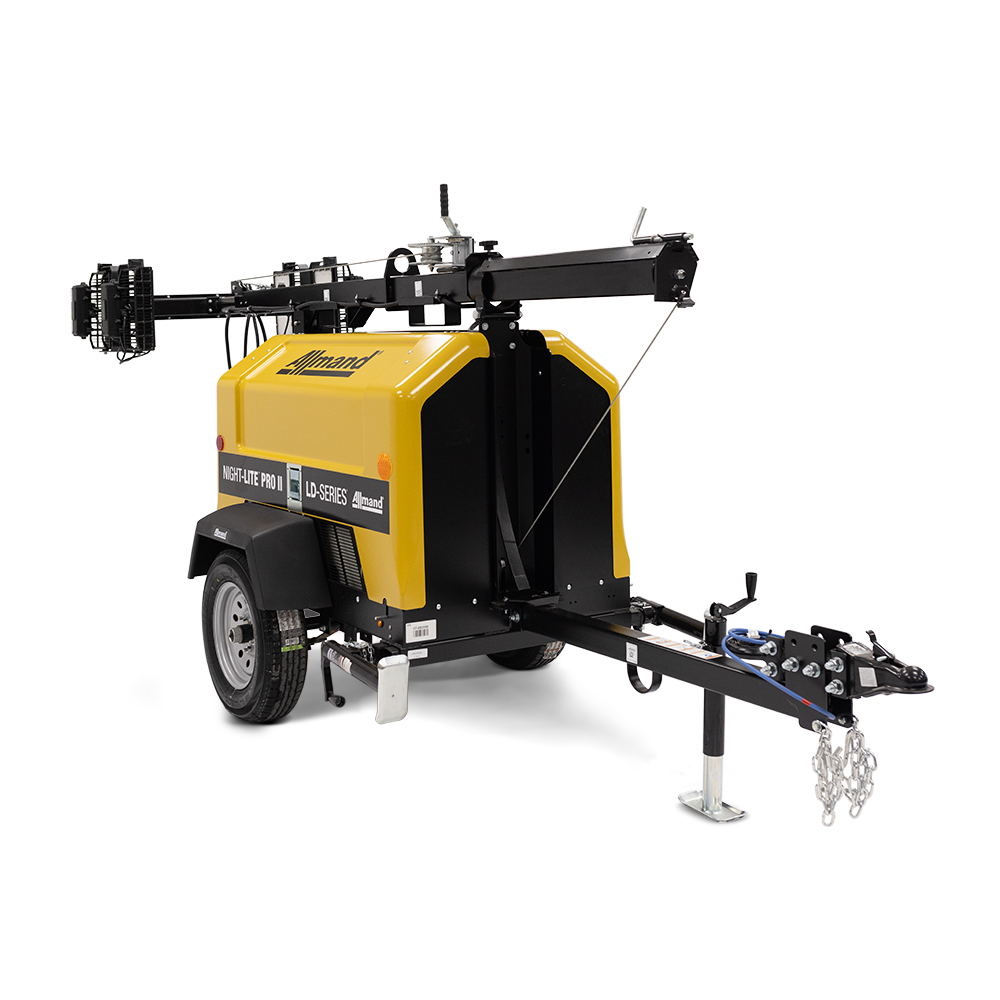

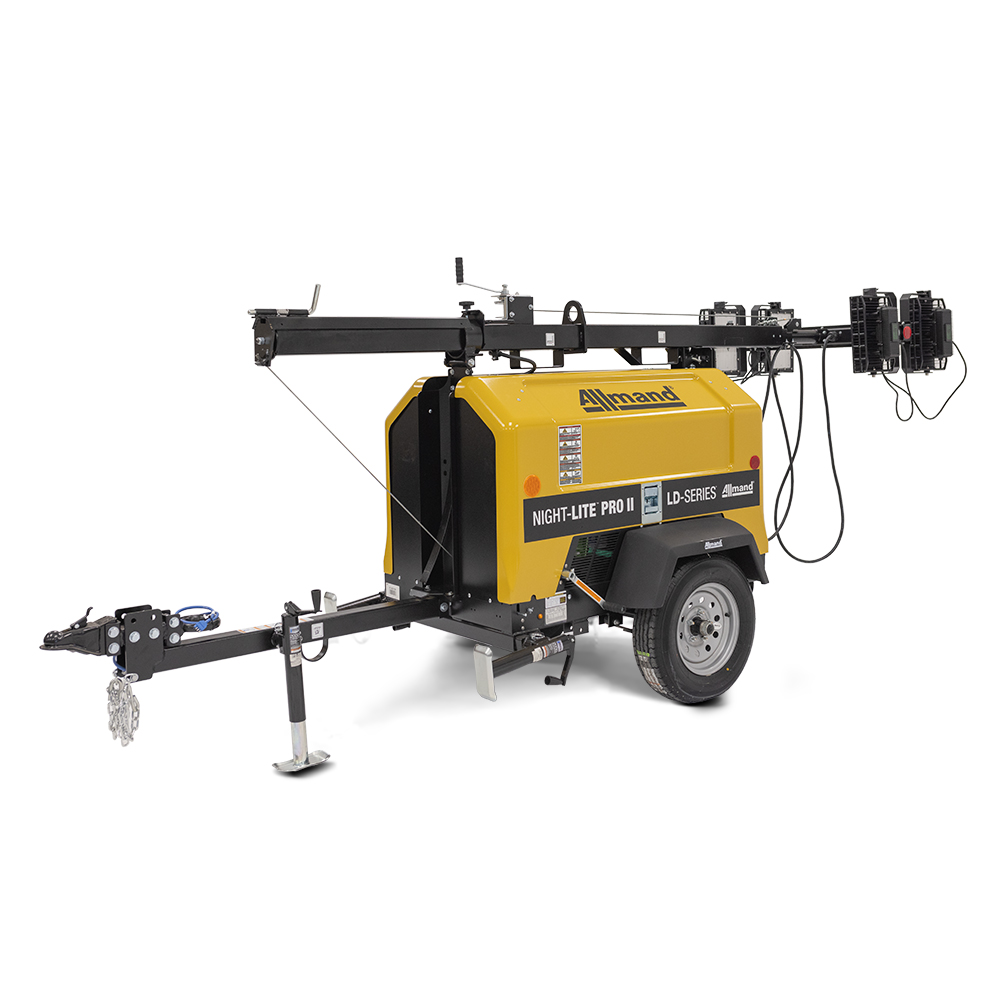

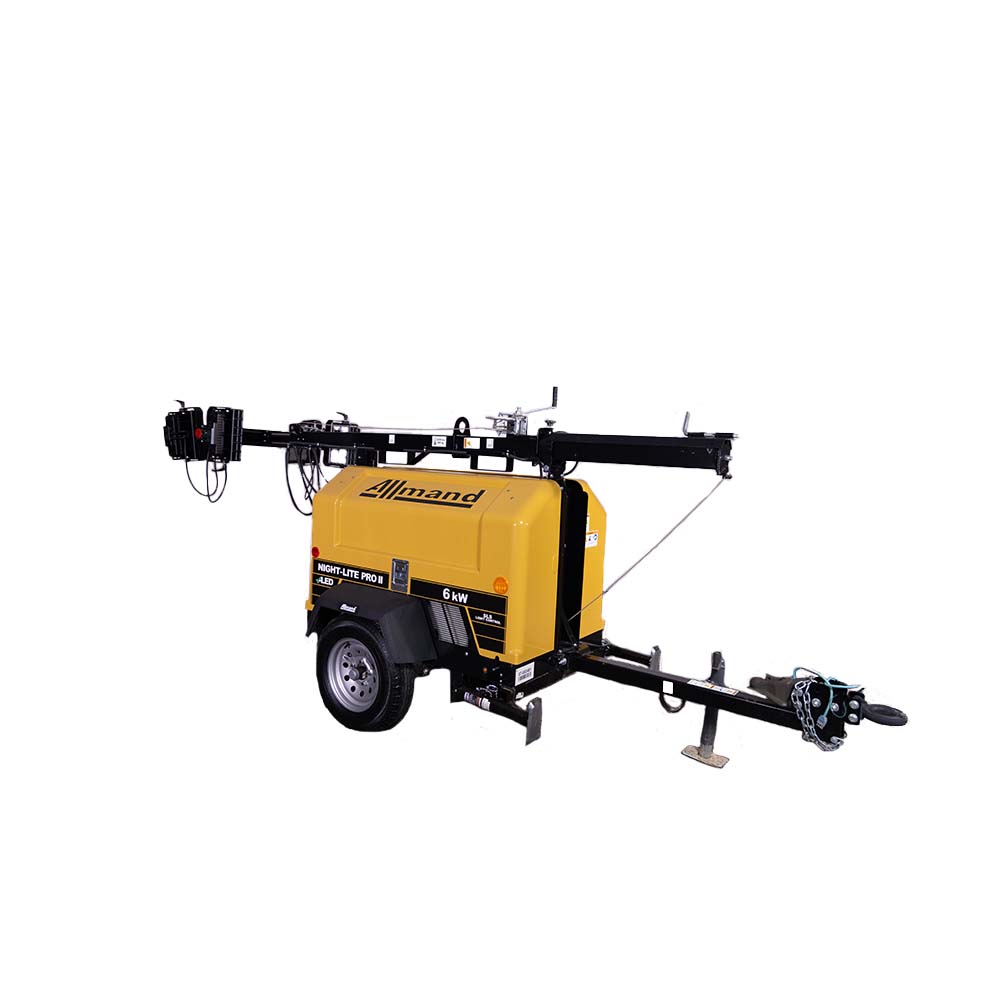

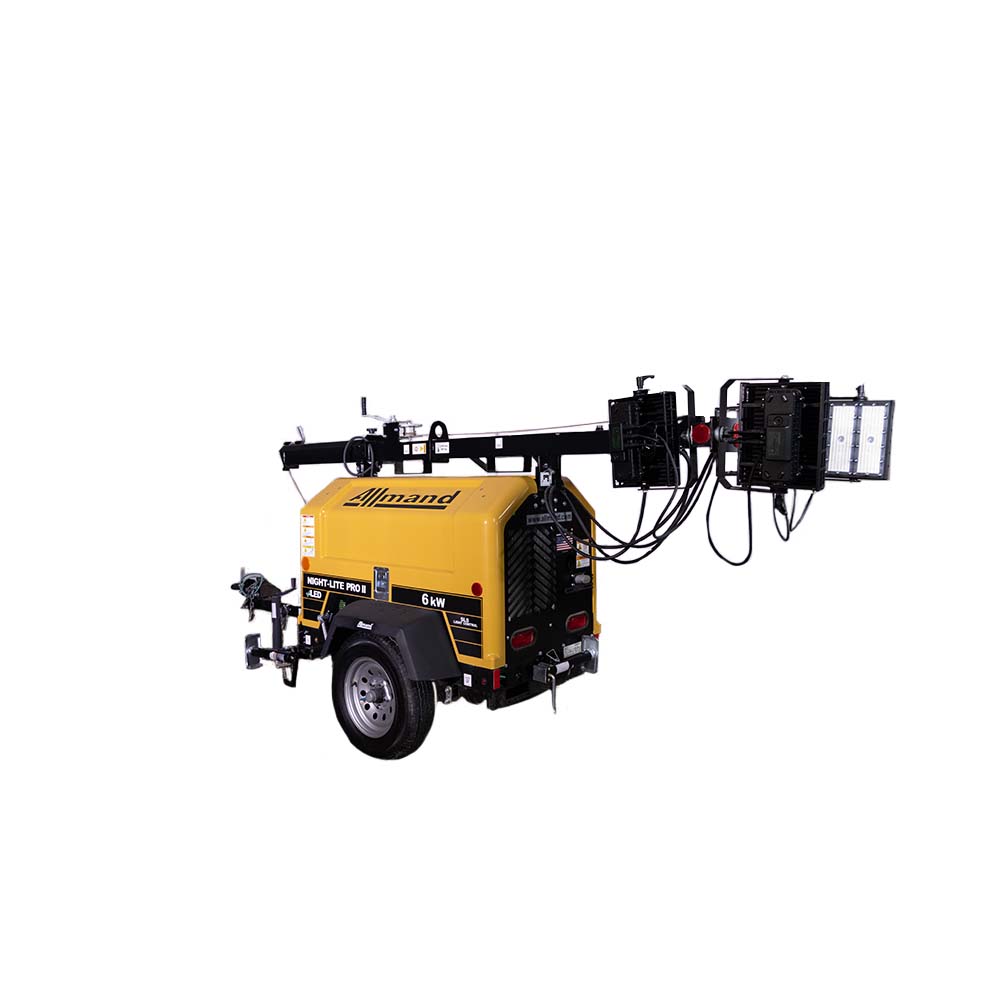

Night-Lite Pro II®

Night-Lite Pro II®

LD-Series

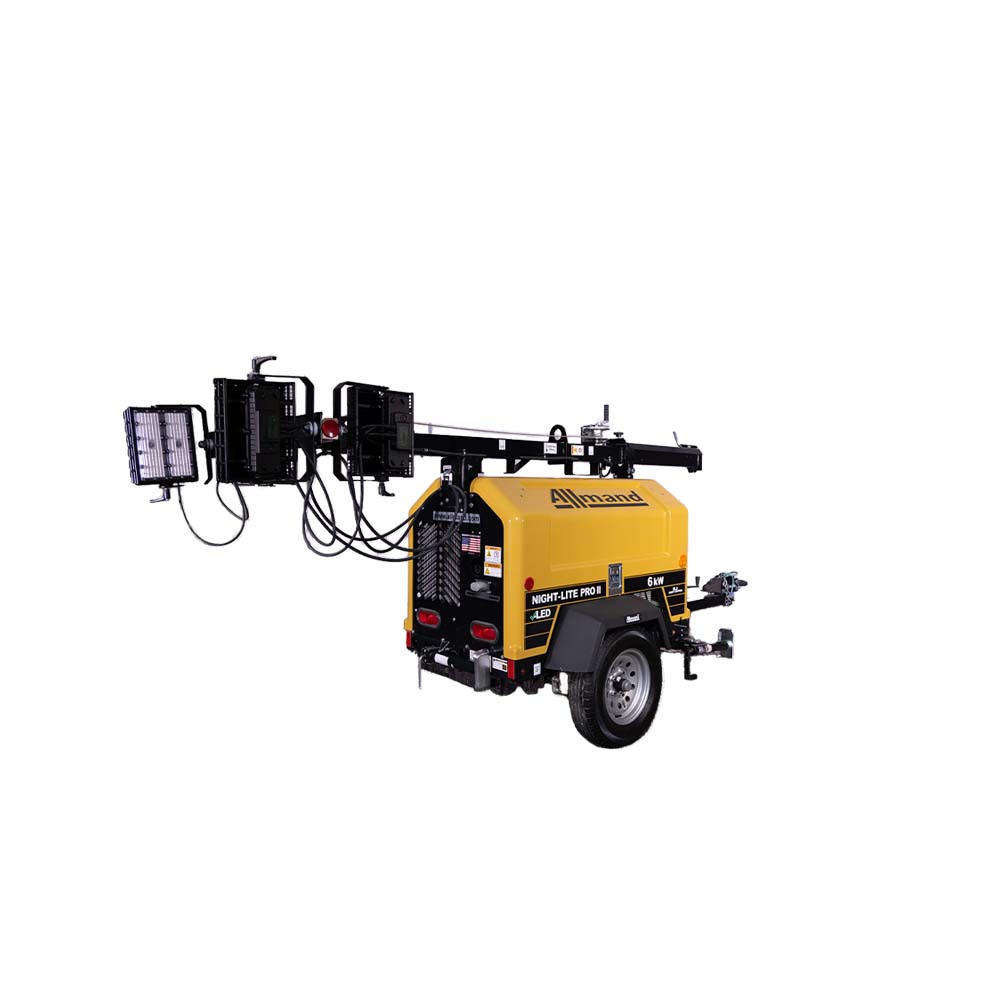

The Night-Lite Pro II® LD-Series™ provides up to 542,000 total lumens. The 30-gallon polyethylene fuel tank eliminates contamination from rust and corrosion to keep your light tower running longer. The Night-Lite Pro II® LD-Series™ is eco-friendly with an optional full fluid containment system that protects sensitive environments from inadvertent leaks and spills. The Night-Lite Pro II® LD-Series™ is great for building construction, infrastructure construction, mining, and oil & gas applications.

Download the product spec sheet or product sell sheet for additional information.

1,250

Metal Halide Wattage

542,000

Metal Halide Lumens (total)

Features

SLS™ Sequenced Light System™

provides control for the sequencing of the lights on and off and provides controlled engine shutdown for high coolant temperature and low engine oil pressure

Tower

Structure - Three-section tubular steel design
Actuation - Manual winch, standard
Tower rotation - 359° fixture rotation
Guide pads - Polyethylene self-lubricating

Trailer Lighting

Stop, turn, tail lights / side marker lights / illuminated license plate bracket.

Stabilizers

Four-point design, tongue jack, (2) retractable side outriggers at front of trailer, rear jack.

Axle

Tubular axle with elliptical leaf springs.

Forklift Pockets and Lifting Eye

Allow for easy loading and unloading of up to twelve units on a flatbed trailer.

30 Gallon Polyethylene Fuel Tank

Four-Way Flat Trailer Connector

Gull-Wing Style Doors

Reaction Injection Molded (RIM) doors providing strength and corrosion resistance with a lockable latch.

Fluid Containment System (FCS)

Holding up to 110% of all on-board fluids (with Arctic Package)

Actuated Manual Winch

Tires

ST175 / 80R13 load range 'C'

Specifications

At least one product must be displayed. Please select another option to remove this product

Engine Brand
Kubota
Engine Model
D1005
Engine Prime Power (kW)**
7
Fuel Capacity - Gal (L)
30 (113.6)
Horsepower (@ 1,800 RPM)****
11.6
Engine Tier
Tier 4 Final
Light Type - Metal Halide
(4) Metal Halide SHO-HD fixture
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (per lamp)
135,500
Metal Halide Lumens (total)
542,000
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
48.4
Shipping Weight lbs (kg)
1,720 (780.2)
Gross Vehicle Weight Rating (GVWR) lbs (kg)
2,200 (998)
Shipping
12 units on a 48' or 53' flatbed
Length Transport in (mm)
176.5 (4,483)
Length Operating in (mm)
173.3 (4,402)
Width Transport in (mm)
50.5 (1,283)
Width Operating in (mm)
98.3 (2,497)
Height* Mast Lowered in (mm)
5.8 (1.7)
Height* Mast Raised in (mm)
29.2 (8.9)
Engine Brand
Mitsubishi
Engine Model
L3E
Engine Prime Power (kW)**
6
Fuel Capacity - Gal (L)
30 (113.6)
Horsepower (@ 1,800 RPM)****
11.3
Engine Tier
Tier 4 Final
Light Type - Metal Halide
(4) Metal Halide SHO-HD fixture
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (per lamp)
135,500
Metal Halide Lumens (total)
542,000
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
50
Shipping Weight lbs (kg)
1,720 (780.2)
Gross Vehicle Weight Rating (GVWR) lbs (kg)
2200 (998)
Shipping
12 units on a 48' or 53' flatbed
Length Transport in (mm)
176.5 (4,483)
Length Operating in (mm)
173.3 (4,402)
Width Transport in (mm)
50.5 (1,283)
Width Operating in (mm)
98.3 (2,497)
Height* Mast Lowered in (mm)
5.8 (1.7)
Height* Mast Raised in (mm)
29.2 (8.9)
Engine Brand
Perkins
Engine Model
P1.1
Engine Prime Power (kW)**
8
Fuel Capacity - Gal (L)
30 (113.6)
Horsepower (@ 1,800 RPM)****
13.8
Engine Tier
Tier 4 Final
Light Type - Metal Halide
(4) Metal Halide SHO-HD fixture
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (per lamp)
135,500
Metal Halide Lumens (total)
542,000
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
50
Shipping Weight lbs (kg)
1,720 (780.2)
Gross Vehicle Weight Rating (GVWR) lbs (kg)
2,200 (998)
Shipping
12 units on a 48' or 53' flatbed
Length Transport in (mm)
176.5 (4,483)
Length Operating in (mm)
173.3 (4,402)
Width Transport in (mm)
50.5 (1,283)
Width Operating in (mm)
98.3 (2,497)
Height* Mast Lowered in (mm)
5.8 (1.7)
Height* Mast Raised in (mm)
29.2 (8.9)

* Balloon light only included in raised dimension – balloon light is removed for transportation.
** Prime generator electrical output per Allmand® testing.
*** Based on one hour run test full fuel tank consumption.
**** All power levels are stated gross horsepower as rated by the engines© manufacturers
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual or www.allmand.com website for complete warranty details.

Engine Brand
Mitsubishi
Kubota
Mitsubishi
Engine Model
L3E
D1005
L3E
Engine Prime Power (kW)**
6
7
6
Fuel Capacity - Gal (L)
30 (113.6)
30 (113.6)
30 (113.6)
Horsepower (@ 1,800 RPM)****
11.3
11.6
11.3
Engine Tier
Tier 4 Final
Tier 4 Final
Tier 4 Final
Light Type - Metal Halide
(4) Metal Halide SHO-HD fixture
(4) Metal Halide SHO-HD fixture
(4) Metal Halide SHO-HD fixture
Metal Halide Wattage (per lamp)
1,250
1,250
1,250
Metal Halide Lumens (per lamp)
135,500
135,500
135,500
Metal Halide Lumens (total)
542,000
542,000
542,000
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
50
48.4
50
Shipping Weight lbs (kg)
1,720 (780.2)
1,720 (780.2)
1,720 (780.2)
Gross Vehicle Weight Rating (GVWR) lbs (kg)
2200 (998)
2,200 (998)
2200 (998)
Shipping
12 units on a 48' or 53' flatbed
12 units on a 48' or 53' flatbed
12 units on a 48' or 53' flatbed
Length Transport in (mm)
176.5 (4,483)
176.5 (4,483)
176.5 (4,483)
Length Operating in (mm)
173.3 (4,402)
173.3 (4,402)
173.3 (4,402)
Width Transport in (mm)
50.5 (1,283)
50.5 (1,283)
50.5 (1,283)
Width Operating in (mm)
98.3 (2,497)
98.3 (2,497)
98.3 (2,497)
Height* Mast Lowered in (mm)
5.8 (1.7)
5.8 (1.7)
5.8 (1.7)
Height* Mast Raised in (mm)
29.2 (8.9)
29.2 (8.9)
29.2 (8.9)

* Balloon light only included in raised dimension – balloon light is removed for transportation.
** Prime generator electrical output per Allmand® testing.
*** Based on one hour run test full fuel tank consumption.
**** All power levels are stated gross horsepower as rated by the engines© manufacturers
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual or www.allmand.com website for complete warranty details.

Outlets

1 - 20A 120 V Duplex GFCI Receptacle (NEMA 5-20R)

1 - 30 A 240 V 3-Pole, 4-Wire Twist Lock Receptacle (NEMA L14-30R)

1 - 30 A 120 V 2-Pole, 3-Wire RV Receptacle (NEMA TT-30R)

Options

Cold Weather Package
 Heated fuel / water separator
Block Heater (120 VAC)



Arctic Package
(only available with Cold Weather Package)
– Heated fuel / water separator
– Radiator cover
– Low fuel shut-off system



Fluid Containment System (FCS) Holds up to 110% of all on-board fluids



LSC with E-Stop Package
(Not available with Mitsubishi Engine)
– LSC 2.1™ – Light Sequence Commander® automatically starts engine at sunset and shuts down engine at sunrise – programmable for user preferences.
– Emergency stop switch on exterior of machine



AirStar Package
– Balloon Light features the AirStar Flex diffused lighting system using Allmand's exclusive bulbs. This system provides reduced glare while still illuminating a large area.

Engine Air Intake Shut-Off Valve
(Not available with Mitsubishi)



Telematics Package
(Customer supplied – consult factory)



Custom Paint



Skid Mount Available on Standard SKUs



Reversible Coupler 2" Bull Dog Coupler with 3" Pintle

CSA (Metal Halide or LED)



Fluid Containment

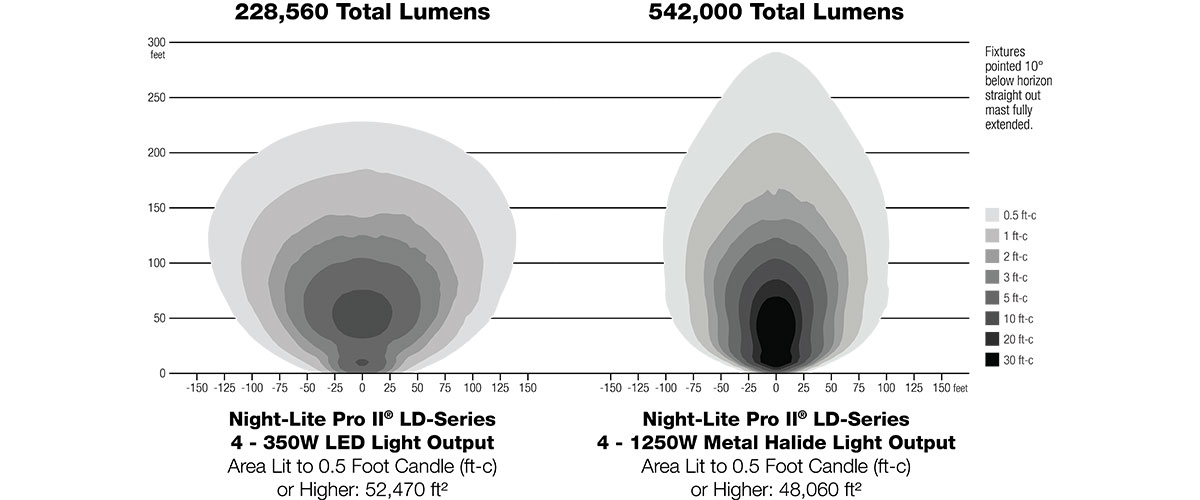

Light Coverage
