Night-Lite Pro II®

Night-Lite Pro II®

V-Series®

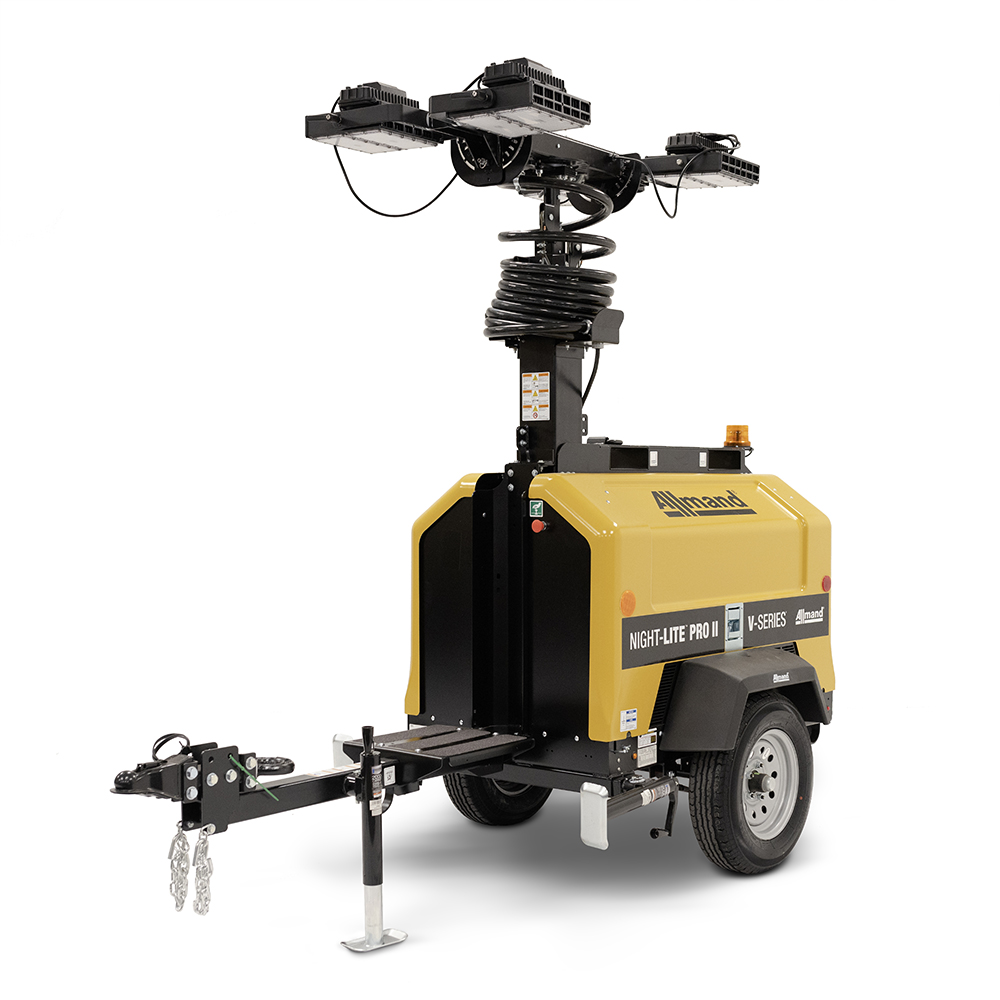

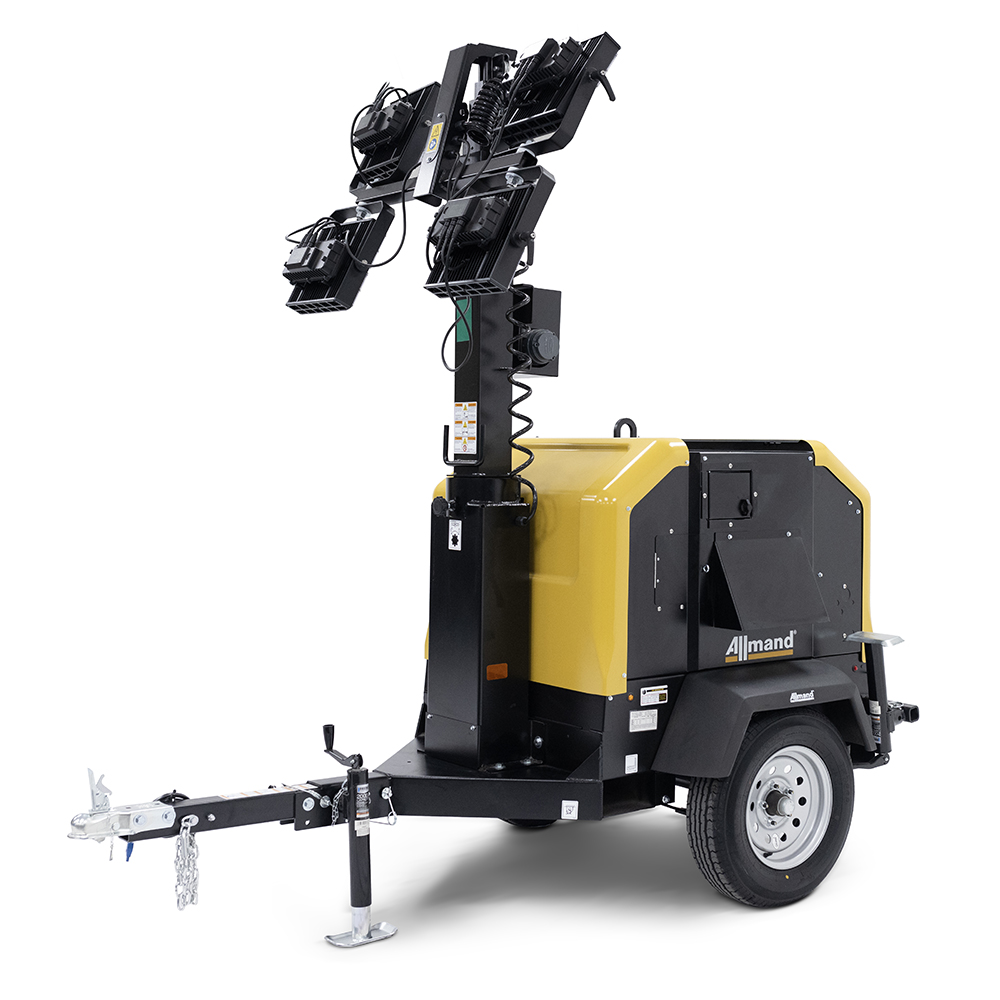

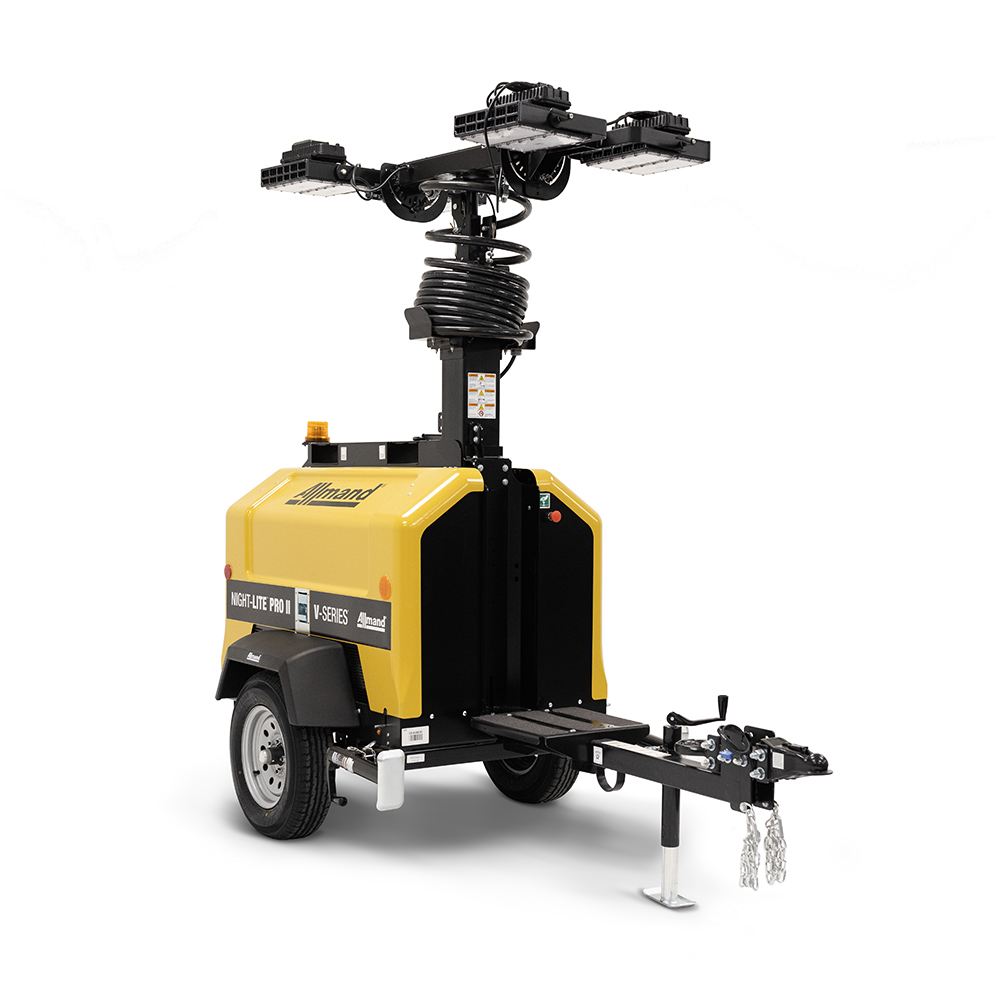

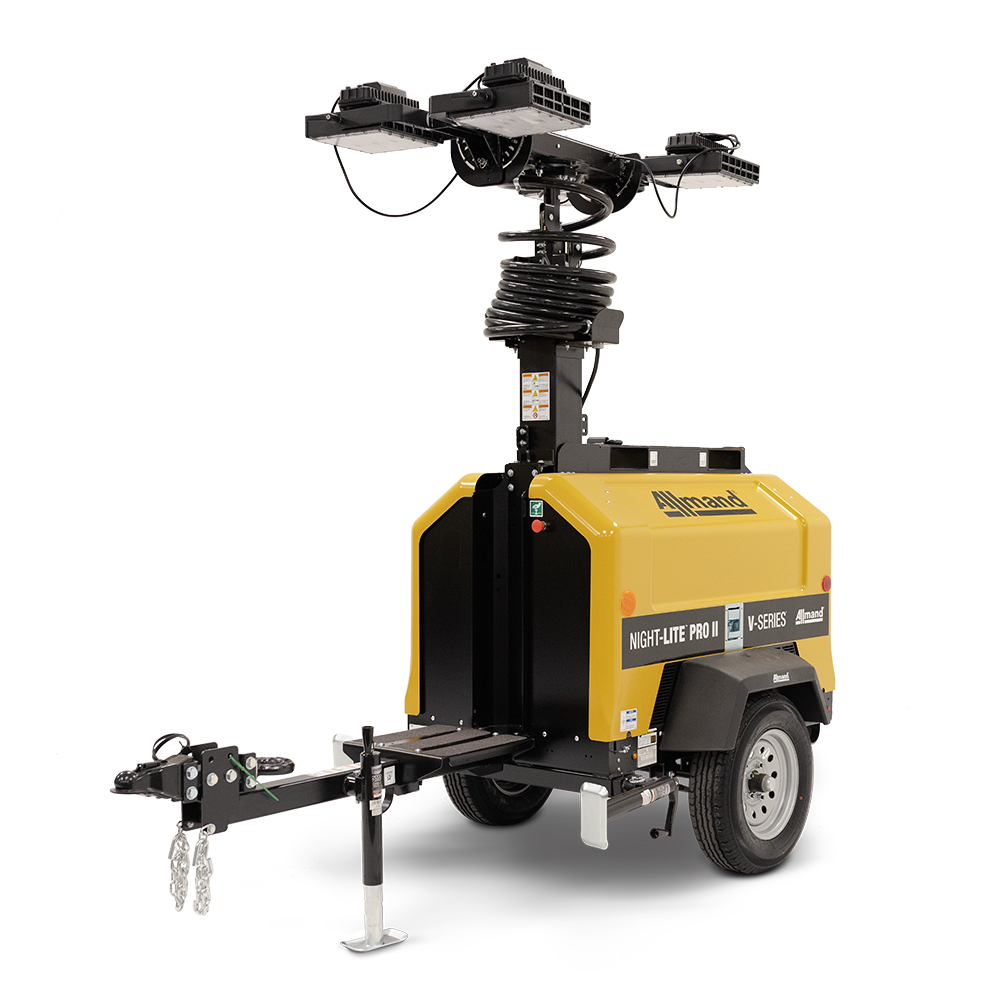

The Night-Lite Pro II® V-Series® features a vertical hydraulic mast with power cables encased in Nycoil flexible tubing to eliminate tangling and stretching of the tower wiring. Available in LED or metal halide, this fixture provides up to 542,000 total lumens. Maintain efficiency through working hours with our 30 gallon polyethylene fuel tank, allowing work to get done during the night.

Download the product spec sheet or product sell sheet for additional information.

1,250

Metal Halide Wattage

542,000

Metal Halide Lumens (total)

320

LED Wattage

154,000

LED Lumens (total)

Features

Tower

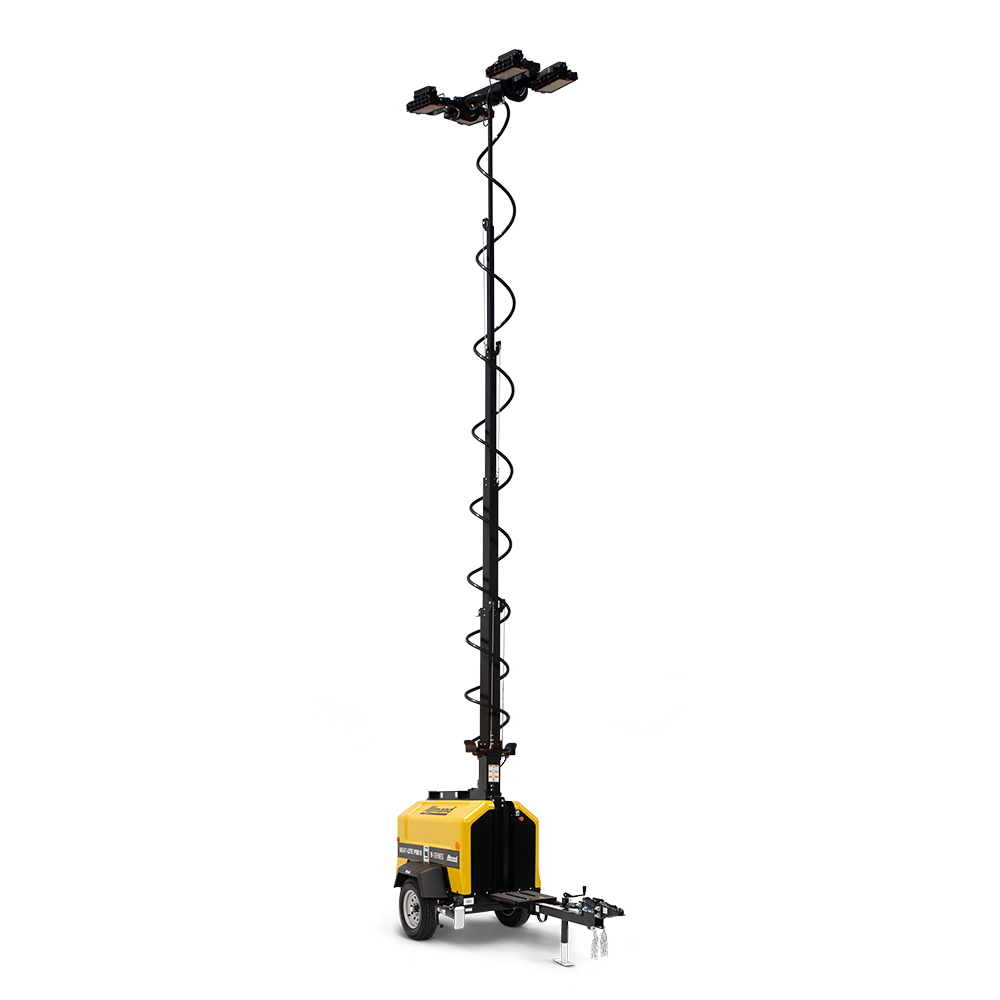

Structure - Six-section tubular steel design
Actuation - Hydraulic winch
Tower Rotation - 359° fixture rotation
Guide Pads - Polyethylene self-lubricating

Stabilizers

Four-point design, tongue jack, (2) retractable side outriggers at front of trailer, rear jack.

Gull-Wing Style Doors

Reaction Injection Molded (RIM) doors providing strength and corrosion resistance with a lockable latch.

Remote Engine Oil Drain

Easily accessible at rear of trailer

Sequenced Lighting System (SLS™)

Automatically delays engine shutdown to turn off lights and prevent the generator from shutting down while under load.

Fluid Containment System (FCS)

Holds up to 110% of all on-board fluids

Hour Meter

Forklift Pockets and Lifting Eye

Allow for easy loading and unloading of up to twelve units on a flatbed trailer.

Hydraulic Actuated Winch

Tires ST 175 80R13 Load Range C

Specifications

At least one product must be displayed. Please select another option to remove this product

Engine Brand
Caterpillar
Engine Model
C.1
Engine Prime Power (kW)**
8
Horsepower (@ 3,600 RPM)****
13.8
Engine Tier
Tier 4 Final
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (per lamp)
135,500
Metal Halide Lumens (total)
542000.0
Operating Time (hrs)*** (Using six 1,250 W metal halide light fixtures)
50
Light Type - LED
(4) Two LED, 5000°K color temperature
LED Wattage (per lamp)
320.0
LED Lumens (per lamp)
38,500
LED Lumens (total)
154000.0
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
78.9
Shipping Weight lbs (kg)
1,950 (884.5)
Gross Vehicle Weight Rating (GVWR) lbs (kg)
2,200 (998)
Shipping
16 units on a 48' Flatbed and 18 units on a 53' flatbed
Length Transport in (mm)
119.8 (3,042.9)
Width Transport in (mm)
50.5 (1,283)
Height* Mast Lowered in (mm)
8.3 (2.5 )
Height* Mast Raised in (mm)
26.7 (8.1)
FUEL CAPACITY
30 (113.6)

*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

Engine Brand
Kubota
Engine Model
D1005
Engine Prime Power (kW)**
7
Horsepower (@ 3,600 RPM)****
11.6
Engine Tier
Tier 4 Final
Light Type - Metal Halide
(4) Metal Halide SHO-HD fixture
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (per lamp)
135,500
Metal Halide Lumens (total)
542000.0
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
48.4
Light Type - LED
(4) Two LED, 5000° K color temperature
LED Wattage (per lamp)
320.0
LED Lumens (per lamp)
38500.0
LED Lumens (total)
154000.0
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
103.4
Shipping Weight lbs (kg)
1,950 (884.5)
Gross Vehicle Weight Rating (GVWR) lbs (kg)
2,200 (998)
Shipping
16 units on a 48' or 53' flatbed
Length Transport in (mm)
119.8 (3,042.9)
Length Operating in (mm)
120.3 (3,056)
Width Transport in (mm)
50.5 (1,283)
Width Operating in (mm)
100.6 (2,555)
Height* Mast Lowered in (mm)
8.3 (2.5)
Height* Mast Raised in (mm)
29.1 (8.9)
FUEL CAPACITY
30 (113.6)

*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

Engine Brand
Kubota
Engine Model
D1105
Engine Prime Power (kW)**
8
Horsepower (@ 3,600 RPM)****
11.6
Engine Tier
Tier 4 Final
Light Type - Metal Halide
(4) Metal Halide SHO-HD fixture
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (per lamp)
135,500
Metal Halide Lumens (total)
542000.0
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
47.6
Light Type - LED
(4) Two LED, 5000° K color temperature
LED Wattage (per lamp)
320.0
LED Lumens (per lamp)
38500.0
LED Lumens (total)
154000.0
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
83.3
Shipping Weight lbs (kg)
1,950 (884.5)
Gross Vehicle Weight Rating (GVWR) lbs (kg)
2,200 (998)
Shipping
16 units on a 48' or 53' flatbed
Length Transport in (mm)
119.8 (3,042.9)
Length Operating in (mm)
123.5 (3,137)
Width Transport in (mm)
50.5 (1,283)
Width Operating in (mm)
100.6 (2,555)
Height* Mast Lowered in (mm)
8.3 (2.5)
Height* Mast Raised in (mm)
29.1 (8.9)
FUEL CAPACITY
30 (113.6)
Power Rating
49

*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

Engine Brand
Caterpillar
Kubota
Kubota
Engine Model
C.1
D1005
D1105
Engine Prime Power (kW)**
8
7
8
Horsepower (@ 3,600 RPM)****
13.8
11.6
11.6
Engine Tier
Tier 4 Final
Tier 4 Final
Tier 4 Final
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
(4) Metal Halide SHO-HD fixture
(4) Metal Halide SHO-HD fixture
Metal Halide Wattage (per lamp)
1,250
1,250
1,250
Metal Halide Lumens (per lamp)
135,500
135,500
135,500
Metal Halide Lumens (total)
542000.0
542000.0
542000.0
Operating Time (hrs)*** (Using six 1,250 W metal halide light fixtures)
50
Light Type - LED
(4) Two LED, 5000°K color temperature
(4) Two LED, 5000° K color temperature
(4) Two LED, 5000° K color temperature
LED Wattage (per lamp)
320.0
320.0
320.0
LED Lumens (per lamp)
38,500
38500.0
38500.0
LED Lumens (total)
154000.0
154000.0
154000.0
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
78.9
103.4
83.3
Shipping Weight lbs (kg)
1,950 (884.5)
1,950 (884.5)
1,950 (884.5)
Gross Vehicle Weight Rating (GVWR) lbs (kg)
2,200 (998)
2,200 (998)
2,200 (998)
Shipping
16 units on a 48' Flatbed and 18 units on a 53' flatbed
16 units on a 48' or 53' flatbed
16 units on a 48' or 53' flatbed
Length Transport in (mm)
119.8 (3,042.9)
119.8 (3,042.9)
119.8 (3,042.9)
Width Transport in (mm)
50.5 (1,283)
50.5 (1,283)
50.5 (1,283)
Height* Mast Lowered in (mm)
8.3 (2.5 )
8.3 (2.5)
8.3 (2.5)
Height* Mast Raised in (mm)
26.7 (8.1)
29.1 (8.9)
29.1 (8.9)
FUEL CAPACITY
30 (113.6)
30 (113.6)
30 (113.6)
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
48.4
47.6
Length Operating in (mm)
120.3 (3,056)
123.5 (3,137)
Width Operating in (mm)
100.6 (2,555)
100.6 (2,555)
Power Rating
49

*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

Outlets

1 - 20A 120 V Duplex GFCI Receptacle (NEMA 5-20R)
1 - 30 A 240 V 3-Pole, 4-Wire Twist Lock Receptacle (NEMA L14-30R)
1 - 30 A 120 V 2-Pole, 3-Wire RV Receptacle (NEMA TT-30R)

Options

Cold Weather Package
– Heavy-duty battery 775 CCA @ 0° F
– Block heater (120 VAC)
– Arctic hydraulic fluid



LSC with E-Stop Package
(Not available with Mitsubishi Engine)
– LSC 2.1™ – Light Sequence Commander® automatically starts engine at sunset and shuts down engine at sunrise – programmable for user preferences.
– Emergency stop switch on exterior of machine



Arctic Package
(only available with Cold Weather Package)
– Heated fuel / water separator
– Radiator cover
– Low fuel shut-off system



AirStar Package
– Balloon Light features the AirStar Flex diffused lighting system using Allmand's exclusive bulbs. This system provides reduced glare while still illuminating a large area.



LED Package
–(4) LED light fixtures

CSA
(Metal halide or LED)



Telematics Package
(Customer supplied – consult factory)



Engine Aire Intake Shut-Off Valve
(Not Available with Mitsubishi)



Custom Paint



Skid Mount Available on Standard SKUs



Lockable Battery Disconnect



Reversible Coupler 2" Bulldog® coupler with 3" pintle

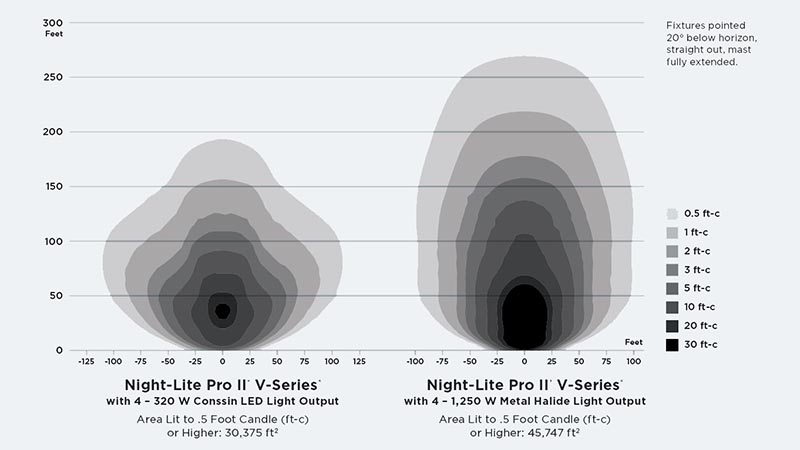

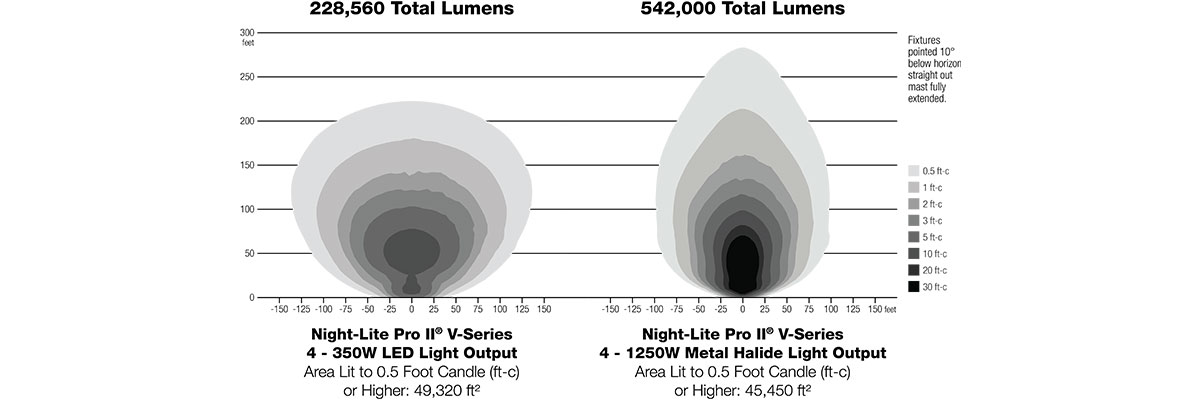

Light Coverage
