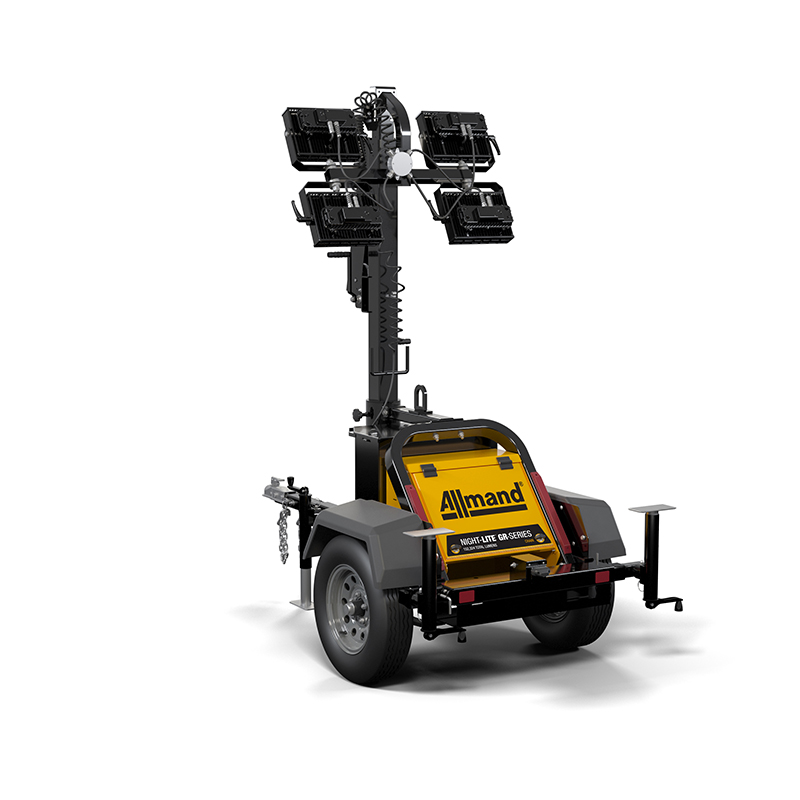

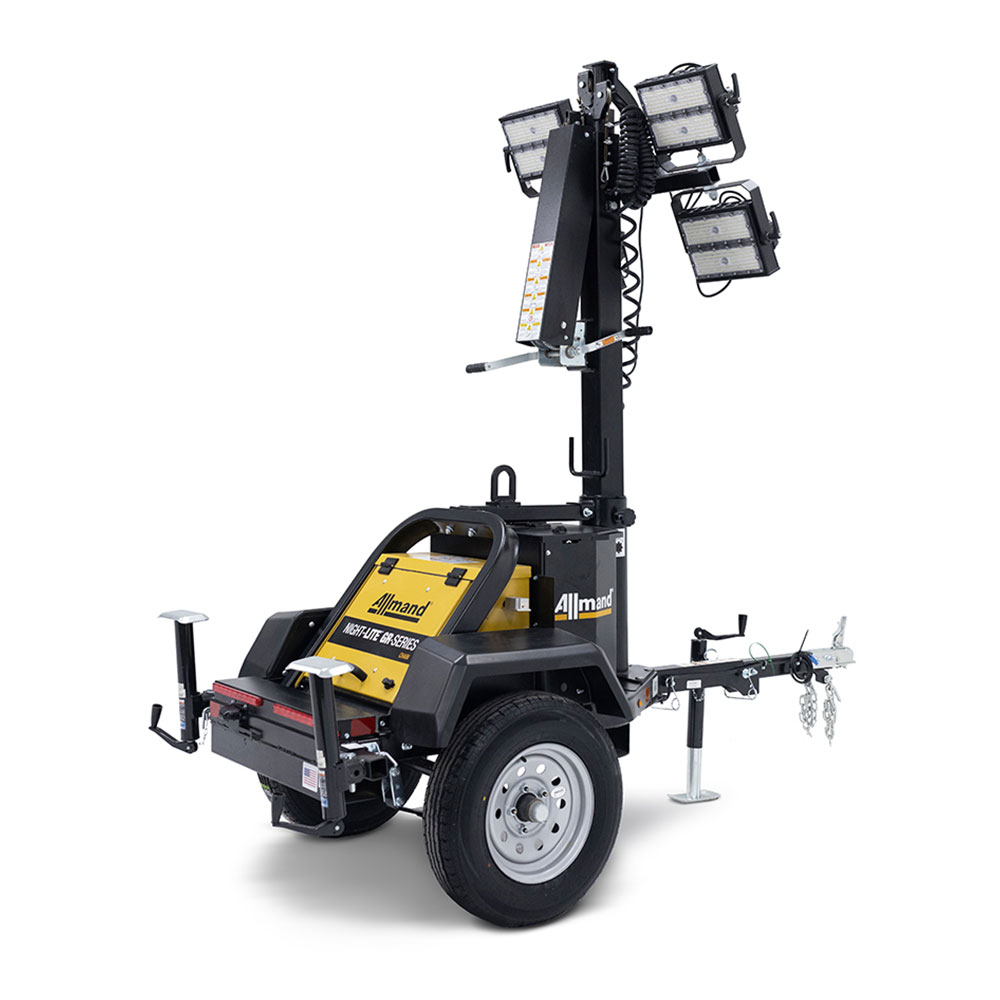

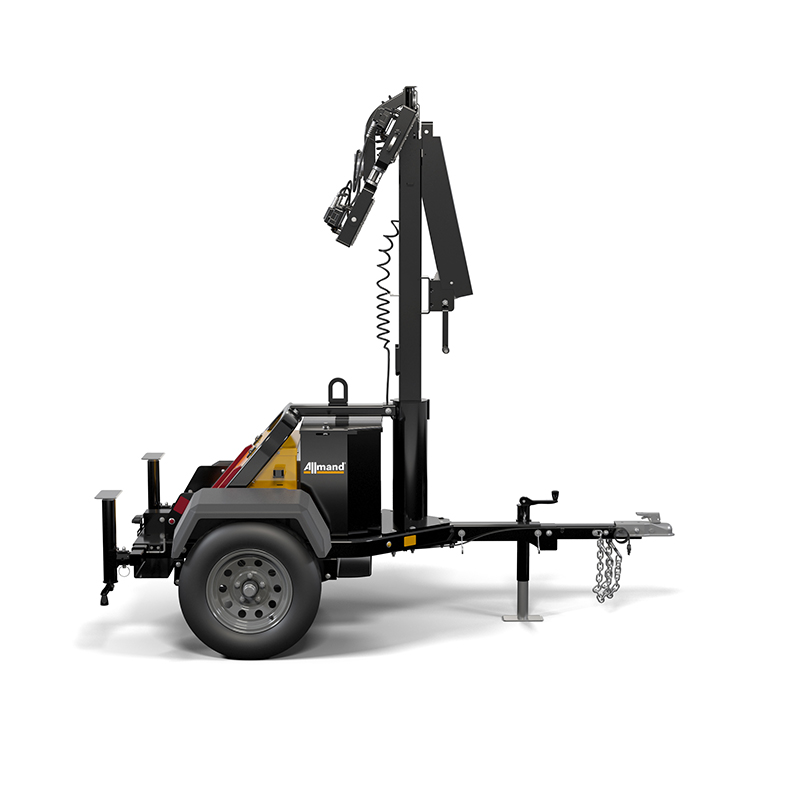

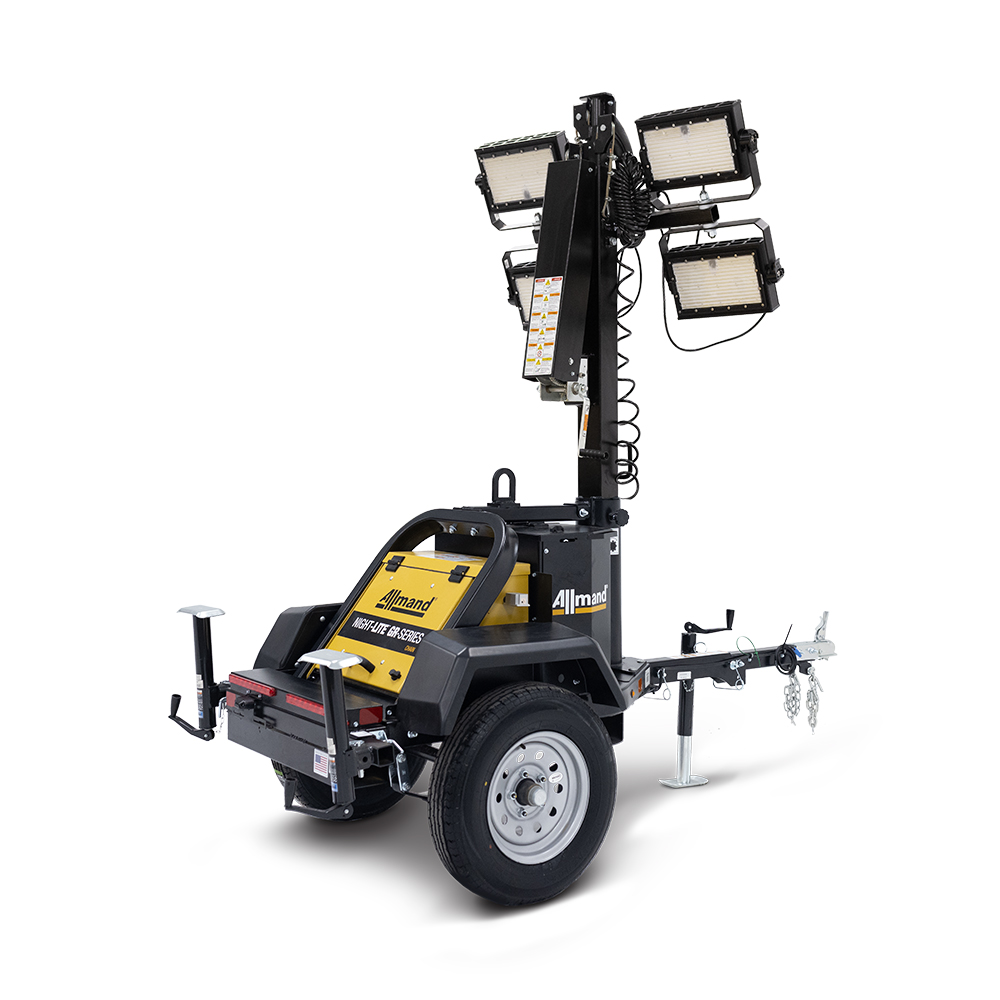

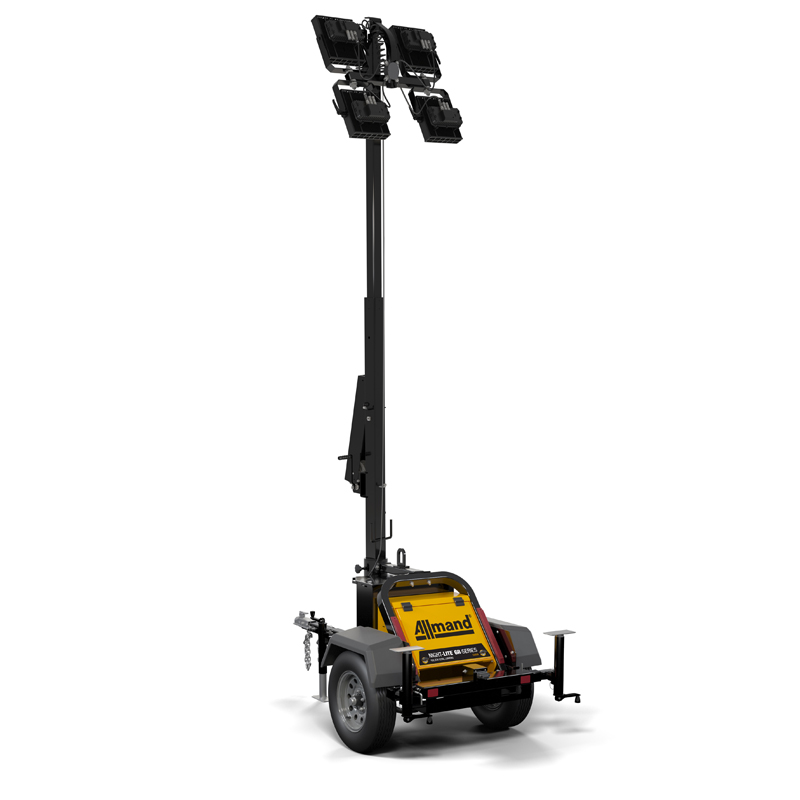

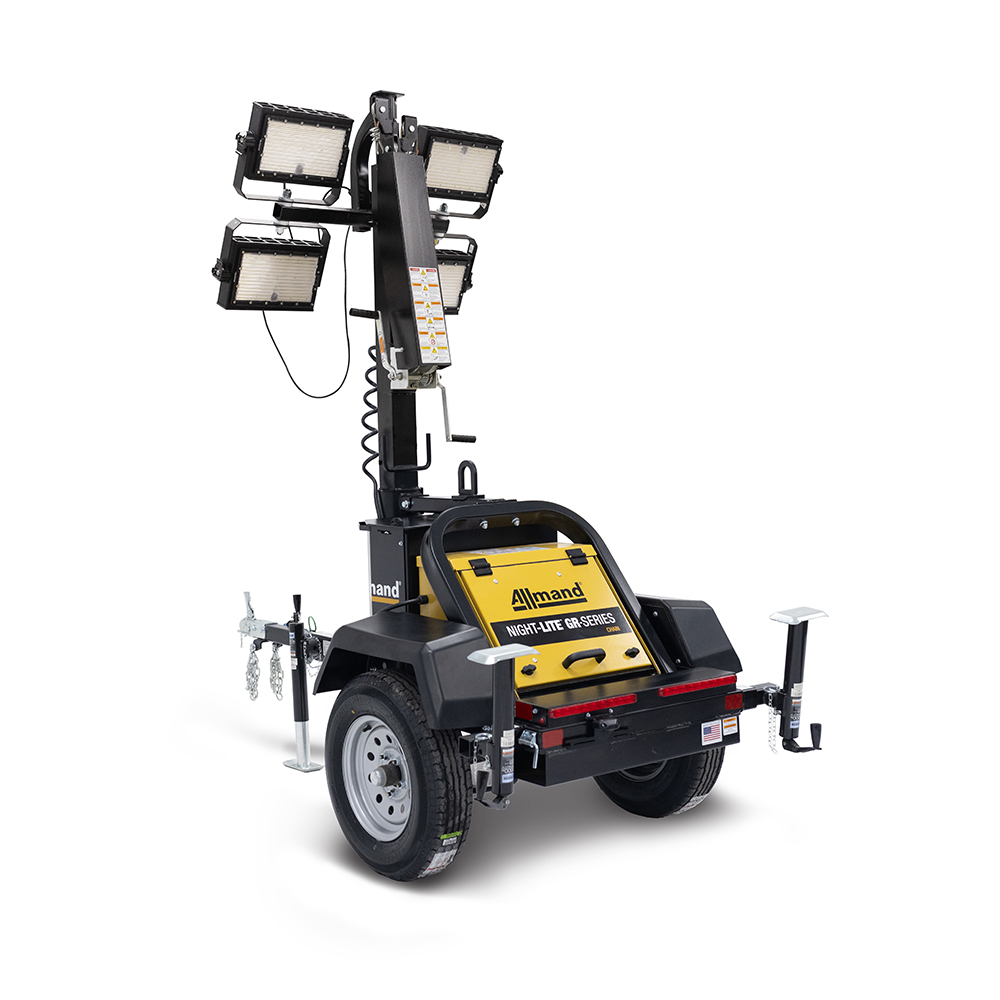

Night-Lite™ GR-Series Chain

Night-Lite™ GR-Series Chain

GR-Series

Simpler, lighter, and lower cost, the Night-Lite™ GR-Series Chain towable light towers are the most easily deployed and easy-to-maneuver units in its class. Flexibility in power is inherent with this unit allowing for any power source with 15 amp or 20 amp connections to illuminate a jobsite. To increase the impact of the Night-Lite™ GR-Series Chain light tower, the ability to daisy chain units is a built-in feature. Four LED light fixtures with 147,344 total lumens lighting will provide plenty of brightness for any space. This unit saves money immediately with the size capability to ship 20 units on a truck.

For a tutorial video and more product support, visit the Night-Lite™ GR-Series Chain operations page.

250W

SMD LED Lighting

152,324

Total Lumens

23 ft (7m)

Raised Tower Height

15A or 20A

Connector

Features

Vertical Tower

Structure - Four-section tubular steel design
Actuation - Dual handle manual winch, standard
Tower rotation - 355° fixture rotation
Guide pads - Polyethylene self-lubricating

Forklift Pockets and Lifting Eye

Allow for easy loading and unloading of up to twenty-two units on a 53' flatbed trailer.

Chaining Capability

Up to two units off a single power source

Stabilizers

Three-point design, tongue jack, (2) retractable side outriggers at rear of trailer.

Foldable Tongue

Takes up less space on the job-site and in your yard

Manual/Timer/Photocell Controls

Unit is equipped with a timer controller and a photocell for either manual, scheduled, or dawn to dust on/off functionality

Trailer Lighting

LED - Stop, turn, tail lights / side marker lights / illuminated license plate bracket.

Standard LED 4 Light Fixtures

250W high performance SMD style LED light fixtures.

Specifications

At least one product must be displayed. Please select another option to remove this product

LED Wattage (per lamp)
250
LED Lumens (per lamp)
38,081
LED Lumens (total)
152,324 - 4 Lights
Light Type - 250W LED (Standard)
SMD Style LED, 5000° K Color Temperature
Transport Height (Mast Lowered) - in (mm)
99 (2,502)
Operating Height (Mast Raised) - in (mm)
276 (7,010)
Transport Width - in (mm)
48 (1,245)
Operating Width (Outriggers Deployed) - in (mm)
94 (2,388)
Transport Length - in (mm)
77 (1,956)
Operating Length (Outriggers Deployed) - in (mm)
6.4 (1955.8)
Operating Tower Wind Speed Rating - MPH (km/h)
50 (80)
Trailer Weight - lbs (kg)
1,290 (585)
Trailer GVWR - lbs (kg)
1,500 (680)
Number of Units on 48 Flatbed
20
Number of Units on 53 Flatbed
22

Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

Outlets

Inlet (No Chain)

120V / 15A (NEMA 5-15R)



Inlet (Chain)

120V / 20A (NEMA L5-20P)

Outlet

120V / 20A (NEMA 5-20R) GFCI Duplex

Options

LED Diffuser Panels


CSA Certification


Coupler Options

  • Lunette Ring
  • Bulldog Hitch
  • Reversible Coupler Ball and Lunette Ring (no Bulldog)

Galvanized Tower



Custom Paint

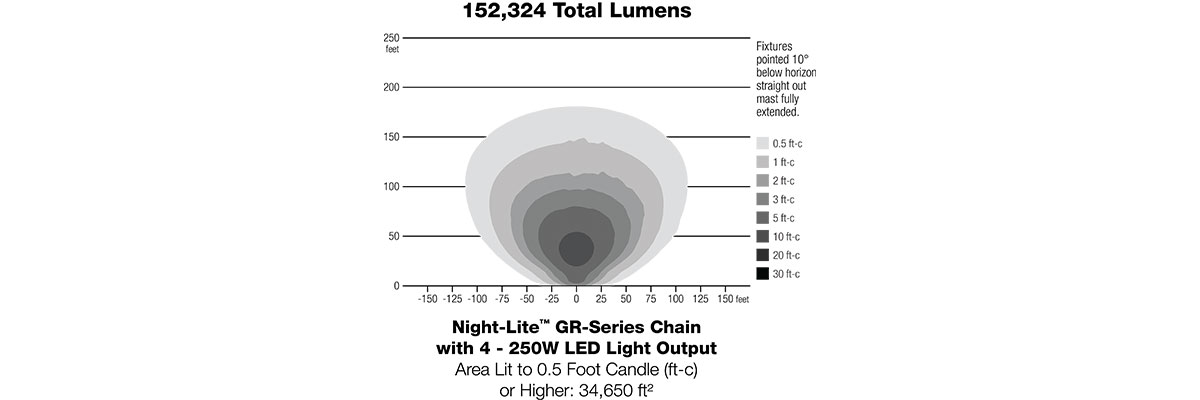

Light Coverage
