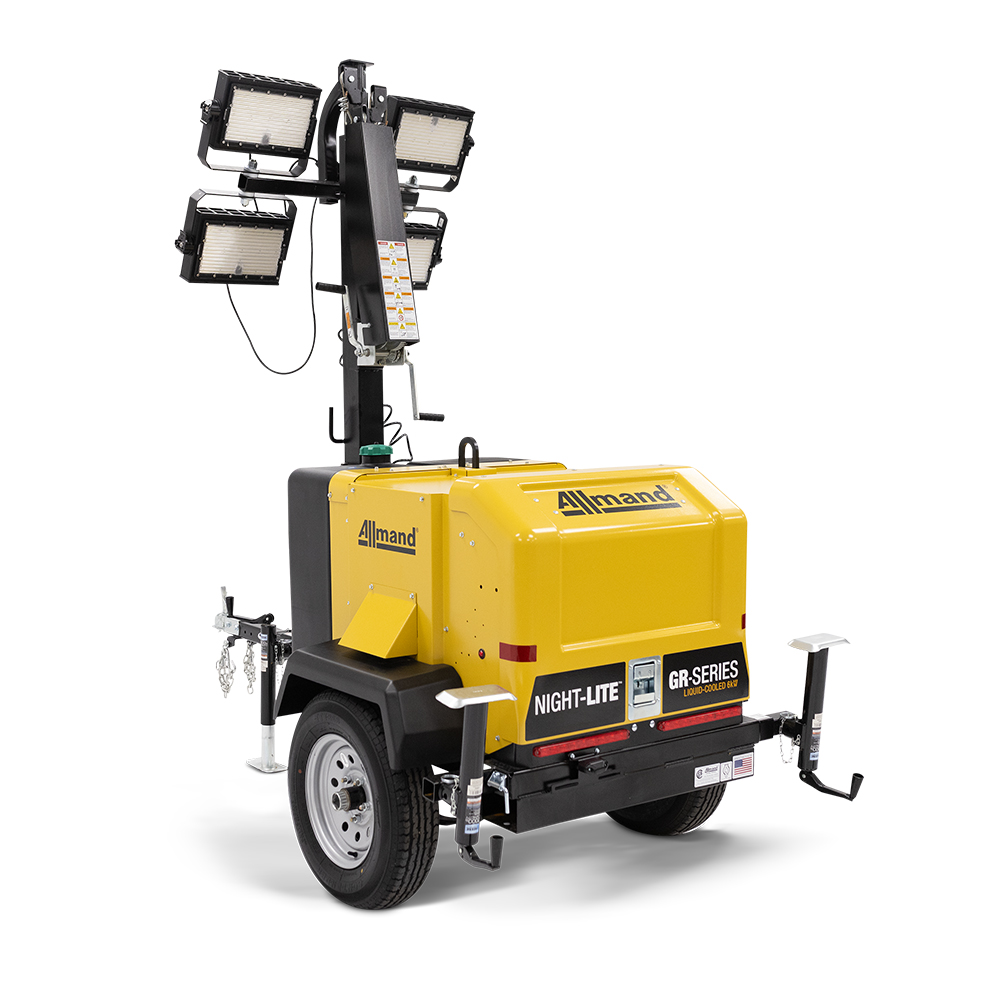

    Night-Lite™ GR-Series Liquid-Cooled 6kW

    NightLite GRSeries LiquidCooled 6kW

    Night-Lite™ GR-Series Liquid-Cooled 6kW

    GR-Series

    The Night-Lite™ GR-Series Liquid-Cooled 6kW light tower: bigger, brighter light and longer run times—so you get more done on the jobsite.

    • 63-gallon fuel tank: 195 to 215-hour run time with 350-watt lights
    • Four 350-watt LED fixtures produce 2,488 total lumens and 38,610 ft2 area at 0.5 ft-c: 19% more lumen output and 13,0102
    • Best-in-class 1,000-hour oil change interval: lower maintenance expenses.

    For a tutorial video and more product support, visit the Night-Lite™ GR-Series Liquid-Cooled 6kW operations page.

    350W

    SMD LED Lighting

    228,560

    Total Lumens

    Up to 214 Hour

    Operating Runtime

    6kW

    Prime Power
    Feature

    Features

    Vertical Tower

    Structure - Four-section tubular steel design
    Actuation - Dual handle manual winch, standard
    Tower rotation - 355° fixture rotation
    Guide pads - Polyethylene self-lubricating

    Forklift Pockets and Lifting Eye

    Allow for easy loading and unloading of up to twenty units on a 53' flatbed trailer.

    Fuel Tank

    63 gallon (238 liter) fuel tank extends operation.

    Stabilizers

    Three-point design, tongue jack, (2) retractable side outriggers at rear of trailer.

    Foldable Tongue

    Takes up less space on the job-site and in your yard.

    Deep Sea L401 Controller

    Engine start/stop operation, scheduling, voltage reading, fuel level reading, low fuel level shutdown, etc.

    Trailer Lighting

    LED - Stop, turn, tail lights / side marker lights / illuminated license plate bracket.

    Standard LED 4 Light Fixtures

    350W high performance SMD style LED light fixtures.

    Specifications

    At least one product must be displayed. Please select another option to remove this product

    Engine Brand
    Caterpillar / Perkins
    Engine Model
    1.1
    Output @ Rated Speed (1,800 RPM) - HP****
    13.8
    Engine Prime Power (kW)**
    6
    Engine Tier
    Tier 4 Final
    Fuel Capacity - gal (L)
    63 (238)
    Light Type - 350W LED (Standard)
    SMD Style LED, 5000° K Color Temperature
    LED Wattage (per lamp)
    350
    LED Lumens (per lamp)
    57,140
    LED Lumens (total)
    228,560 - 4 Lights
    Operating Time - using four 350W LED light fixtures (hrs)***
    195
    Light Type - 250W LED (Optional)
    SMD Style LED, 5000° K Color Temperature
    LED Wattage (per 250W lamp)
    250
    LED Lumens (per 250W lamp)
    38,081
    LED Lumens (total - 4-250W)
    152,324 - 4 Lights
    Operating Time - using four 250W LED light fixtures (hrs)***
    N/A
    Transport Height (Mast Lowered) - in (mm)
    99 (2,502)
    Operating Height (Mast Raised) - in (mm)
    276 (7,010)
    Transport Width - in (mm)
    51 (1,283)
    Operating Width (Outriggers Deployed) - in (mm)
    98 (2,489)
    Transport Length - in (mm)
    107 (2,724)
    Operating Tower Wind Speed Rating - MPH (km/h)
    65 (105)
    Trailer Weight - lbs (kg)
    1,790 (812)
    Trailer GVWR - lbs (kg)
    2,000 (907)
    Number of Units on 48 Flatbed
    18
    Number of Units on 53 Flatbed
    20

    *Prime generator electrical output per Allmand® testing.
    **Based on one hour run test full fuel tank consumption.
    ***All power levels are stated gross horsepower as rated by the engines© manufacturers.
    †Based on 5 yrs of service and industry residual value.
    Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice.
    See operator’s manual or www.allmand.com website for complete warranty details.

    Engine Brand
    Kubota
    Engine Model
    D1005
    Output @ Rated Speed (1,800 RPM) - HP****
    11.6
    Engine Prime Power (kW)**
    6
    Engine Tier
    Tier 4 Final
    Fuel Capacity - gal (L)
    63 (238)
    Light Type - 350W LED (Standard)
    SMD Style LED, 5000° K Color Temperature
    LED Wattage (per lamp)
    350
    LED Lumens (per lamp)
    57,140
    LED Lumens (total)
    228,560 - 4 Lights
    Operating Time - using four 350W LED light fixtures (hrs)***
    214
    Light Type - 250W LED (Optional)
    SMD Style LED, 5000° K Color Temperature
    LED Wattage (per 250W lamp)
    250
    LED Lumens (per 250W lamp)
    38,081
    LED Lumens (total - 4-250W)
    152,324 - 4 Lights
    Operating Time - using four 250W LED light fixtures (hrs)***
    N/A
    Transport Height (Mast Lowered) - in (mm)
    99 (2,502)
    Operating Height (Mast Raised) - in (mm)
    276 (7,010)
    Transport Width - in (mm)
    51 (1,283)
    Operating Width (Outriggers Deployed) - in (mm)
    98 (2,489)
    Transport Length - in (mm)
    107 (2,724)
    Operating Tower Wind Speed Rating - MPH (km/h)
    65 (105)
    Trailer Weight - lbs (kg)
    1,790 (812)
    Trailer GVWR - lbs (kg)
    2,000 (907)
    Number of Units on 48 Flatbed
    18
    Number of Units on 53 Flatbed
    20

    *Prime generator electrical output per Allmand® testing.
    **Based on one hour run test full fuel tank consumption.
    ***All power levels are stated gross horsepower as rated by the engines© manufacturers.
    †Based on 5 yrs of service and industry residual value.
    Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice.
    See operator’s manual or www.allmand.com website for complete warranty details.

    Engine Brand
    Caterpillar / Perkins
    Kubota
    Engine Model
    1.1
    D1005
    Output @ Rated Speed (1,800 RPM) - HP****
    13.8
    11.6
    Engine Prime Power (kW)**
    6
    6
    Engine Tier
    Tier 4 Final
    Tier 4 Final
    Fuel Capacity - gal (L)
    63 (238)
    63 (238)
    Light Type - 350W LED (Standard)
    SMD Style LED, 5000° K Color Temperature
    SMD Style LED, 5000° K Color Temperature
    LED Wattage (per lamp)
    350
    350
    LED Lumens (per lamp)
    57,140
    57,140
    LED Lumens (total)
    228,560 - 4 Lights
    228,560 - 4 Lights
    Operating Time - using four 350W LED light fixtures (hrs)***
    195
    214
    Light Type - 250W LED (Optional)
    SMD Style LED, 5000° K Color Temperature
    SMD Style LED, 5000° K Color Temperature
    LED Wattage (per 250W lamp)
    250
    250
    LED Lumens (per 250W lamp)
    38,081
    38,081
    LED Lumens (total - 4-250W)
    152,324 - 4 Lights
    152,324 - 4 Lights
    Operating Time - using four 250W LED light fixtures (hrs)***
    N/A
    N/A
    Transport Height (Mast Lowered) - in (mm)
    99 (2,502)
    99 (2,502)
    Operating Height (Mast Raised) - in (mm)
    276 (7,010)
    276 (7,010)
    Transport Width - in (mm)
    51 (1,283)
    51 (1,283)
    Operating Width (Outriggers Deployed) - in (mm)
    98 (2,489)
    98 (2,489)
    Transport Length - in (mm)
    107 (2,724)
    107 (2,724)
    Operating Tower Wind Speed Rating - MPH (km/h)
    65 (105)
    65 (105)
    Trailer Weight - lbs (kg)
    1,790 (812)
    1,790 (812)
    Trailer GVWR - lbs (kg)
    2,000 (907)
    2,000 (907)
    Number of Units on 48 Flatbed
    18
    18
    Number of Units on 53 Flatbed
    20
    20

    *Prime generator electrical output per Allmand® testing.
    **Based on one hour run test full fuel tank consumption.
    ***All power levels are stated gross horsepower as rated by the engines© manufacturers.
    †Based on 5 yrs of service and industry residual value.
    Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice.
    See operator’s manual or www.allmand.com website for complete warranty details.

    Options
