Night-Lite™ GR-Series Air Cooled

Click and drag image to rotate.

Night-Lite™ GR-Series Air Cooled

GR-Series

The Night-Lite™ GR-Series Air Cooled light tower is the compact workhorse any job site needs. The air-cooled Yanmar diesel engine results in ample power for the LED fixtures, and the 48-gallon fuel tank, provides up to 257 hours of run time with 750-hour oil change intervals. This unit features four LED fixtures with 204,488 total lumens and 38,610 ft2 area at 0.5 ft-c, resulting in a 19% increase in lumen output and 19,084 ft2 additional area of light, when compared to the leading competitor! The Night-Lite TM GR-Series Air Cooled light tower provides plenty of light for any space working longer, bigger and brighter so you can be out on a job site getting more work done.

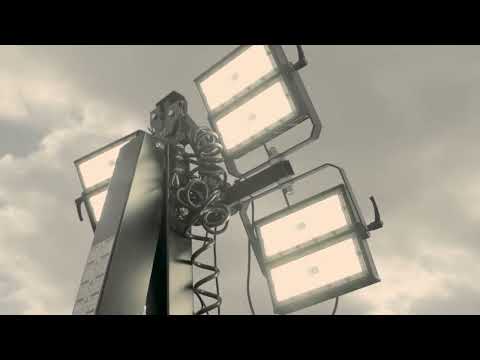

For a tutorial video and more product support, visit the Night-Lite™ GR-Series Air Cooled operations page.

Click and drag image to rotate.

Features

Mast

Flexible lighting with a vertical mast extending to 23 feet

Deep Sea L401 Controller

Engine start/stop operation, scheduling, voltage reading, fuel level reading, low fuel level shutdown, etc.

Compact Design

Fit 20 units on a 48 ft flatbed, 22 units on a 53 ft flatbed, more units for the same shipping cost

Heavy-duty Leveling Jacks

Vertical Tower

Structure - Four-section tubular steel design
Actuation - Dual handle manual winch, standard
Tower rotation - 355° fixture rotation
Guide pads - Polyethylene self-lubricating

Controls

Simple, easy to use

Easy Access

Wide area rear door for ease of access maintenance

CSA Approved

SMD Style LEDs

Forklift Pockets

Easily load and unload equipment

Lifting Eye

359 degree rotation

Increase flexibility in light spread

Standard Trailer Coupler 2” ball

Stabilizers

Three-point design, tongue jack, (2) retractable side outriggers at rear of trailer.

Service Interval

750 hour oil change interval

Fuel Tank

48-gallon fuel tank extends operation

Up to 257 hour run time

Air-cooled engine

Operating Temperatures

Of -20 degrees Fahrenheit to 120 degrees Fahrenheit

12% better Total Cost of ownership†

Than a leading competitor

Welded Steel Frame with Lockable Door

(4) LED Light Fixtures 350W

Each 51,112 per lamp, 204,488 total

(4) LED Light Fixtures 250W

Each 38,081 per Lamp, 152,324 Total

Specifications

Engine Brand

Yanmar

Output @ Rated Speed (1,800 RPM) - HP****

5.8

Engine Prime Power (kW)**

3.0

Engine Tier

Tier 4 Final

Fuel Capacity - gal (L)

48 (181.7)

LED Wattage (per 250W lamp)

250 W

LED Lumens (per 250W lamp)

38,081

LED Lumens (total - 4-250W)

152,324

Operating Time - using four 250W LED light fixtures (hrs)***

257

Transport Height (Mast Lowered) - in (mm)

8.2 (2489.2)

Operating Width (Outriggers Deployed) - in (mm)

4 (1244.6)

Operating Length (Outriggers Deployed) - in (mm)

6.4ft (1955.8mm)

Trailer Weight - lbs (kg)

1000 (453.60)

Trailer GVWR - lbs (kg)

1750 (793.78)

Model

L70W

*Prime generator electrical output per Allmand® testing.
** Based on one hour run test full fuel tank consumption.
*** All power levels are stated gross horsepower as rated by the engines© manufacturers.
_{†Based on 5 yrs of service and industry residual value
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.}

Options

(4) LED Light Fixtures 250W

Skid Mount

Custom Paint
