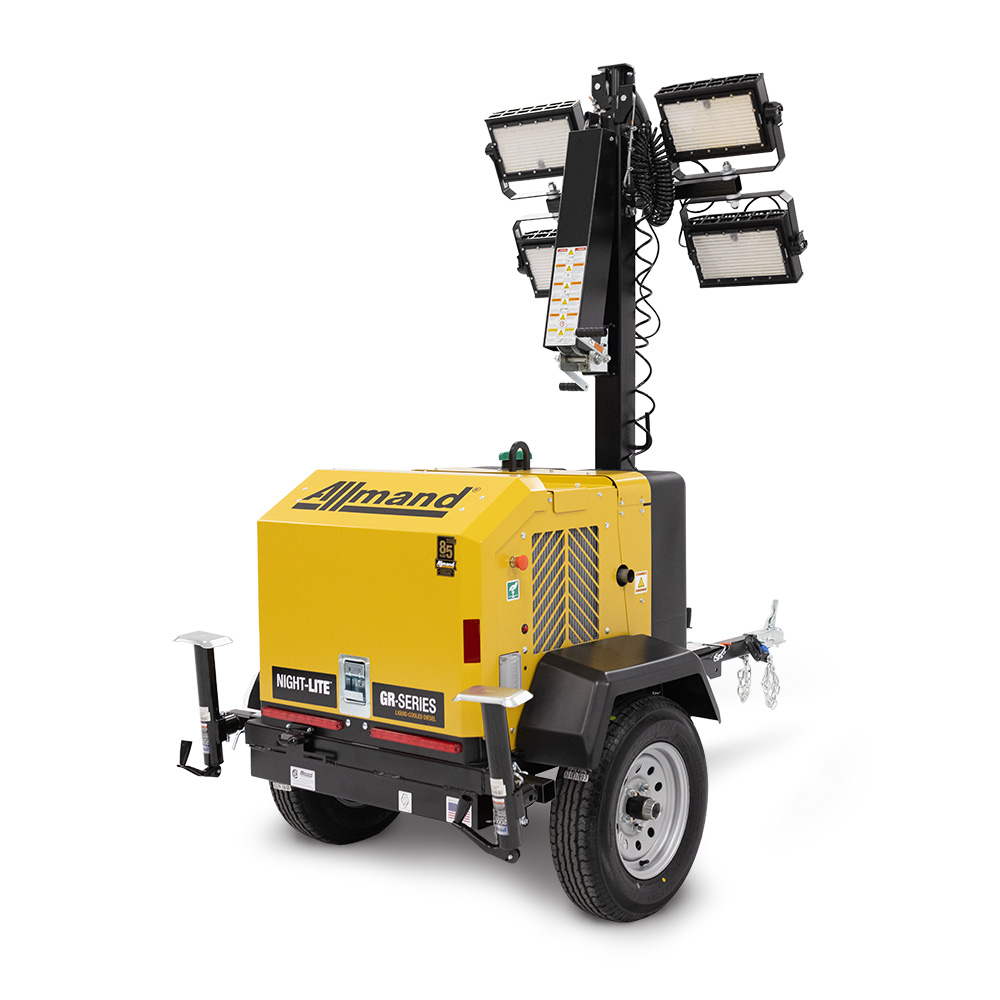

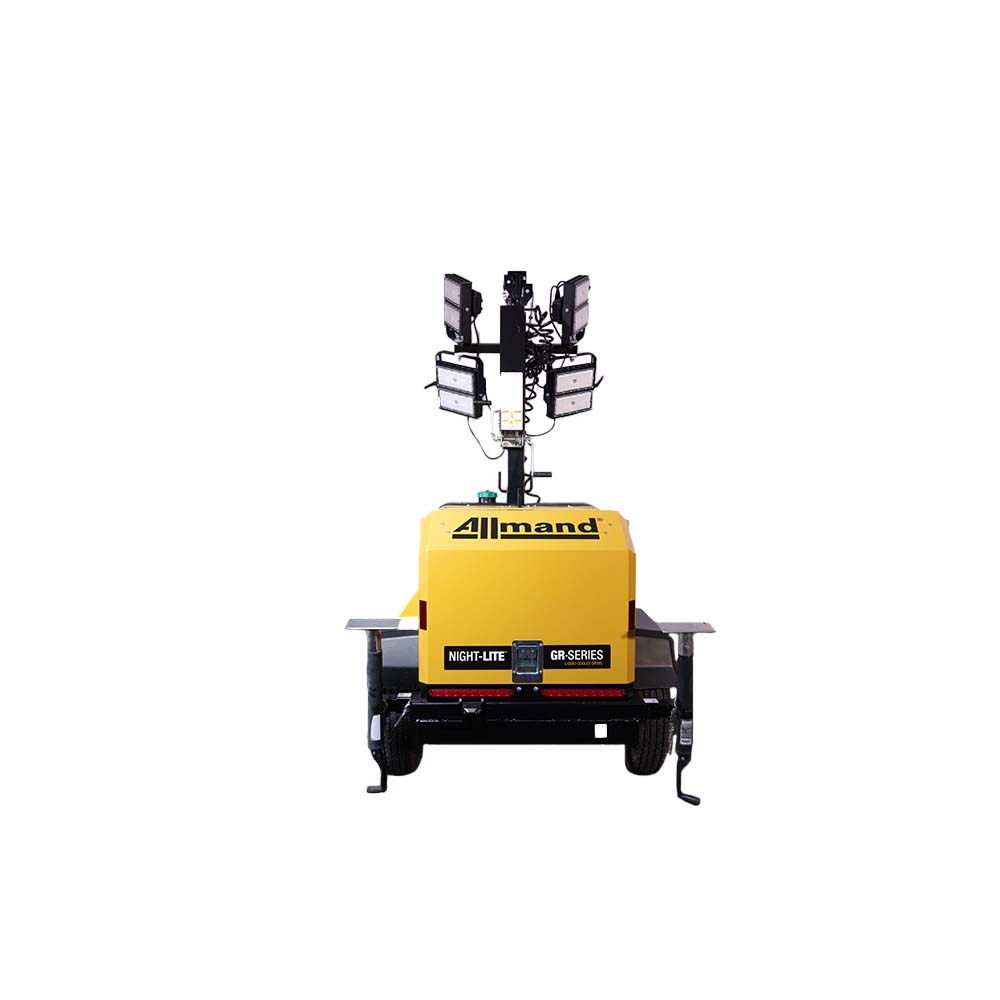

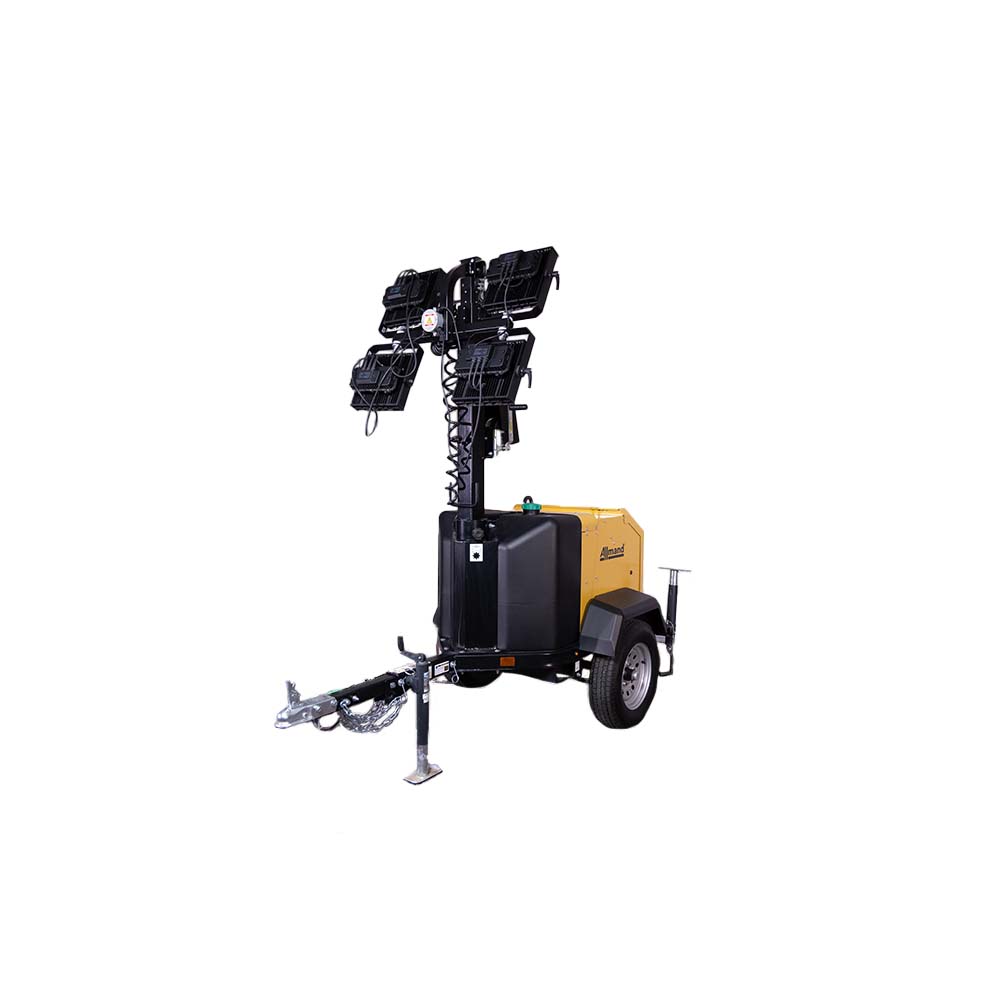

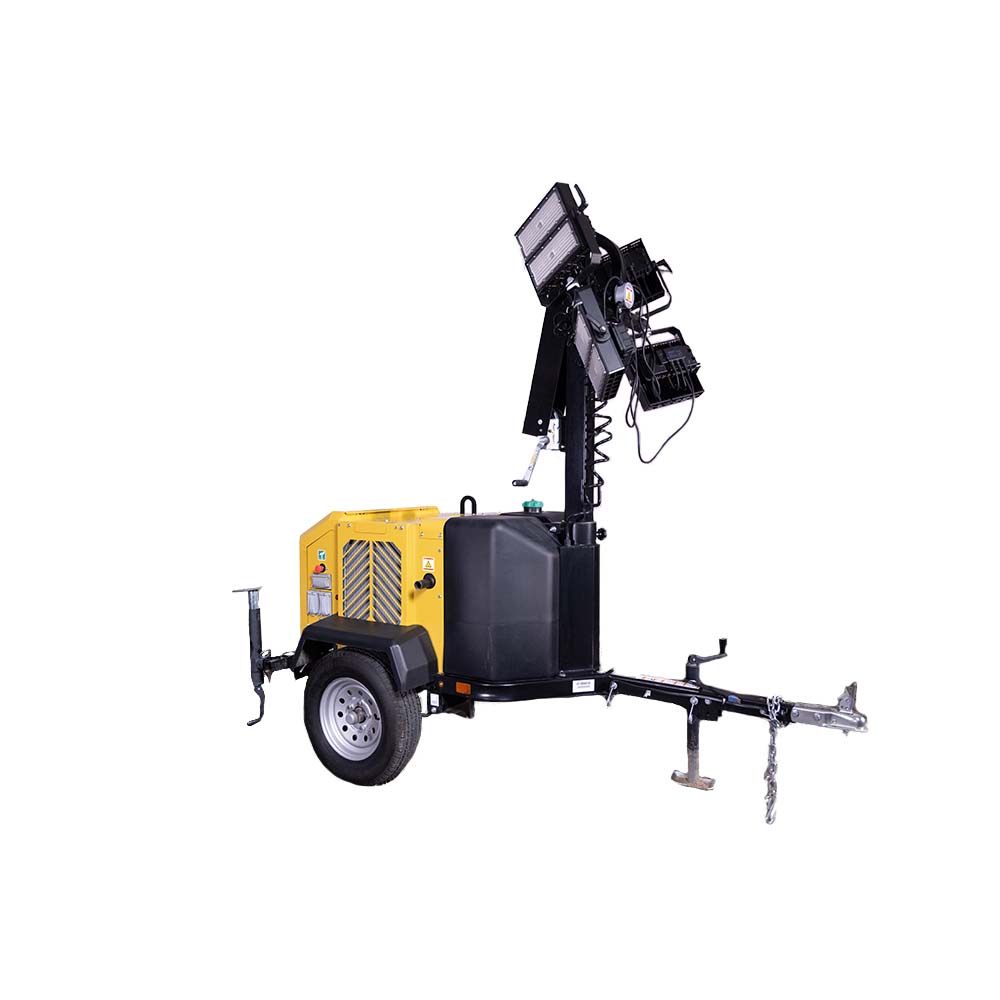

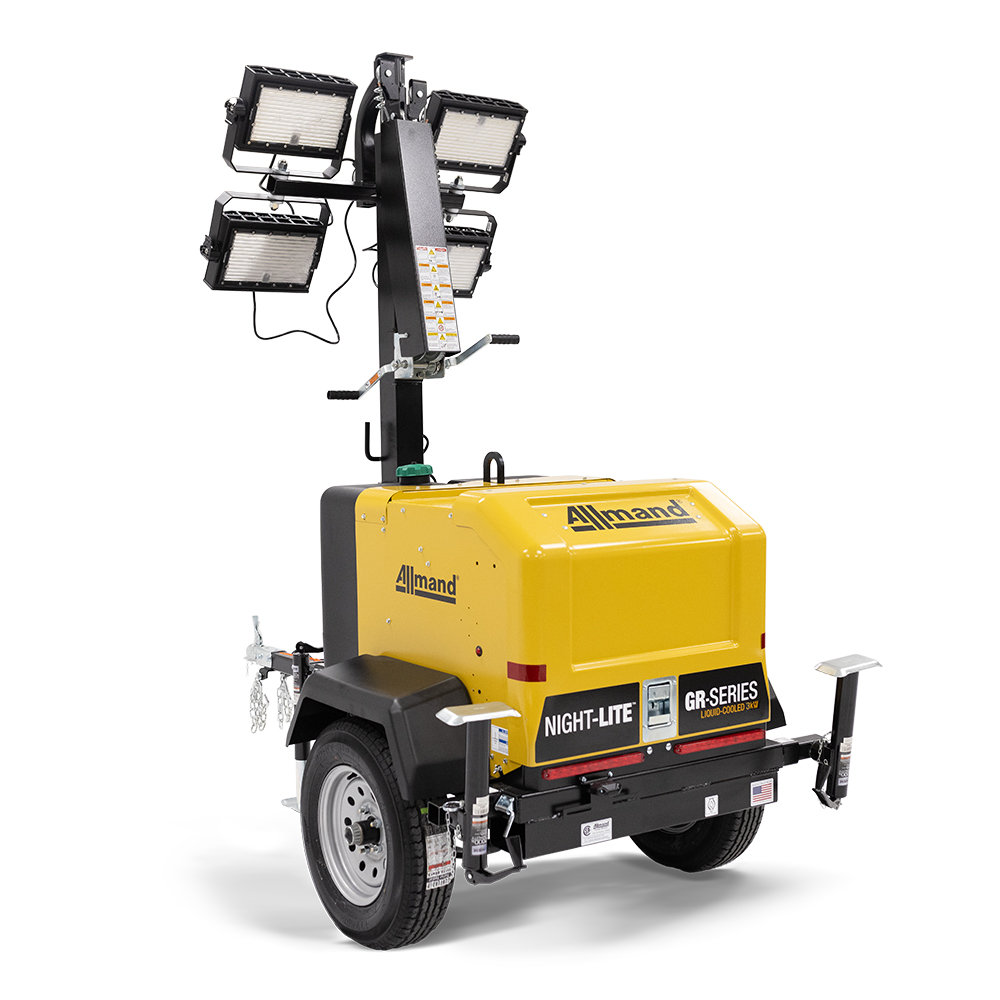

Night-Lite™ GR-Series Liquid-Cooled 3kW

Click and drag image to rotate.

Night-Lite™ GR-Series Liquid-Cooled 3kW

GR-Series

The Night-Lite™ GR-Series Liquid-Cooled 3kW light tower: bigger, brighter light and longer run times—so you get more done on the jobsite.

Kubota diesel engine with 63-gallon fuel tank: 313-hour run time with 350-watt lights; 360-hour run time with optional 250-watt lights.
Four 350-watt LED fixtures produce 204,488 total lumens and 38,610 ft 2 area at 0.5 ft-c: 19% more lumen output and 19,084 ft 2 more light area than the leading competitor.
Best-in-class 1,000-hour oil change interval: lower maintenance expenses.

For a tutorial video and more product support, visit the Night-Lite™ GR-Series Liquid-Cooled 3kW operations page.

Features

Mast

Flexible lighting with a vertical mast extending to 23 feet

Deep Sea L401 Controller

Engine start/stop operation, scheduling, voltage reading, fuel level reading, low fuel level shutdown, etc.

Compact Design

Fit 20 units on a 48 ft flatbed, 22 units on a 53 ft flatbed, more units for the same shipping cost

Heavy-duty Leveling Jacks

Vertical Tower

Structure - Four-section tubular steel design
Actuation - Dual handle manual winch, standard
Tower rotation - 355° fixture rotation
Guide pads - Polyethylene self-lubricating

Controls

Simple, easy to use

Easy Access

Wide area rear door for ease of access maintenance

SMD Style LEDs

Forklift Pockets

Easily load and unload equipment

Lifting Eye

359 degree rotation

Increase flexibility in light spread

Standard Trailer Coupler 2” ball

Stabilizers

Three-point design, tongue jack, (2) retractable side outriggers at rear of trailer.

Service Interval

1000 hour oil change interval

Fuel Tank

63 gallon (238 liter) fuel tank extends operation.

Up to 360 hour run time

Liquid-Cooled Engine

Operating Temperatures

Of -40 degrees Fahrenheit (Arctic Package required) to 120 degrees Fahrenheit

Welded Steel Frame with Lockable Door

(4) LED Light Fixtures 350W

Each 51,112 per lamp, 204,488 total

(4) LED Light Fixtures 250W

Each 38,081 per Lamp, 152,324 Total

Foldable Tongue

Takes up less space on the job-site and in your yard.

Specifications

Engine Brand

Kubota

Engine Model

Z482

Output @ Rated Speed (1,800 RPM) - HP****

5.1

Engine Prime Power (kW)**

3.0

Engine Tier

Tier 4 Final

Fuel Capacity - gal (L)

63 (238)

LED Wattage (per 250W lamp)

250 W

LED Lumens (per 250W lamp)

38,081

LED Lumens (total - 4-250W)

152,324

Operating Time - using four 250W LED light fixtures (hrs)***

360

Operating Width (Outriggers Deployed) - in (mm)

8.1 (2489)

Operating Length (Outriggers Deployed) - in (mm)

6.875ft (2096mm)

Trailer Weight - lbs (kg)

1,155 (524)

*Prime generator electrical output per Allmand^® testing.
**Based on one hour run test full fuel tank consumption.
***All power levels are stated gross horsepower as rated by the engines^© manufacturers.
†Based on 5 yrs of service and industry residual value.
Allmand^® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice.
See operator’s manual or www.allmand.com website for complete warranty details.

Options

Arctic Package (includes 120V immersion style block heater & HD battery)

250W LED Lights

LED Diffuser Panels

Custom Paint

Telematics Package (customer supplied - standard factory lead time for design)
