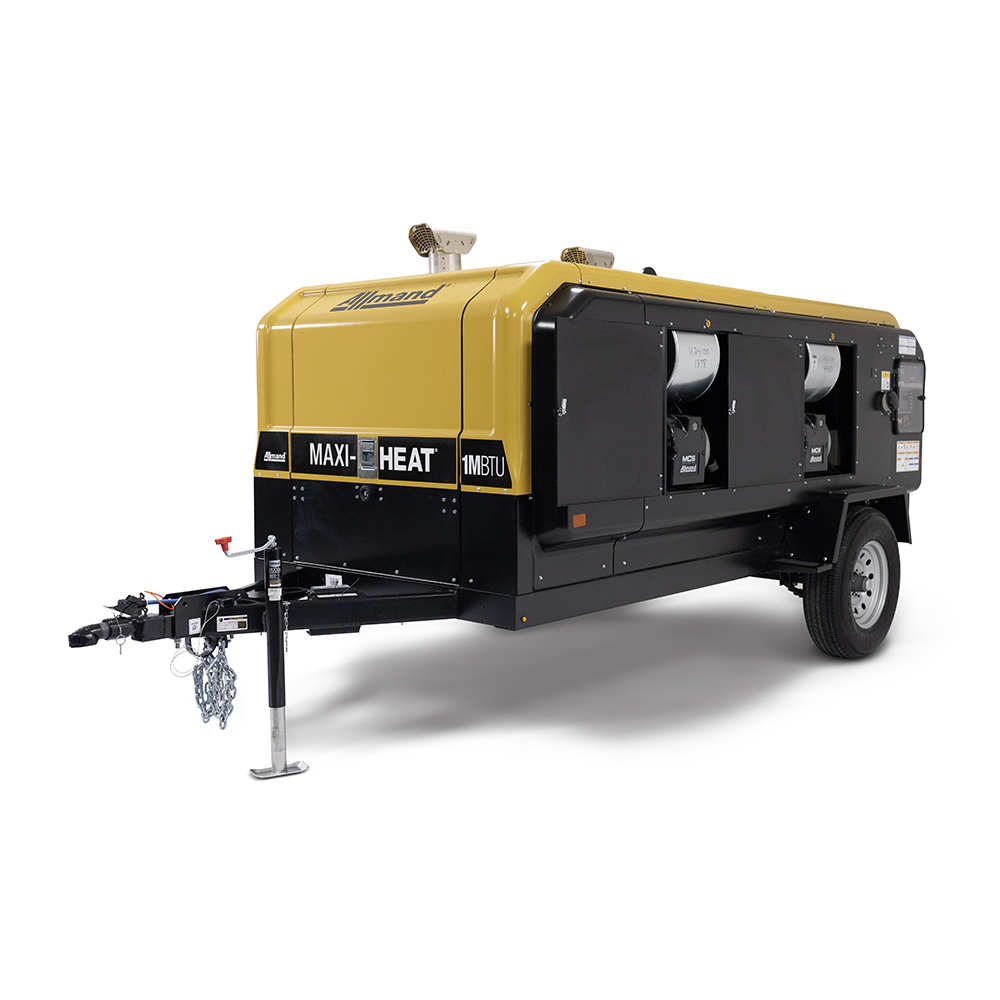

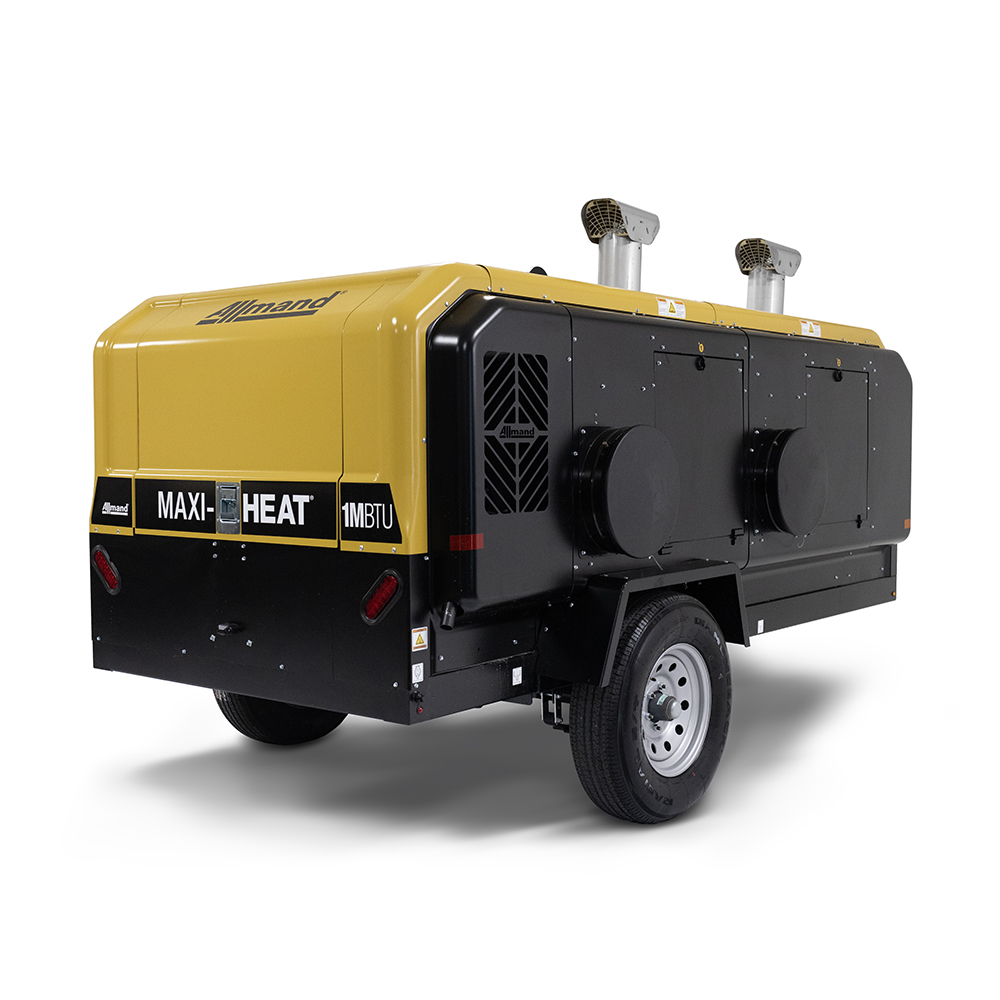

Maxi-Heat® 1M BTU

Maxi-Heat® 1M BTU

The new Maxi-Heat® mobile diesel heater features two independently operating burners which deliver 1,000,000 (1M) BTUs of self-contained, indirect fired heat. These units are robustly designed, performing even in the harshest conditions. For ease of operation the Maxi-Heat® comes fully equipped with the iQ system, which automatically calibrates each burner. This provides reliable trouble free operation, eliminating the tedious trial and error combustion measurements and adjustments. Recirculation is standard on all Maxi-Heat® products resulting in increased efficiency and less fuel consumption. The Maxi-Heat® can go from warming equipment to curing concrete, it's the towable heater you can rely on when you need it most.

For a tutorial video and more product support, vist the Maxi-Heat® operations page.

Our 2023 Maxi-Heat Pre-Season Promotion is going on now, click here to learn more.

3,530

Heated Air Output (cfm)

37.8

Operating Time (hrs)

210 (794.9)

Fuel Capacity (gal)

8

Generator Frequency (Hz)

Features

Centrifugal Fan

Provides decreased dBA output and increased air flow efficiency.

External Control Panel

Provides the operator with the necessary operating parameters needed during operation eliminating the need to open the heater door.

iQ System

Automatically calibrates burner for temperature, humidity and barometric pressure. Provides damper setting on color display, information on efficiency and target and actual outlet temperatures.

Fluid Containment System (FCS)

Provides 130% + fluid containment for all on-board fluids.

Reversible Coupler

Adjustable height 2" Bulldog and 3" pintle.

Durable Steel Enclosure

Built to last through the toughest environments and conditions.

Flexible Applications

Twin heater units on the 1M BTU model and Single heater unit on the 500K model providing flexibility of heat needed for the jobsite.

Sleek Design

Allows for ease of transport and maneuverability.

CSA Approved

Multi-tank only.

16", 12" or 20" Duct Flange Outlets

Lifting Eye

Specifications

At least one product must be displayed. Please select another option to remove this product

Engine Brand
CAT C1.1
Engine Model
C1.1
Fuel Capacity - gal(L)
210 (794.9)
Phase
1-Phase
Prime Power
8
Operating Time (hrs)
37.8
Horse Power (@ 1,800 RPM)****
13.8
Oil Change Interval
1,000
Engine Tier
Tier 4 Final
Gross Vehicle Weight Rating (GVWR) - lbs(kg)
6,000
Length - in(mm)
142.2 (3663)
Width - in(mm)
80.2 (2038)
Height - Top of Stack - in(mm)
83.9 (2130)
Frequency
60
Legacy Item ID
45635120_Allmand
Manuals

*Prime generator electrical output per Allmand® testing.
**Based on one hour run test full fuel tank consumption.
***All power levels are stated gross horsepower as rated by the engines' manufacturers.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator's manual or www.allmand.com website for completed warranty details.

Engine Brand
Kubota D1005
Engine Model
D1005
Fuel Capacity - gal(L)
210 (794.9)
Phase
1-Phase
Prime Power
8
Operating Time (hrs)
37.8
Horse Power (@ 1,800 RPM)****
11.6
Oil Change Interval
1,000
Engine Tier
Tier 4 Final
Gross Vehicle Weight Rating (GVWR) - lbs(kg)
6,000
Length - in(mm)
183,4 (4657)
Width - in(mm)
80.2 (2038)
Height - Top of Stack - in(mm)
83.9 (2130)
Frequency
60
Legacy Item ID
45635103_Allmand
Manuals

*Prime generator electrical output per Allmand® testing.
**Based on one hour run test full fuel tank consumption.
***All power levels are stated gross horsepower as rated by the engines' manufacturers.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator's manual or www.allmand.com website for completed warranty details.

Engine Brand
CAT C1.1
Kubota D1005
Engine Model
C1.1
D1005
Fuel Capacity - gal(L)
210 (794.9)
210 (794.9)
Phase
1-Phase
1-Phase
Prime Power
8
8
Operating Time (hrs)
37.8
37.8
Horse Power (@ 1,800 RPM)****
13.8
11.6
Oil Change Interval
1,000
1,000
Engine Tier
Tier 4 Final
Tier 4 Final
Gross Vehicle Weight Rating (GVWR) - lbs(kg)
6,000
6,000
Length - in(mm)
142.2 (3663)
183,4 (4657)
Width - in(mm)
80.2 (2038)
80.2 (2038)
Height - Top of Stack - in(mm)
83.9 (2130)
83.9 (2130)
Frequency
60
60
Legacy Item ID
45635120_Allmand
45635103_Allmand

*Prime generator electrical output per Allmand® testing.
**Based on one hour run test full fuel tank consumption.
***All power levels are stated gross horsepower as rated by the engines' manufacturers.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator's manual or www.allmand.com website for completed warranty details.

Options

Thermostat Package

  • Remote thermostat
  • Lead extension

2 - 5/16" Bulldog Hitch

Loackable Battery Disconnect

  • 12", 16" or 20" Duct Flange Outlets (ducts not included)

Air Shut Off Valve

Custom Paint

Telematics

  • Customer supplied - consult factory
