    Maxi-Power™ 25

    MaxiPower 25
    MaxiPower 25
    MaxiPower 25

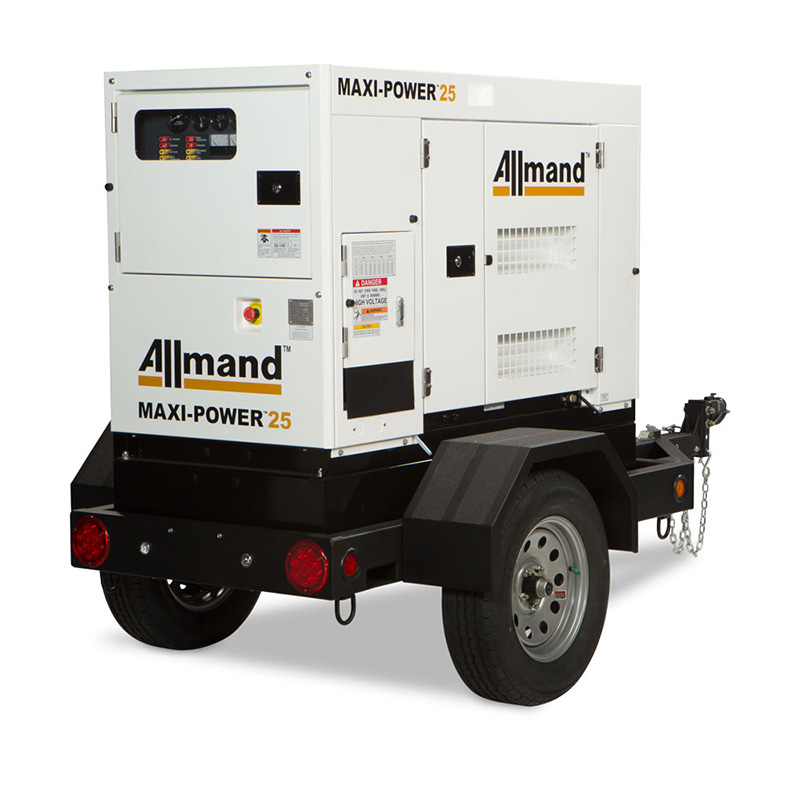

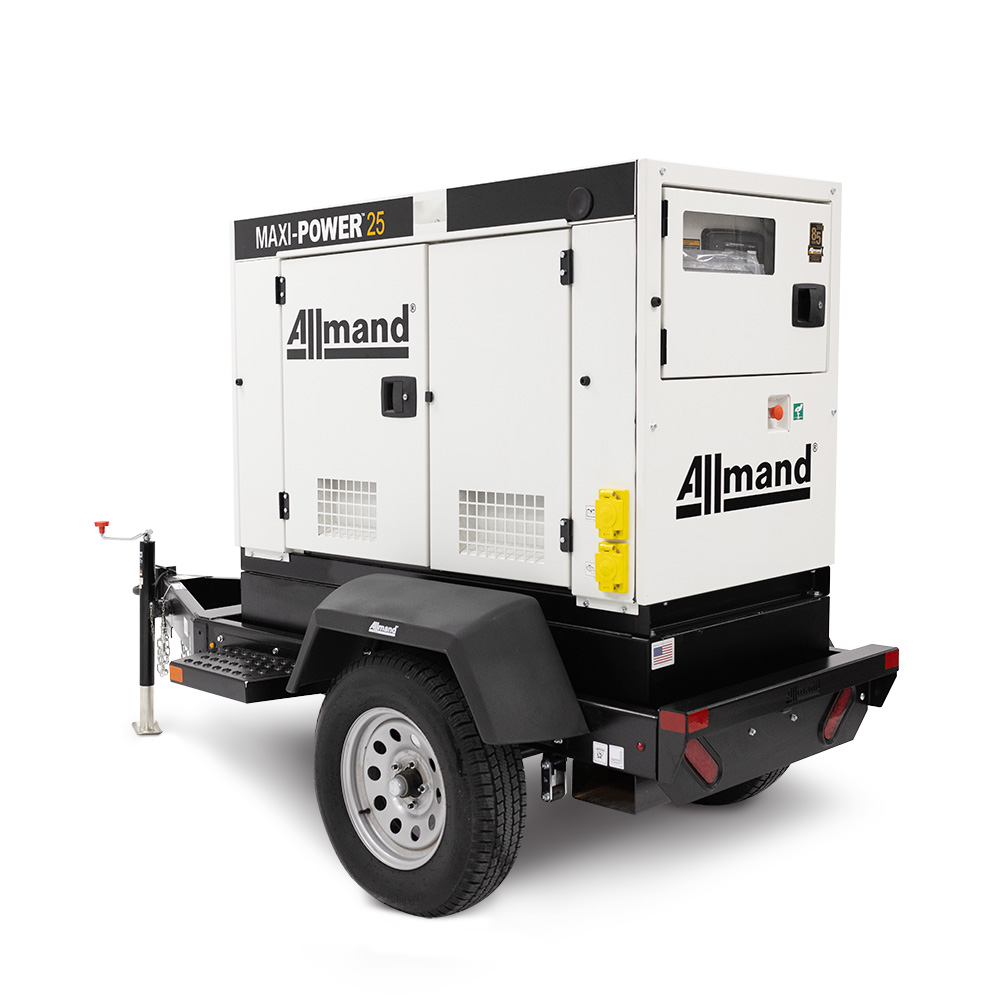

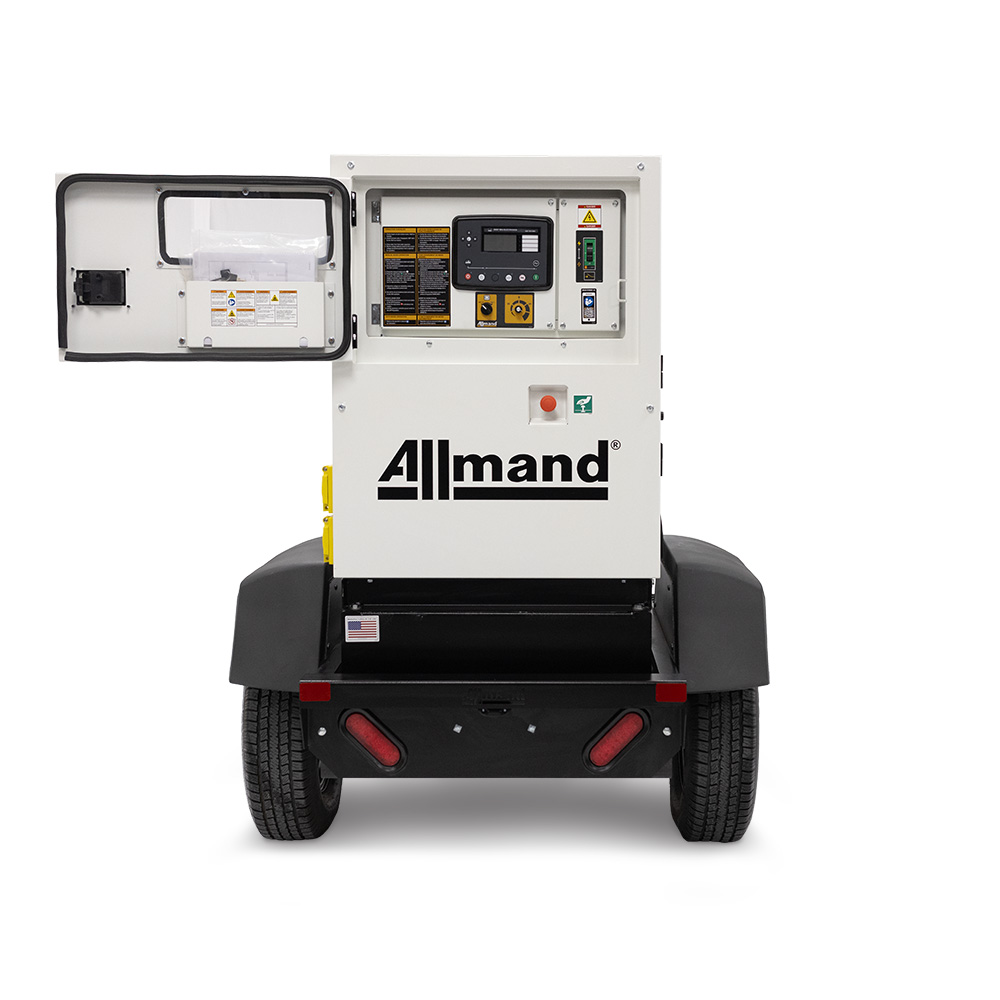

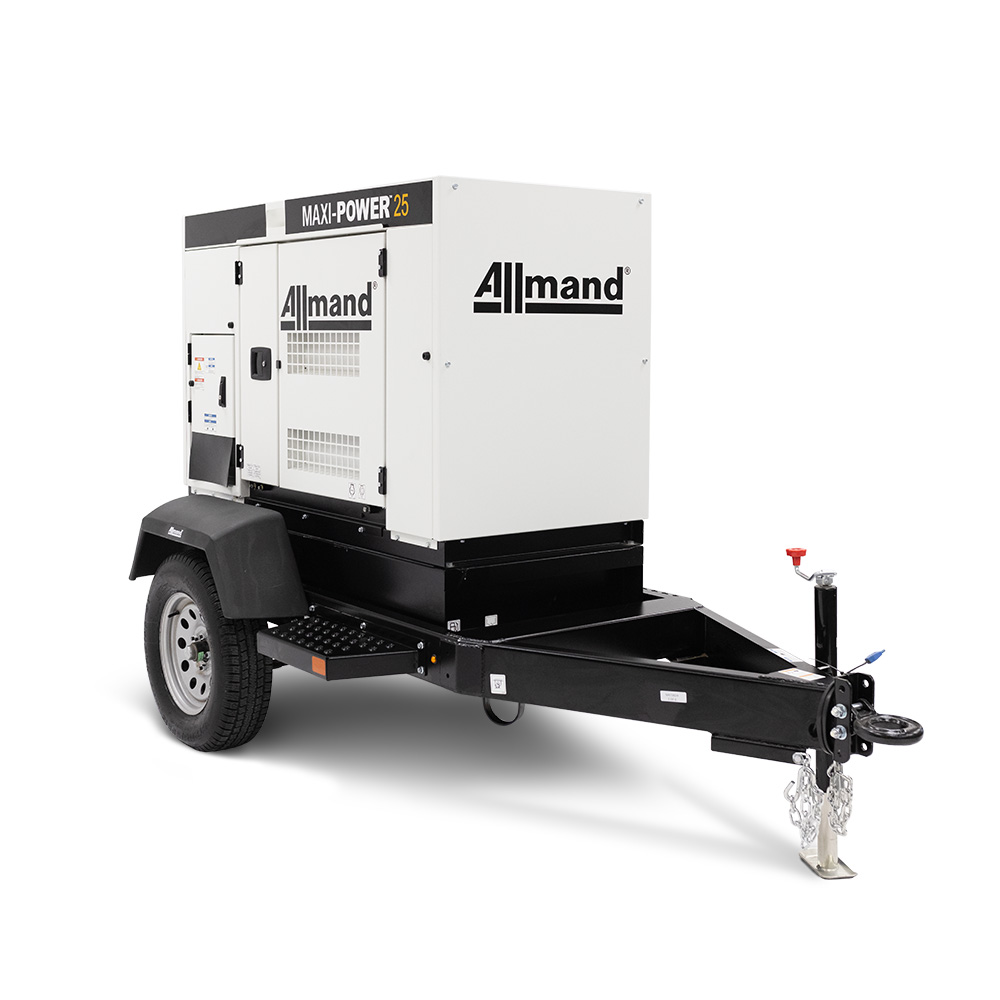

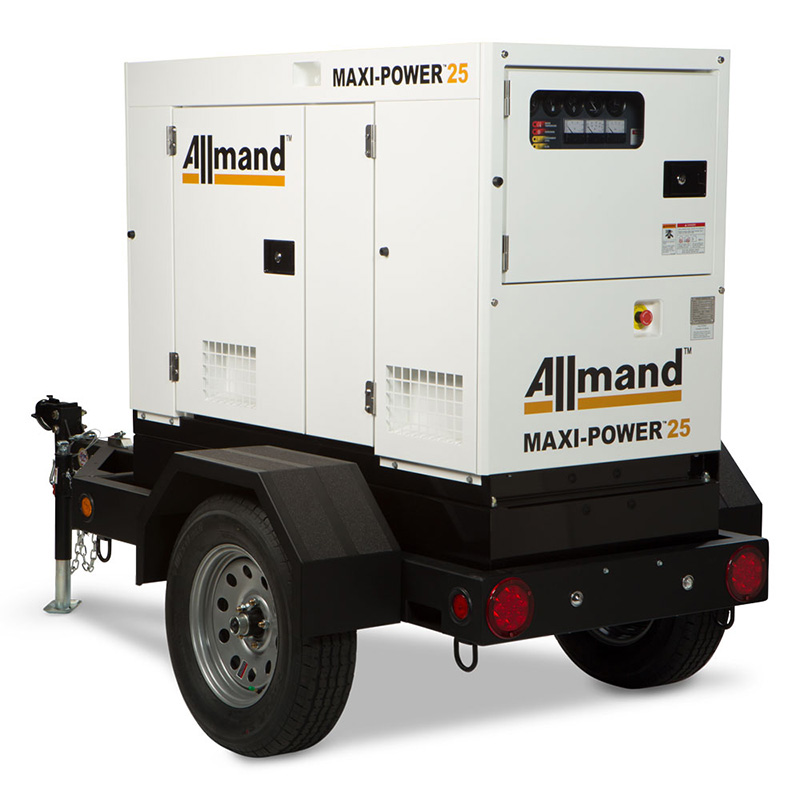

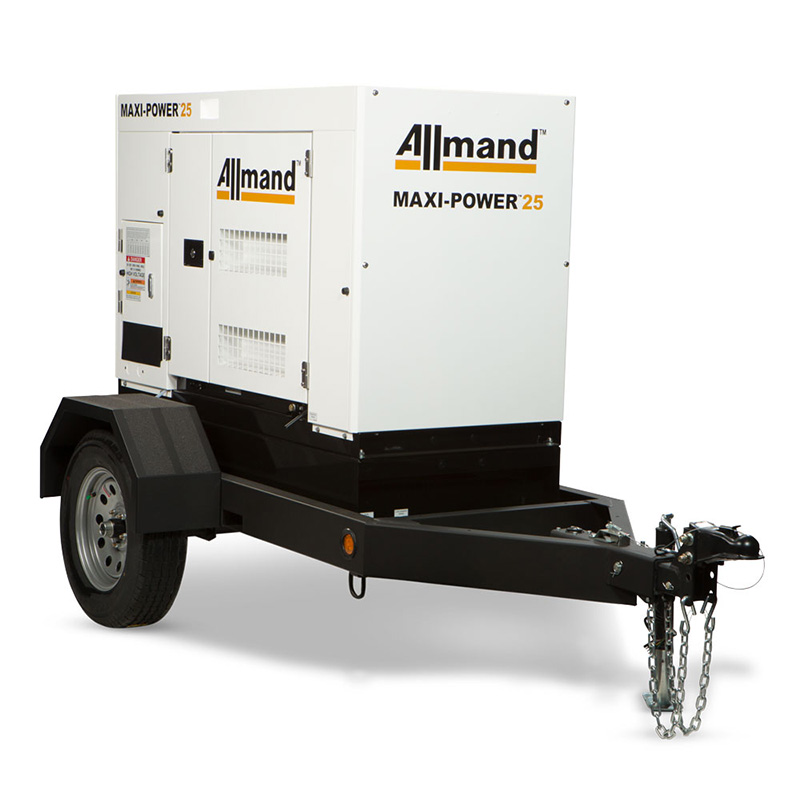

    Maxi-Power™ 25

    Mobile Generator

    Maximize the power of your job site with the Maxi-Power™ 25 Mobile Generator. With a frequency switch for flexibility of jobsite power needs and 15" tires for longer wear and greater towing capabilities. This unit also has forklift pockets, which set it apart from the others in the lineup.


    For a tutorial video and more product support, visit the Maxi-Power™ operations page.

    27.5 (22)

    Standby Power (kVA)

    25 (20)

    Prime Power (kVA)

    31+

    Run Time (Hrs)

    63

    Sound Level (dBA)
    Feature

    Features

    Fluid Containment System (FCS)

    Holds 110% of all on-board fluids.

    Large Capacity Fuel Tank

    Allows over 24 hour run time at full load.

    EFPA (Electric Fuel Primer & Air-Bleed) Pump

    No need to bleed air if fuel runs out.

    Oversized Electrical Lugs

    Easy to connect leads (with no copper shaving).

    Curbside Fluid Maintenance

    Ease of serviceability.

    Lockable Switch / Voltage Selector

    Consistency on jobsite, keeping it where it was set by the operator on-site.

    Voltage Single Phase – Switchable

    120 V / 240 V

    Voltage Three Phase – Switchable

    120 V / 208 V or 277 V / 480 V

    Standard Programmable Start / Stop for Standby Applications

    Stand External Fuel Connections

    Trailer – Poly Fenders with Steel Steps

    Trailer – Removable Steel Rear Bumper

    Specifications

    At least one product must be displayed. Please select another option to remove this product

    Engine Brand
    Isuzu
    Engine Model
    4LE2T
    Engine Tier
    Tier 4 Final
    Output @ Rated Speed (1,800 RPM) - HP****
    33
    Standby Power - kVA (kW)
    27.5 (22)
    Prime Power - kVA (kW)***
    25 (20)
    Battery (V)
    12
    Voltage Regulation Percentage
    0.50%
    Amperage Single Phase 120 V (A)
    60 x 2
    Amperage Single Phase 240 V (A)
    60
    Amperage Three Phase 120 V / 208 V (A)
    69
    Amperage Three Phase 277 V / 480 V (A)
    30
    Excitation
    Brushless with AVR
    Armature Connection Layout
    Star with Neutral/Zig/Zag
    Insulation
    Class H4
    Integral Fuel Tank Capacity (gal)
    52
    Runtime @ Full Load (hrs)
    31+
    Main Breaker Size (Amps)
    100 (80%)
    Sound Level @ 23 ft. (No Load) - dBA
    63
    Engine Oil Change Interval (hrs)
    500
    Engine Fuel Filter Change Interval (hrs)
    500
    Dry Weight (lbs)
    2,425
    Operating Wet Weight (lbs)
    2,780
    Trailer Weight (lbs)
    531.4
    Trailer GVWR (lbs)
    2,900
    Height With Towing Frame (in)
    72
    Length With Towing Frame (in)
    123.3
    Width With Towing Frame (in)
    54.8
    Number of Units on 48 Flatbed
    7
    Number of Units on 53 Flatbed
    7
    Manuals
    DownloadIllustrated Parts List - English
    DownloadOperator's Manual - English, Spanish-Colombian, French-Canadian

    *Unit runs at full load for 24+ hours.
    **See operator’s manual or www.allmand.com website for complete warranty details.
    ***Prime generator electrical output per Allmand® testing.
    Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

    Options

    Camlocks

    Interchangeable electrical connectors that can be used in either single or three phase modes

    Single set of 5 camlocks



    Arctic Package

    Battery heater pad - 50W 120V battery heater blanket

    Block Heater - Thermosiphon 1,000W 120V with thermostat

    Battery Charger



    Battery Charger

    5A 120V battery charger with 3 stage charge cycle



    Hitch Coupler Options:

    2" Ball

    2" Bulldog

    2-5/6" Ball

    2-5/16" Bulldog

    3" Lunette Ring



    Telematics Package (Customer Supplied - consult factory for lead times)



    Lockable Battery Disconnect



    Skid Mounts
