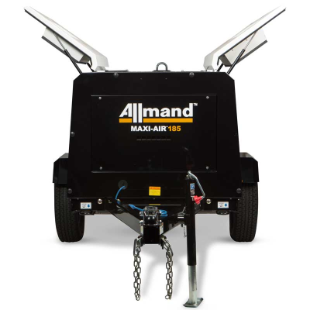

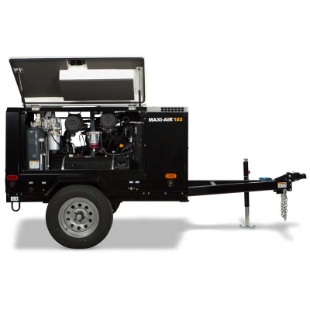

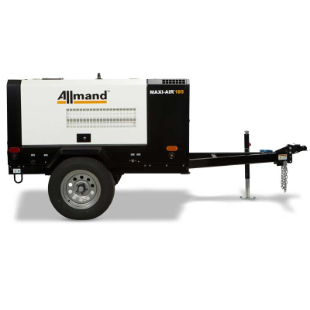

Maxi-Air™ Portable Air Compressor

Whatever the project or JobSite condition may be, Allmand's Maxi-Air™ Portable Air Compressor will maximize your jobsite with it's heavy duty, over-sized rotary screw air end by providing lower RPM for longer life and fuel efficiency. This easy-to-use compressor will reduce sound level with its powerful airflow design, high capacity and cold start battery for easier starting capabilities in all climate conditions. This product provides a worry free environment in order to complete all projects efficiently.

Download the product spec sheet for additional information.

100

Working Pressure (PSI)

185

Free Air Delivery (scfm)

47.6

Horse Power (HP)

2.189

Displacement (L)

Features

Heavy Duty, Over-sized Rotary Screw Air End

Lower RPM for longer life and fuel efficiency.

Sound Attenuated, with Airflow Design

Reduction in sound level, 63 dba, quiet by design.

High Capacity, Cold Start Battery

Increase cold cranking amps for easier starting capabilities in all climate conditions.

Heavy Duty Steel Enclosure with Powder Coat Paint and Stainless Steel Hardware

Withstands environmental elements and is corrosion resistant for a longer life.

Disclaimer: Allmand has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice.

Specifications

At least one product must be displayed. Please select another option to remove this product

Type
Rotary Twin-Screw, Single-Stage
Working Pressure (PSI)
100
Air Receiver Tank (gal)
5.29
Engine Coupling Type
Fiber Gear Direct Coupling
Lubrication System Capacity - gal(L)
3.96
Separator
External
Engine Model
4TNV88C
Engine Type
4 Cycle, Water Cooled, Direct Injection
Displacement (L)
2.189
Low Idle (RPM)
1,350
Fuel Consumpion @ Full Load (gph)
2.4
Fuel Capacity (gal)
24
Oil Capacity (gal)
1.95
Dry Weight (lbs)
2,051
Length w/ Towing Fram (in)
134
Height w/ Towing Frame (in)
61
Operating Max. Altitude** (ft)
4,921
Operating Min. Ambient Temperature (F)
Sound Level @ 20 Ft (dBA)
< 62
Free Air Delivery (scfm)
185
Max. Working Pressure (PSI)
120
Air Outlets (in.)
3/4 x 2
Lubrication System Type
Forced Lubrication by compressed pressure
Air Cooler Type
Separate Side-by-Side Oil Cooler & Radiator
Engine Brand
Yanmar
EPA Emission Level
Tier 4 Final
Number of Cylinders
4
Horsepower (HP)
47.6
High Idle (RPM)
3,000
Fuel Consumption @ No Load (gph)
0.8
Cooling System Capacity (gal)
1.93
Electrical System
12V system
Dry Weight w/ Towing Frame (lbs)
2,300
Width w/ Towing Fram (in)
68
Operation Wet Weight (lbs)
2,450
Operating Max. Ambient Temperature (F)
113°
Operating Max. Incline (deg)
15
Runtime @ Full Load (hrs)
8+
Type
Rotary Twin-Screw, Single-Stage
Rotary Twin-Screw, Single-Stage
Rotary Twin-Screw, Single-Stage
Free Air Delivery (scfm)
400
185
400
Working Pressure (PSI)
100
100
100
Max. Working Pressure (PSI)
120
120
120
Air Receiver Tank (gal)
25.88
5.29
25.88
Air Outlets (in.)
3/4 x 2 and 2 x 1
3/4 x 2
3/4 x 2 and 2 x 1
Engine Coupling Type
Fiber Gear Direct Coupling
Fiber Gear Direct Coupling
Fiber Gear Direct Coupling
Lubrication System Type
Forced Lubrication by compressed pressure
Forced Lubrication by compressed pressure
Forced Lubrication by compressed pressure
Lubrication System Capacity - gal(L)
13.74
3.96
13.74
Air Cooler Type
Separate Side-by-Side Oil Cooler & Radiator
Separate Side-by-Side Oil Cooler & Radiator
Separate Side-by-Side Oil Cooler & Radiator
Separator
Internal
External
Internal
Engine Brand
Isuzu
Yanmar
Isuzu
Engine Model
4JJ1X
4TNV88C
4JJ1X
EPA Emission Level
Tier 3
Tier 4 Final
Tier 3
Engine Type
4 Cycle, Water Cooled, Over Head Cam, Vertical Inline Direct Injection With Turbo
4 Cycle, Water Cooled, Direct Injection
4 Cycle, Water Cooled, Over Head Cam, Vertical Inline Direct Injection With Turbo
Number of Cylinders
4
4
4
Displacement (L)
2.999
2.189
2.999
Horsepower (HP)
113.2
47.6
113.2
Low Idle (RPM)
1,300
1,350
1,300
High Idle (RPM)
2,200
3,000
2,200
Fuel Consumpion @ Full Load (gph)
5.3
2.4
5.3
Fuel Consumption @ No Load (gph)
2
0.8
2
Fuel Capacity (gal)
47
24
47
Cooling System Capacity (gal)
2.9
1.93
2.9
Oil Capacity (gal)
3.96
1.95
3.96
Electrical System
24V system
12V system
24V system
Dry Weight (lbs)
4,189
2,051
4,189
Dry Weight w/ Towing Frame (lbs)
4,585
2,300
4,585
Length w/ Towing Fram (in)
176
134
176
Width w/ Towing Fram (in)
78
68
78
Height w/ Towing Frame (in)
76
61
76
Operation Wet Weight (lbs)
5,000
2,450
5,000
Operating Max. Altitude** (ft)
4,921
4,921
4,921
Operating Max. Ambient Temperature (F)
113°
113°
113°
Operating Min. Ambient Temperature (F)
Operating Max. Incline (deg)
15
15
15
Sound Level @ 20 Ft (dBA)
< 73
< 62
< 73
Runtime @ Full Load (hrs)
8+
8+
8+

Options

50 ft Hose Reel Lockable Battery Disconnect
Battery Charger Block Heater
