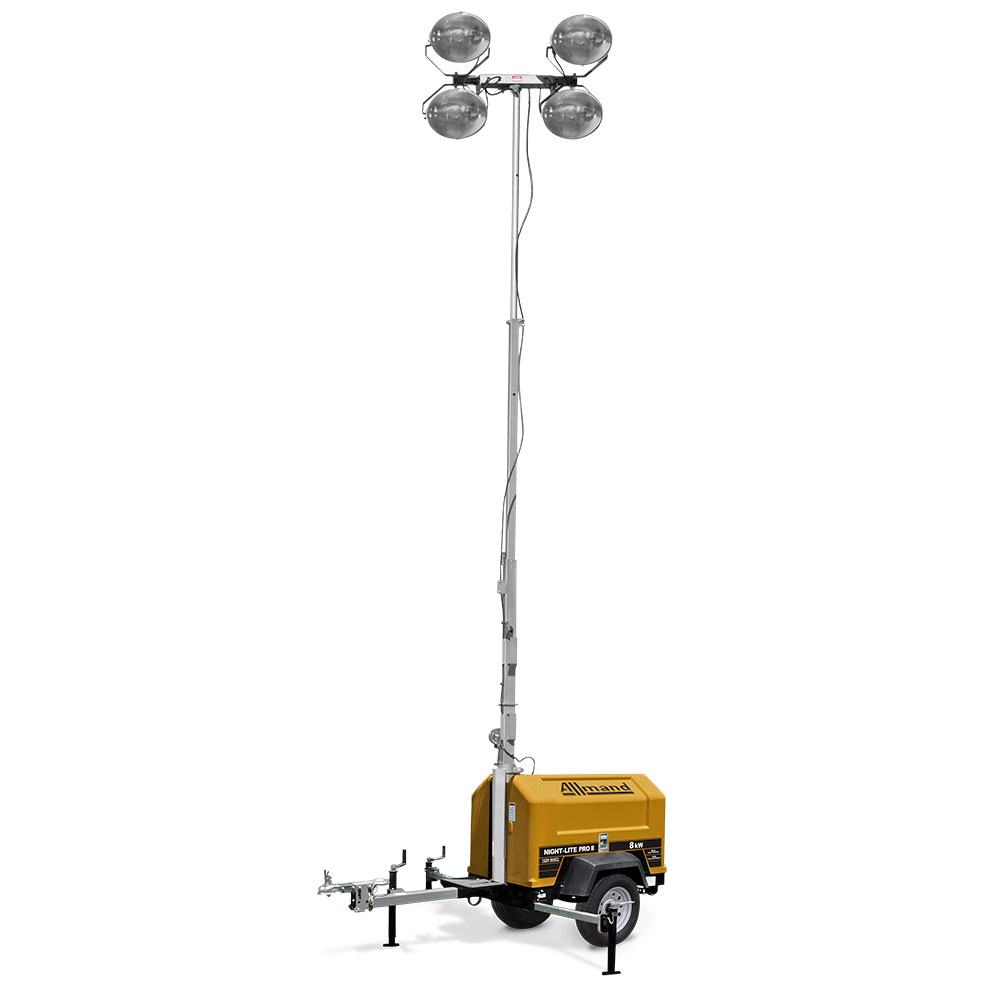

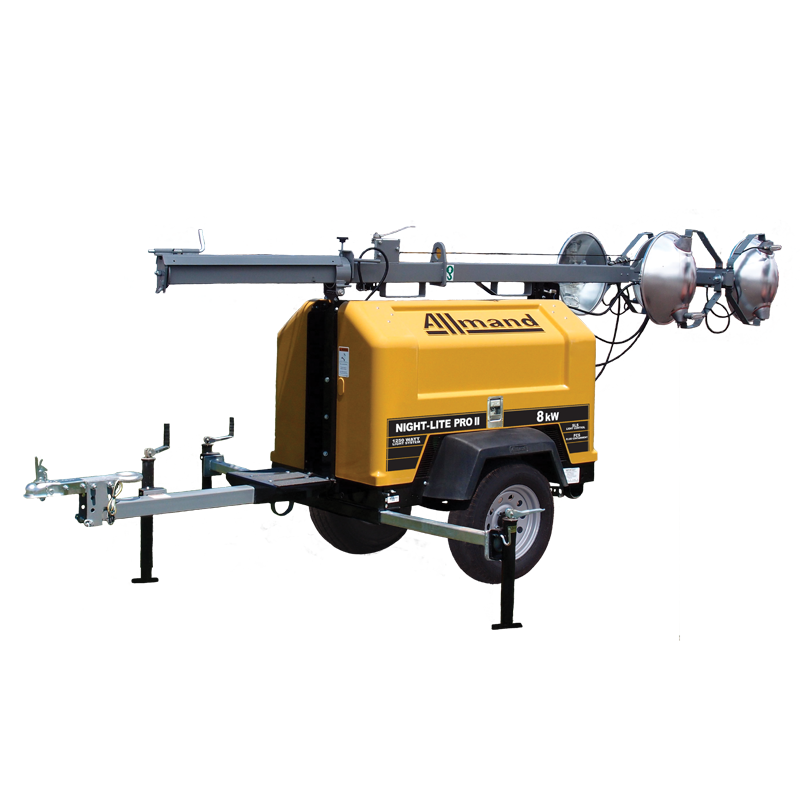

Night-Lite Pro II®

Features

Sequenced Light System (SLS™)

Automatically delays engine shutdown to turn off lights and prevent generator from shutting down while under load

Tower

Structure - Three-section tubular steel design
Actuation - Manual winch, standard
Tower rotation - 359° fixture rotation
Guide pads - Polyethylene self-lubricating

Trailer Lighting

Stop, turn, tail lights / side marker lights / illuminated license plate bracket.

Stabilizers

Four-point design, tongue jack, (2) retractable side outriggers at front of trailer, rear jack.

Axle

Tubular axle with elliptical leaf springs.

Forklift Pockets and Lifting Eye

Allow easy loading and unloading of up to twenty-two units on an ocean container

114 Liter Polyethylene Fuel Tank

Four-Way Flat Trailer Connector

Gull-Wing Style Doors

Reaction Injection Molded (RIM) doors providing strength and corrosion resistance with a lockable latch

Specifications

Engine Brand

Kubota

Engine Model

D1005

Engine Prime Power (kW)**

Fuel Capacity - (L)

113.6

Light Type - Metal Halide

(4) Metal Halide SHO-HD^® fixture

Metal Halide Wattage (per lamp)

1,250

Metal Halide Lumens (per lamp)

135,500

Metal Halide Lumens (total)

542000.0

Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)

48.4

Shipping Weight (kg)

780.2

Gross Vehicle Weight Rating (GVWR) (kg)

998

Shipping

10 units on a 6 meter ocean container / 22 units on a 12 meter ocean container

Length Transport (m)

4.49

Width Transport (m)

4.4

Width Operating (m)

1.28

Height* Mast Lowered (m)

2.1

Height* Mast Raised (m)

8.9

Warranty Commercial Product

550 CCA @ 0° F - Standard 775 CCA @ 0° F - Optional Only with Arctic Packages

Warranty Commercial Engine Power Source

Sequenced Lighting System (SLS™). System automatically turns on lights after engine start and delays engine shutdown to turn off lights first to prevent generator from shutting down while under load.

Manuals

Illustrated Parts List - English
Download

Operator's Manual - English,Russian
Download

Operator's Manual - English,Spanish,French
Download

Operator's Manual - Multi-Language
Download

Operator's/Setup Manual - English
Download

Wiring Diagram Schematic - Multi-Language
Download

Wiring Diagram Schematic - English
Download

Wiring Diagram Schematic - English

^{*Balloon light only included in raised dimension – balloon light is removed for transportation.}
^{**Prime generator electrical output per Allmand^® testing.}
^{***Based on one hour run test full fuel tank consumption.}
^{Allmand^® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.}

Outlets

Standard (Kubota)

20 A 120 VAC duplex GFCI / 30 A 240 VAC 3-Wire Twist Lock (NEMA L14-30R) OR 20 A 120 VAC duplex GFCI / 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R) 30 A 120 VAC RV (NEMA TT-30R)

Standard (Caterpillar)

20 A 120 VAC duplex GFCI / 30 A 240 VAC 3-Wire Twist Lock (NEMA L14-30R)

Standard (Mitsubishi)

20 A 120 VAC duplex GFCI

Options

Galvanized Tower

Ship Racking

Fuel Containment System (FCS)

Holds up to 110% of the fuel and engine oil capacity to protect sensitive environments from inadvertent leaks and spills.

Lockable Battery Disconnect

AirStar Package

Balloon Light features the AirStar Flex diffused lighting system using Allmand's exclusive bulbs. This system provides reduced glare while still illuminating a large area.

Reversible Coupler

2" ball with 3" pintle (Not available on Mitsubishi model)

Skid Mount Available on Standard SKUs
