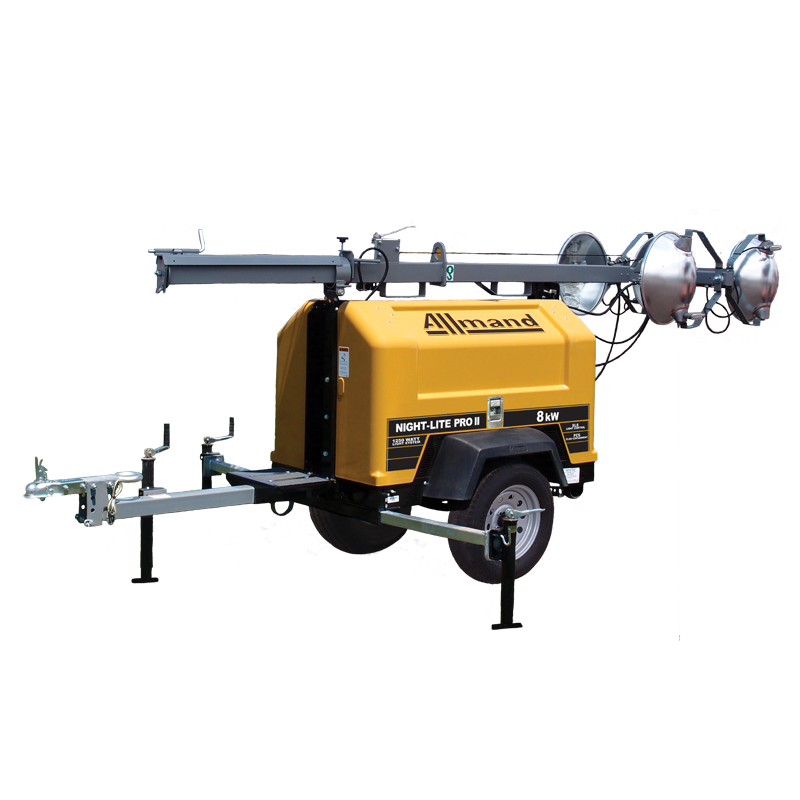

Night-Lite Pro II®

Night-Lite Pro II®

LD-Series™ (50 Hz)

The Night-Lite Pro II® LD-Series™ features SHO-HD® lamp fixtures that provide 135,500 lumens per lamp – more than competitive light towers. The 114 liter polyethylene fuel tank eliminates contamination from rust and corrosion to keep your light tower running longer. The optional full fluid containment system protects sensitive environments from inadvertent leaks and spills. Maximize your job site productivity with the choice that outshines the competition.

1,000

Metal Halide Wattage

440,000

Metal Halide Lumens (total)

Features

Sequenced Light System (SLS™)

Automatically delays engine shutdown to turn off lights and prevent generator from shutting down while under load

Tower

Structure - Three-section tubular steel design
Actuation - Manual winch, standard
Tower rotation - 359° fixture rotation
Guide pads - Polyethylene self-lubricating

Trailer Lighting

Stop, turn, tail lights / side marker lights / illuminated license plate bracket.

Stabilizers

Four-point design, tongue jack, (2) retractable side outriggers at front of trailer, rear jack.

Axle

Tubular axle with elliptical leaf springs.

Forklift Pockets and Lifting Eye

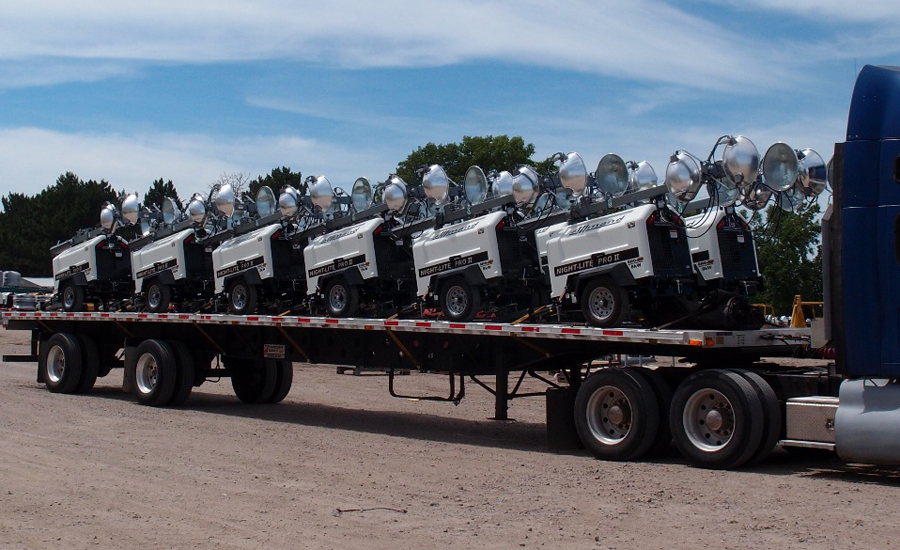

Allow easy loading and unloading of up to twenty-two units on an ocean container

114 Liter Polyethylene Fuel Tank

Four-Way Flat Trailer Connector

Gull-wing style doors

Allows easy access to all major service components in the enclosure, resist impact damage, and will not rust

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Brand
Kubota
Engine Prime Power (kW)**
6
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
Metal Halide Lumens (per lamp)
110,000
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
63.8
Gross Vehicle Weight Rating (GVWR) (kg)
998
Length Transport (m)
4.49
Width Operating (m)
1.28
Height* Mast Raised (m)
8.9
Engine Brand
Mitsubishi
Engine Prime Power (kW)**
6
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
Metal Halide Lumens (per lamp)
110,000
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
50
Gross Vehicle Weight Rating (GVWR) (kg)
998
Length Transport (m)
4.49
Width Operating (m)
1.28
Height* Mast Raised (m)
8.9
Engine Brand
Caterpillar
Engine Prime Power (kW)**
6
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
Metal Halide Lumens (per lamp)
110,000
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
65.2
Gross Vehicle Weight Rating (GVWR) (kg)
998
Length Transport (m)
4.49
Width Operating (m)
1.28
Height* Mast Raised (m)
8.9

*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

Engine Brand
Mitsubishi
Kubota
Mitsubishi
Engine Model
L3E
D1005
L3E
Engine Prime Power (kW)**
6
6
6
Fuel Capacity - (L)
113.6
113.6
113.6
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
(4) Metal Halide SHO-HD® fixture
(4) Metal Halide SHO-HD® fixture
Metal Halide Wattage (per lamp)
1,000
1,000
1,000
Metal Halide Lumens (per lamp)
110,000
110,000
110,000
Metal Halide Lumens (total)
440000
440000
440000
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
50
63.8
50
Shipping Weight (kg)
780.2
780.2
780.2
Gross Vehicle Weight Rating (GVWR) (kg)
998
998
998
Shipping
10 units on a 6 meter ocean container / 22 units on a 12 meter ocean container
10 units on a 6 meter ocean container / 22 units on a 12 meter ocean container
10 units on a 6 meter ocean container / 22 units on a 12 meter ocean container
Length Transport (m)
4.49
4.49
4.49
Width Transport (m)
4.4
4.4
4.4
Width Operating (m)
1.28
1.28
1.28
Height* Mast Lowered (m)
2.1
2.1
2.1
Height* Mast Raised (m)
8.9
8.9
8.9

*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

Outlets

Standard (Mitsubishi)

(1) 16 A 220 VAC Schuko outlet (CEE 7/4 EU1-16R

Standard (Kubota & Caterpillar)

Standard (2) 16 A 220 VAC Schuko outlet (CEE 7/4 EU1-16R)

Options

Galvanized Tower



Ship Racking



Fuel Containment System (FCS)

Holds up to 110% of the fuel and engine oil capacity to protect sensitive environments from inadvertent leaks and spills.

Skid Mount Available on Standard SKUs



Reversible Coupler

2" ball with 3" pintle (Not available on Mitsubishi model)



Lockable Battery Disconnect
