Night-Lite Pro II®

Night-Lite Pro II®

V-Series® (60Hz)

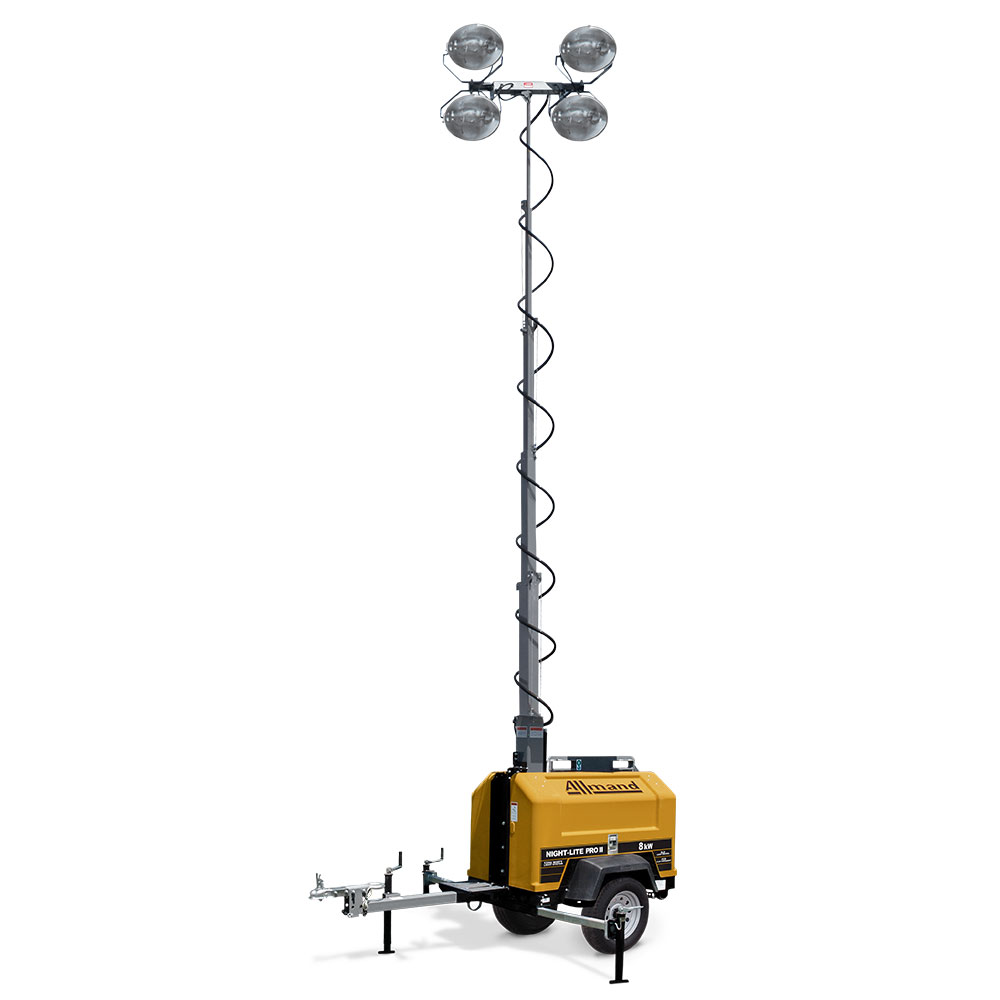

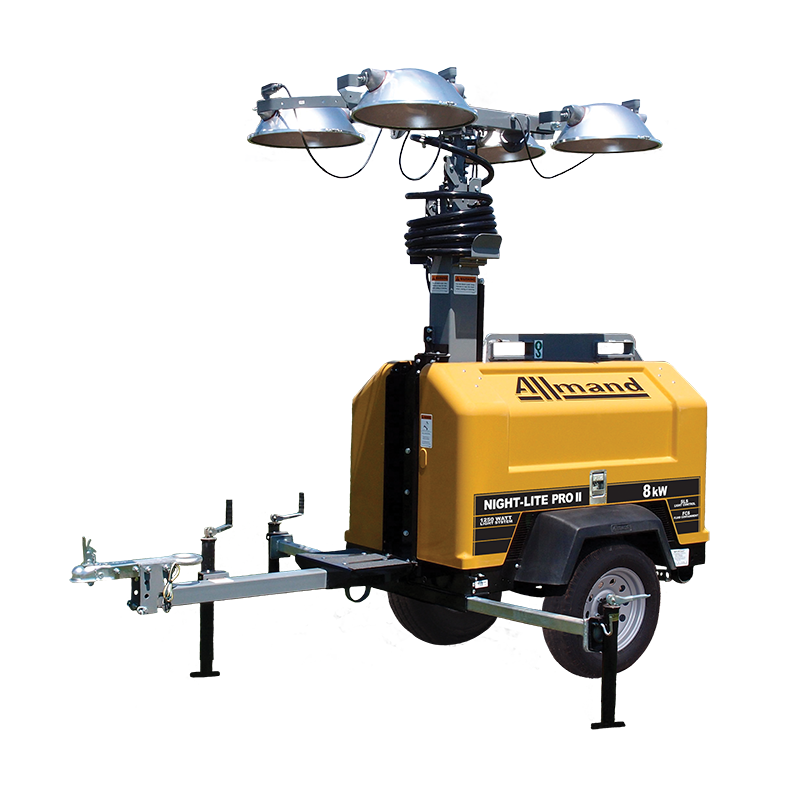

The Night-Lite Pro II® V-Series® offers four different engine models and features a vertical tower with power cables encased in Nycoil™ flexible tubing to eliminate tangling and stretching of the tower wiring. The metal halide lamp fixtures provide 135,500 lumens per lamp – more than competitive light towers. With a 114 liter polyethylene fuel tank, this dependable light tower will keep your job site running all through the night.

154,000

Metal Halide Wattage

320

Metal Halide Lumens (total)

542,000

LED Wattage

1,250

LED Lumens (total)

Features

Tower

Structure - Six-section tubular steel design
Actuation - Hydraulic winch
Tower Rotation - 359° fixture rotation
Guide Pads - Polyethylene self-lubricating

Stabilizers

Four-point design, tongue jack, (2) retractable side outriggers at front of trailer, rear jack.

Gull-Wing Style Doors

Reaction Injection Molded (RIM) doors providing strength and corrosion resistance with a lockable latch

Remote Engine Oil Drain

Easily accessible at rear of trailer

Sequenced Lighting System (SLS™)

Automatically delays engine shutdown to turn off lights and prevent the generator from shutting down while under load.

Fluid Containment System (FCS)

Holds up to 110% of all on-board fluids

Hour Meter

Provides the amount of time unit has run

Forklift Pockets and Lifting Eye

Allow easy loading and unloading of up to twenty-two units on an ocean container

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Brand
Caterpillar
Engine Prime Power (kW)**
8
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
Metal Halide Lumens (per lamp)
135,500
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
50
LED Wattage (per lamp)
320
LED Lumens (total)
154000
Shipping Weight (kg)
884.5
Shipping
10 units on a 6 meter ocean container / 22 units on a 12 meter ocean container
Width Transport (m)
1.3
Height* Mast Lowered (m)
2.5
Engine Model
C1.1
Fuel Capacity - (L)
114
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (total)
542000
Light Type - LED
(4) Two LED, 5000°K color temperature
LED Lumens (per lamp)
38500
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
78.9
Gross Vehicle Weight Rating (GVWR) (kg)
998
Length Transport (m)
3.1
Width Operating (m)
2.6
Height* Mast Raised (m)
8.1
Engine Brand
Kubota
Engine Prime Power (kW)**
7
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
Metal Halide Lumens (per lamp)
135,500
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
48.4
LED Wattage (per lamp)
320
LED Lumens (total)
154000
Shipping Weight (kg)
884.5
Shipping
10 units on a 6 meter ocean container / 22 units on a 12 meter ocean container
Width Transport (m)
1.3
Height* Mast Lowered (m)
2.5
Engine Model
D1005
Fuel Capacity - (L)
114
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (total)
542000
Light Type - LED
(4) Two LED, 5000°K color temperature
LED Lumens (per lamp)
38500
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
103.4
Gross Vehicle Weight Rating (GVWR) (kg)
998
Length Transport (m)
3.1
Width Operating (m)
2.6
Height* Mast Raised (m)
8.1

*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

Engine Brand
Kubota
Caterpillar
Kubota
Engine Model
D1005
C1.1
D1005
Engine Prime Power (kW)**
7
8
7
Fuel Capacity - (L)
114
114
114
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
(4) Metal Halide SHO-HD® fixture
(4) Metal Halide SHO-HD® fixture
Metal Halide Wattage (per lamp)
1,250
1,250
1,250
Metal Halide Lumens (per lamp)
135,500
135,500
135,500
Metal Halide Lumens (total)
542000
542000
542000
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
48.4
50
48.4
Light Type - LED
(4) Two LED, 5000°K color temperature
(4) Two LED, 5000°K color temperature
(4) Two LED, 5000°K color temperature
LED Wattage (per lamp)
320
320
320
LED Lumens (per lamp)
38500
38500
38500
LED Lumens (total)
154000
154000
154000
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
103.4
78.9
103.4
Shipping Weight (kg)
884.5
884.5
884.5
Gross Vehicle Weight Rating (GVWR) (kg)
998
998
998
Shipping
10 units on a 6 meter ocean container / 22 units on a 12 meter ocean container
10 units on a 6 meter ocean container / 22 units on a 12 meter ocean container
10 units on a 6 meter ocean container / 22 units on a 12 meter ocean container
Length Transport (m)
3.1
3.1
3.1
Width Transport (m)
1.3
1.3
1.3
Width Operating (m)
2.6
2.6
2.6
Height* Mast Lowered (m)
2.5
2.5
2.5
Height* Mast Raised (m)
8.1
8.1
8.1

*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

Outlets

Standard (Kubota)

20 A 120 VAC duplex GFCI / (2) 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R)

Standard (Caterpillar)

20 A 120 VAC duplex GFCI / 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R) / 30 A 120 VAC RV (NEMA TT-30R)

Options

LED Package

(4) LED light fixtures



AirStar Package

Balloon Light features the AirStar Flex diffused lighting system using Allmand's exclusive bulbs. This system provides reduced glare while still illuminating a large area.



Galvanized Tower



Ship Racking

Ship Racking



Skid Mount Available on Standard SKUs



Reversible Coupler

2" ball with 3" pintle



Lockable Battery Disconnect



Marathon Alternator
