    Hybrid LT-Series™

    Hybrid LTSeries
    Hybrid LTSeries

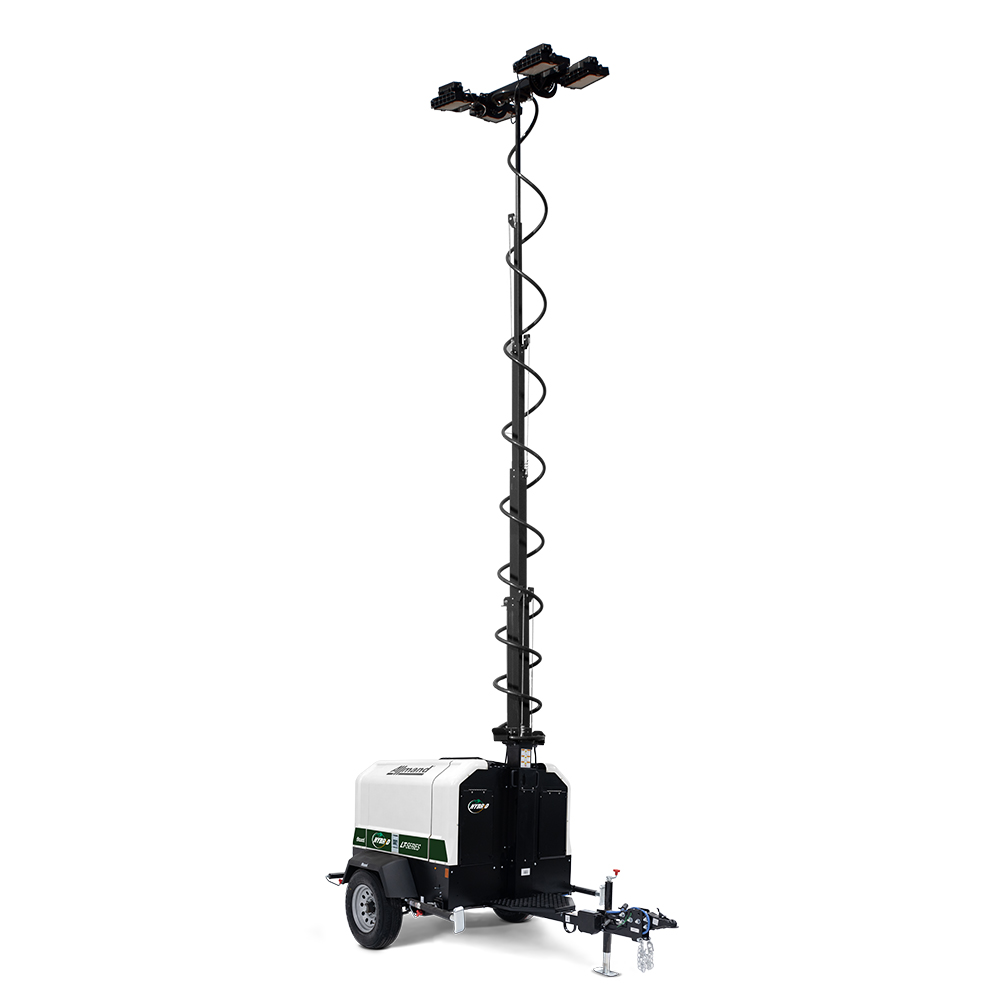

    Hybrid LT-Series™

    The NEW Allmand® Hybrid LT-Series™ light tower unleashes the power of a diesel engine combined with the power of two 7kWh batteries resulting in the longest operating runtime ever in an Allmand light tower. Integrating hybrid technology with Allmand's rugged and durable light tower products delivers the light you need to get the job done.

    For more product support, visit the Hybrid LT-Series™ operations page.

    Diesel & Battery Hybrid

    Technology

    Up to 853 Hour*

    Runtime (250W LED Setting)

    100W-350W

    Variable SMD LED Lighting

    Up to 238,652

    Total Lumens
    Feature

    Features

    Vertical Tower

    Structure - Six-section tubular steel design
    Actuation - Hydraulic cylinder
    Tower Rotation - 359° fixture rotation
    Guide pads - Polyethylene self-lubricating

    Operation Setting Controls

    Switch between battery, engine, hybrid, and re-charge operation modes.

    Fuel Tank

    100 gallon (379 liter) fuel tank extends operation

    Stabilizers

    Five-point design, tongue jack, (2) retractable side outriggers at front of the trailer, (2) retractable side outriggers at the rear of the trailer.

    Gull-Wing Style Doors

    Ease of access to engine and components for service.

    PowerView® 500 Touchscreen Controller

    See real-time run data and information while the unit is in operation.

    Trailer Lighting

    LED - Stop, turn, tail lights / side marker lights / illuminated license plate bracket.

    Variable SMD LED Light Fixtures

    100W-350W high performance variable SMD style LED light fixtures

    Specifications

    At least one product must be displayed. Please select another option to remove this product

    Engine Brand
    Kubota
    Engine Model
    Z482 (Variable Speed)
    Rated Power Output (3,600 RPM) - HP*
    13.3
    Engine Tier
    Tier 4 Final
    Fuel Capacity - gal (L)
    100 (379)
    PMG Alternator Power (kW)
    5
    Rated Voltage
    48 VDC
    Rated Current
    105 A
    Battery Brand
    Vanguard
    Battery Model
    Fi7.0
    Nominal Capacity (per IEC 61960)
    134.6 Ah / 7.0 kWh per battery
    Nominal Voltage (V)
    51.7
    Charge Voltage (per IEC 61960)
    58.8
    Discharge Cutoff Voltage
    35
    Discharge Temperature Range
    -4°F (-20°C) to 140°F (60°C)
    Charge Temperature Range
    32°F (0°C) to 113°F (45°C)
    Durability
    2000 cycles to 80% initial capacity
    Light Type - Variable 350W LED (Standard)
    SMD Style LED, 5000° K Color Temperature
    100W Setting - Light Output - Per Lamp (Lumens)
    20,036
    100W Setting - Lumens Total (4 Lights)
    80,144
    100W Setting - LED Efficiency Lum / Watt
    199.2
    Hybrid Light Only Runtime - 400W (4 Lights at 100W Setting)
    2004 hrs**
    Battery Only Runtime - 400W (4 Lights at 100W Setting)
    22.5 hrs**
    150W Setting - Light Output - Per Lamp (Lumens)
    29,234
    150W Setting - Lumens Total (4 Lights)
    116,936
    150W Setting - LED Efficiency Lum / Watt
    193.7
    Hybrid Light Only Runtime - 600W (4 Lights at 150W Setting)
    1349 hrs**
    Battery Only Runtime - 600W (4 Lights at 150W Setting)
    12.5 hrs**
    250W Setting - Light Output - Per Lamp (Lumens)
    45,760
    250W Setting - Lumens Total (4 Lights)
    183,040
    250W Setting - LED Efficiency Lum / Watt
    182.4
    Hybrid Light Only Runtime - 1000W (4 Lights at 250W Setting)
    853 hrs**
    Battery Only Runtime - 1000W (4 Lights at 250W Setting)
    9.6 hrs**
    350W Setting - Light Output - Per Lamp (Lumens)
    59,663
    350W Setting - Lumens Total (4 Lights)
    238,652
    350W Setting - LED Efficiency Lum / Watt
    171.4
    Hybrid Light Only Runtime - 1400W (4 Lights at 350W Setting)
    703 hrs**
    Battery Only Runtime - 1400W (4 Lights at 350W Setting)
    7.8 hrs**
    Transport Height (Mast Lowered) - in (mm)
    105 (2,672)
    Operating Height (Mast Raised) - in (mm)
    322 (8,179)
    Transport Width - in (mm)
    77 (1,956)
    Operating Width (Outriggers Deployed) - in (mm)
    151 (3,835)
    Transport Length - in (mm)
    126 (3,200)
    Operating Length (Outriggers Deployed) - in (mm)
    168 (4,265)
    Operating Tower Wind Speed Rating - MPH (km/h)
    55 (88.5)
    Trailer Weight - lbs (kg)
    3,250 (1,474)
    Trailer GVWR - lbs (kg)
    5,000 (2,268)
    Number of Units on 48 Flatbed
    7
    Number of Units on 53 Flatbed
    7

    *All power levels are stated gross horsepower as rated by the engines© manufacturer.
    **Initial runtime testing, runtimes are subject to change after final testing by Allmand®.
    Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

    Outlet Packages

    Inlet (Battery Charger)
    120V / 15A (NEMA L5-20P)

    Outlet
    110V / 20A (NEMA 5-20R) GFCI Duplex

    Options

    LED Diffuser Panels


    Reversible Coupler
    2" Bulldog / 3" Pintle
    2-5/16" Bulldog / 3" Pintle


    Custom Paint


    Telematics Package (customer supplied - standard factory lead time for design)

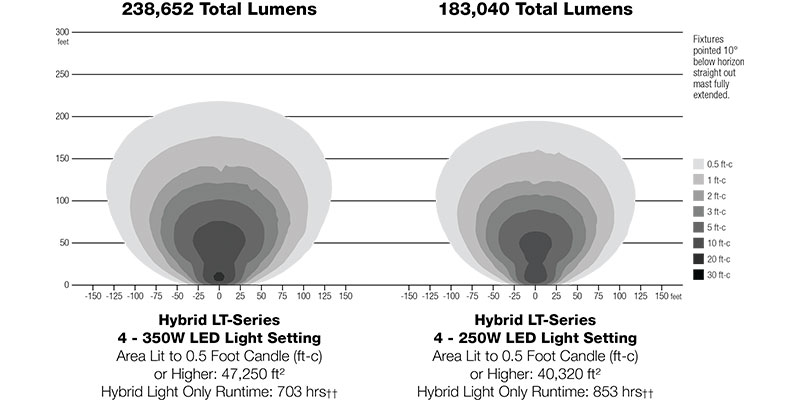

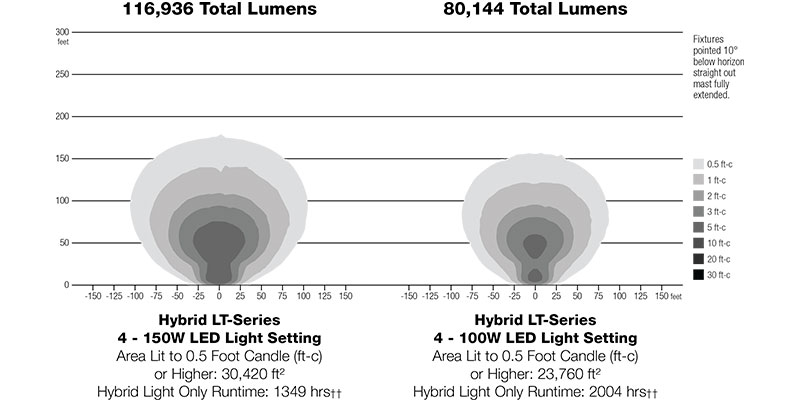

    Light Coverage

    Related Products

    MAXI-LITE® Light Tower
    MAXI-LITE®
    View Product >

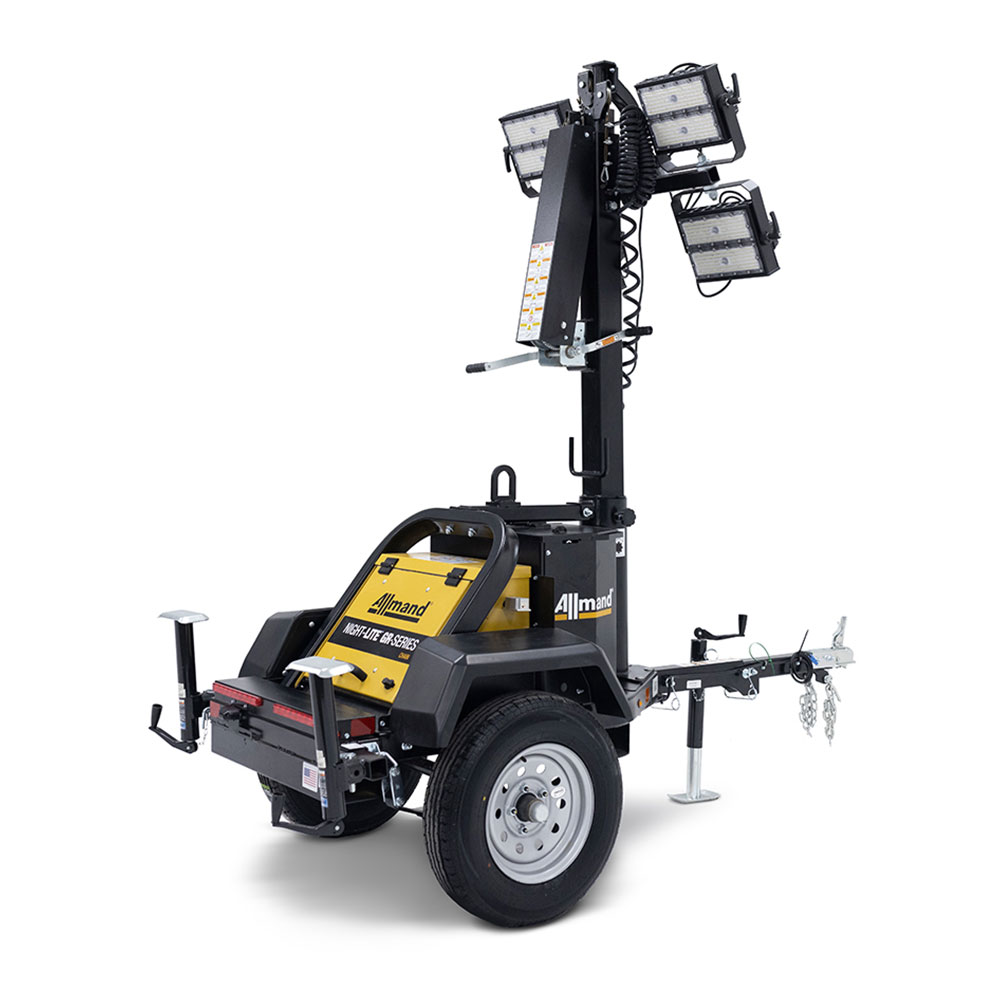

    NIGHT-LITE™ GR-SERIES CHAIN Light Tower
