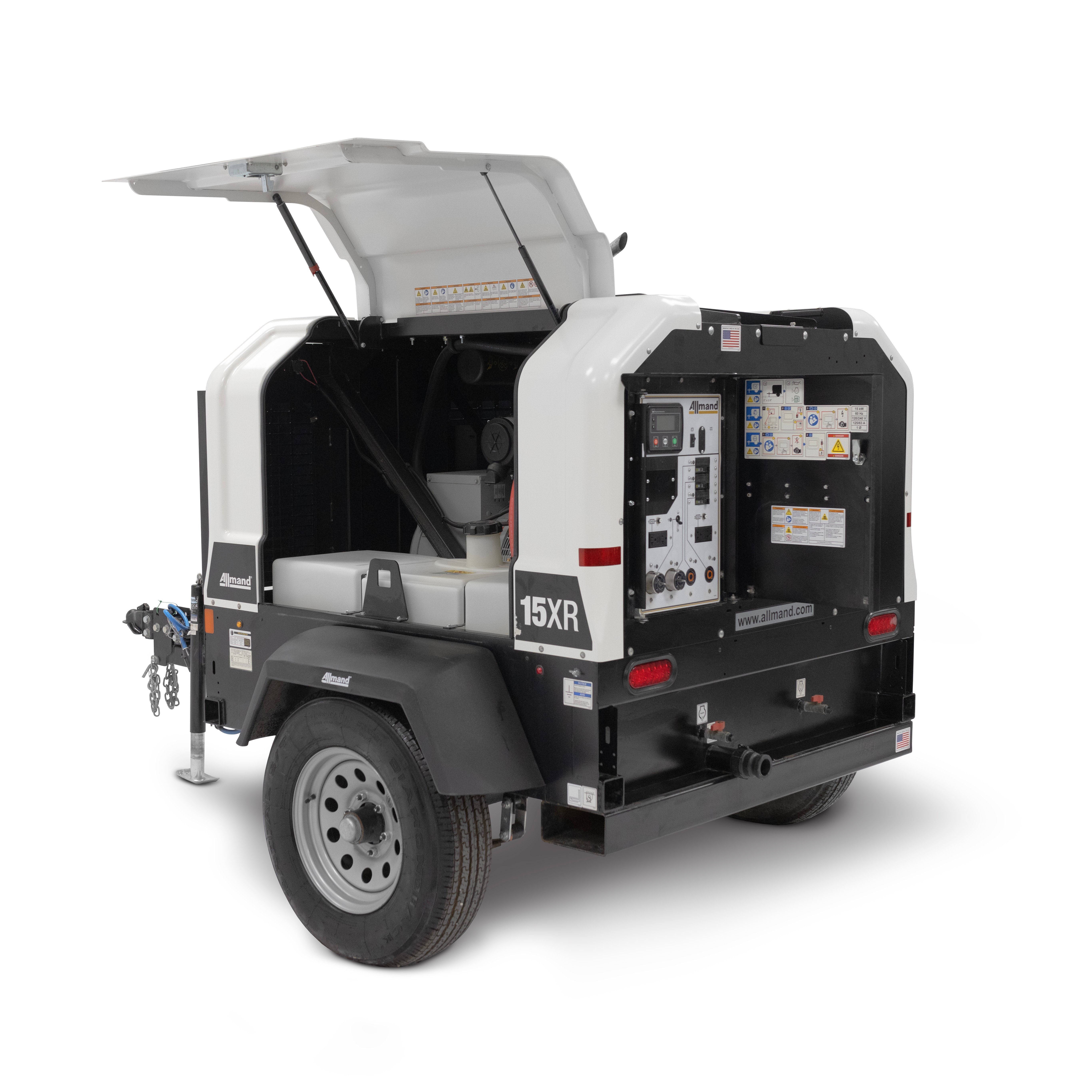

Maxi-Power™ 15XR™
The Maxi-Power 15 XR™ is an Allmand premium single-phase towable generator providing the highest runtime in its class with a 100-gallon fuel tank. The rugged design is the most durable for job site applications, powering job site trailers and work sheds, as well as special events. Allmand has built its reputation in these industries and understands the rigor required to handle the tough job site challenges and needs. Allmand gets the job done.
For a tutorial video and more product support, visit the Maxi-Power 15 XR™ operations page.
Features
15 kW / 15 kVA Single-Phase Towable Generator
Remove
All Steel Construction with Durable Powder Coat Finish
Remove
Perkins 1.5 Turbo Engine
Remove
100 Gallon Fuel Tank for Extended Runtime
Remove
Deep Sea 4520 Controller with On-Screen Fuel Gauge, Low Fuel Shutdown, Scheduling, and Auto-Start
Remove
Standard Outlet Package
(2) 20A GFCI, (2) 30A Twist Lock, (2) 50A 4-wire Twist Lock (single-phase only)
Emergency Stop
Remove
Tubular Axle with Elliptical Leaf Springs
Remove
Reversible Coupler
Adjustable height - 2" ball / 3" pintle
Heavy-Duty Battery
Remove
Two-Stage Engine Air Filter
Remove
Specifications
| Maxi-Power™ 15XR™ | |
|---|---|
| Engine Brand | Perkins |
| Engine Model | 403F-15T |
| Prime Power - kVA (kW)*** | 15 (15) |
| Engine Oil Change Interval (hrs) | 500 |
| Dry Weight (lbs) | 2,417 |
| Height With Towing Frame (in) | 66 in (1676 mm) |
| Length With Towing Frame (in) | 126 in (3,200 mm) |
| Width With Towing Frame (in)) | 77 in (1,956 mm) |
| Number of Units on 48 Flatbed | 7 |
| Number of Units on 53 Flatbed | 7 |
*Prime generator electrical output per Allmand® testing.
**Based on one hour run test full fuel tank consumption.
***All power levels are stated gross horsepower as rated by the engines manufacturers
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual or www.allmand.com website for complete warranty details.
Options
Oulet Package Option:
(2) 20A GFCI
(2) 30A Twist Lock
(2) 50A RV Outlets
Battery Charger (loose cord)
Battery Heater (loose cord)
Cold Weather Package:
Block Heater
Arctic Package (Only Available with Cold Weather Package)
Heated Fuel/Water Separator
Radiator Cover
Customer Telematics (Contact Factory for lead time)
Skid Mount
CSA
2" Bulldog Coupler
2-5/16" Bulldog Coupler
Intake Air Shutdown
Lockable Battery Disconnect
Custom Paint
