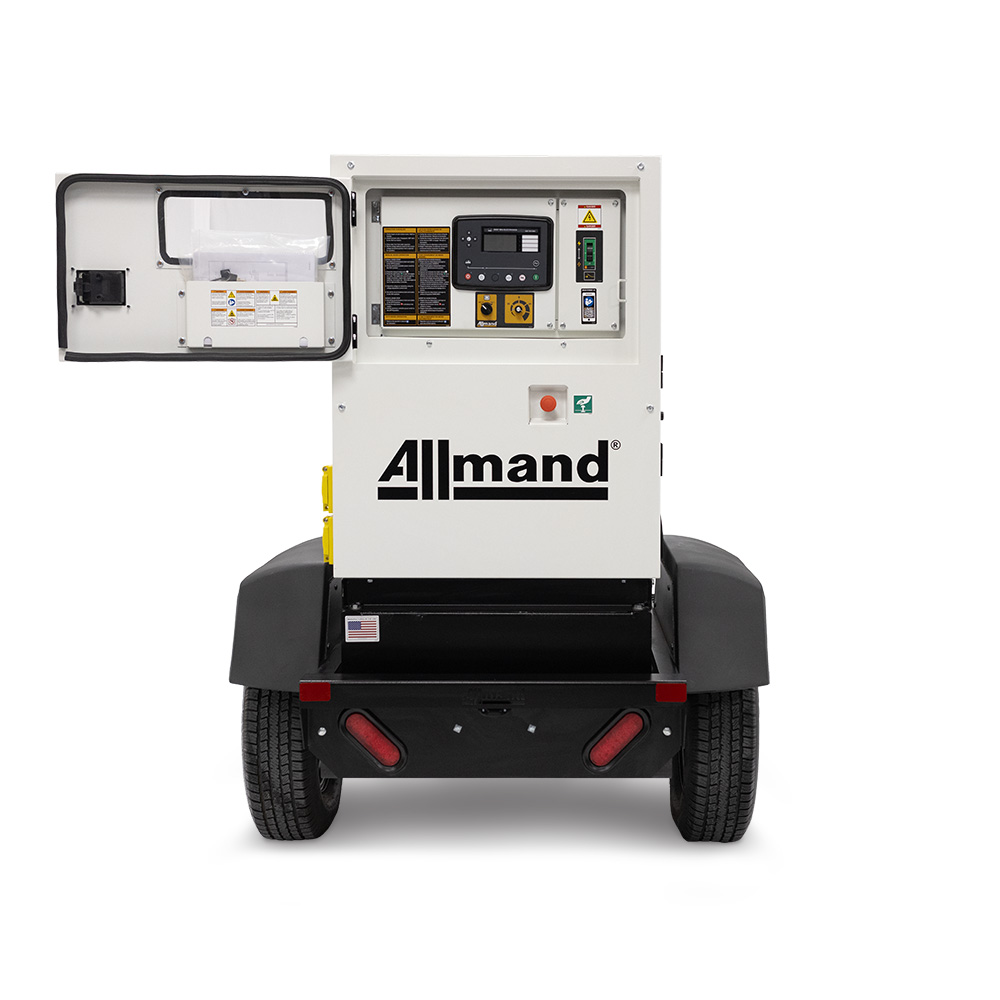

Maxi-Power™ 25
Mobile Generator
Maximize the power of your job site with the Maxi-Power™ 25 Mobile Generator. With a frequency switch for flexibility of jobsite power needs and 15" tires for longer wear and greater towing capabilities. This unit also has forklift pockets, which set it apart from the others in the lineup.
For a tutorial video and more product support, visit the Maxi-Power™ operations page.
27.5
Standby Power (kVA)
25
Prime Power (kVA)
31+
Run Time (Hrs)
63
Sound Level (dBA)
Features
Fluid Containment System (FCS)
Holds 110% of all on-board fluids.
Large Capacity Fuel Tank
Allows over 24 hour run time at full load.
EFPA (Electric Fuel Primer & Air-Bleed) Pump
No need to bleed air if fuel runs out.
Oversized Electrical Lugs
Easy to connect leads (with no copper shaving).
Curbside Fluid Maintenance
Ease of serviceability.
Lockable Switch / Voltage Selector
Consistency on jobsite, keeping it where it was set by the operator on-site.
Voltage Single Phase – Switchable
120 V / 240 V
Voltage Three Phase – Switchable
120 V / 208 V or 277 V / 480 V
Standard Programmable Start / Stop for Standby Applications
Stand External Fuel Connections
Trailer – Poly Fenders with Steel Steps
Trailer – Removable Steel Rear Bumper
Specifications
| Maxi-Power™ 25 | |
|---|---|
| Engine Brand | Isuzu |
| Engine Model | 4LE2T |
| Engine Tier | Tier 4 Final |
| Output @ Rated Speed (1,800 RPM) - HP**** | 33 |
| Standby Power - kVA (kW) | 27.5 |
| Prime Power - kVA (kW)*** | 25 |
| Battery (V) | 12 |
| Voltage Regulation Percentage | 0.50% |
| Amperage Single Phase 120 V (A) | 60 x 2 |
| Amperage Single Phase 240 V (A) | 60 |
| Amperage Three Phase 120 V / 208 V (A) | 69 |
| Amperage Three Phase 277 V / 480 V (A) | 30 |
| Excitation | Brushless with AVR |
| Armature Connection Layout | Star with Neutral/Zig/Zag |
| Insulation | Class H4 |
| Integral Fuel Tank Capacity (gal) | 52 |
| Runtime @ Full Load (hrs) | 31+ |
| Sound Level @ 23 ft. (No Load) - dBA | 63 |
| Engine Oil Change Interval (hrs) | 500 |
| Engine Fuel Filter Change Interval (hrs) | 500 |
| Dry Weight (lbs) | 2,425 |
| Operating Wet Weight (lbs) | 2,780 |
| Trailer GVWR (lbs) | 2,900 |
| Number of Units on 48 Flatbed | 7 |
| Number of Units on 53 Flatbed | 7 |
*Unit runs at full load for 24+ hours.
**See operator’s manual or www.allmand.com website for complete warranty details.
***Prime generator electrical output per Allmand® testing.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.
Options
Camlocks
Interchangeable electrical connectors that can be used in either single or three phase modes
Single set of 5 camlocks
Arctic Package
Battery heater pad - 50W 120V battery heater blanket
Block Heater - Thermosiphon 1,000W 120V with thermostat
Battery Charger
Battery Charger
5A 120V battery charger with 3 stage charge cycle
Hitch Coupler Options:
2" Ball
2" Bulldog
2-5/6" Ball
2-5/16" Bulldog
3" Lunette Ring
Telematics Package (Customer Supplied - consult factory for lead times)
Lockable Battery Disconnect
Skid Mounts
