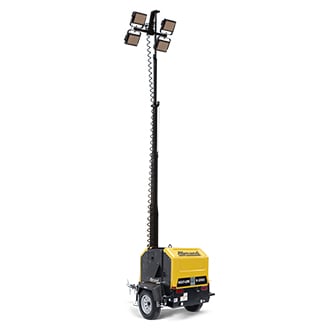

Night-Lite™ V-Series®
An ROI-driven solution, the Night-Lite™ V-Series® is built with the efficiency, durability and performance you demand. This light tower is great for special events, building construction and infrastructure construction. This unit is made with a convenient fuel fill neck for quick refueling allowing you to get back to work fast and stay on top of any job. With up to 228,560 total lumens from four LED light fixtures and eco-friendly sized units fitting 20 on a 53ft flatbed trailer, the Night-Lite V-Series is perfect for any jobsite.
For a tutorial video and more product support, visit the Night-Lite™ V-Series® operations page.
350W
SMD LED Lighting
228,560
Total Lumens
Up to 155 Hours
Operating Runtime
7 to 8kW
Prime Power
Features
Sequenced Lighting System (SLS™)
Automatically delays engine shutdown to turn off lights and prevent the generator from shutting down while under load.
Remote Engine Oil and Coolant Drain
Easily accessible at rear of trailer.
Fluid Containment System (FCS)
Holds up to 110% of all on-board fluids. (Optional)
Stabilizers
Three-point design, tongue jack, (2) retractable side outriggers at front of trailer.
Frame
Formed, welded steel frame.
Vertical Tower
Structure - Five-section tubular steel design
Actuation - Manual winch, standard
Tower rotation - 359° fixture rotation
Guide pads - Polyethylene self-lubricating
Trailer Lighting
LED - Stop, turn, tail lights / side marker lights / illuminated license plate bracket.
Standard LED 4 Light Fixtures
350W high performance SMD style LED light fixtures.
Specifications
| CAT / Perkins 1.1 | Kubota D1005 | |
|---|---|---|
| Engine Brand | Caterpillar / Perkins | Kubota |
| Engine Model | 1.1 | D1005 |
| Rated Power Output (3,600 RPM) - HP* | 13.8 | 11.6 |
| Engine Tier | Tier 4 Final | Tier 4 Final |
| Fuel Capacity - gal (L) | 45 (170) | 45 (170) |
| Light Type - Variable 350W LED (Standard) | SMD Style LED, 5000° K Color Temperature | SMD Style LED, 5000° K Color Temperature |
| Metal Halide Wattage (per lamp) | 1,250 | 1,250 |
| Metal Halide Lumens (per lamp) | 57,538 | 135,500 |
| Metal Halide Lumens (total) | 230,152 - 4 Lights | 542,000 - 4 Lights |
| Transport Height (Mast Lowered) - in (mm) | 102 (2,591) | 102 (2,591) |
| Operating Height (Mast Raised) - in (mm) | 295 (7,498) | 295 (7,498) |
| Transport Width - in (mm) | 58 (1,473) | 58 (1,473) |
| Operating Width (Outriggers Deployed) - in (mm) | 105 (2,667) | 105 (2,667) |
| Transport Length - in (mm) | 110 (2,789) | 110 (2,789) |
| Operating Tower Wind Speed Rating - MPH (km/h) | 55 (88) | 55 (88) |
| Trailer Weight - lbs (kg) | 1,885 (855) | 1,885 (855) |
| Trailer GVWR - lbs (kg) | 2,200 (998) | 2,200 (998) |
| Number of Units on 48 Flatbed | 18 | 18 |
| Number of Units on 53 Flatbed | 20 | 20 |
* Balloon light only included in raised dimension – balloon light is removed for transportation.
** Prime generator electrical output per Allmand® testing.
*** Based on one hour run test full fuel tank consumption.
**** All power levels are stated gross horsepower as rated by the engines© manufacturers
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual or www.allmand.com website for complete warranty details.
Outlet Packages
Standard
1 - 20A 120 V Duplex GFCI Receptacle (NEMA 5-20R)
1 - 30 A 240 V 3-Pole, 4-Wire Twist Lock Receptacle (NEMA L14-30R)
1 - 30 A 120 V 2-Pole, 3-Wire RV Receptacle (NEMA TT-30R)
Options
Metal Halide Package
- (4) Metal Halide light fixtures
Deep Sea L401 LSC Package
- Deep Sea L401 LSC automatically starts engine at sunset and shuts down engine at sunrise – programmable for user preferences.
- Emergency stop switch on exterior of machine
- Remote start connections terminal
- Heavy-battery
Engine Air Intake Shut-Off Valve
Electric Winch
Reversible Coupler
- 2" Ball Coupler / 3" Pintle
- 2" Bulldog / 3" Pintle
Telematics Package
(Customer Supplied) Must Contact Factory for Lead Time Availability
CSA Certification
Cold Weather Package
- Block Heater
- Heavy-duty battery (8 kW only)
Battery Disconnect
Galvanized Tower
Custom Paint
Skid Mount
Fluid Containment System (FCS)
Combination Hour Meter & Fuel Level Gauge
LED Light Diffusers

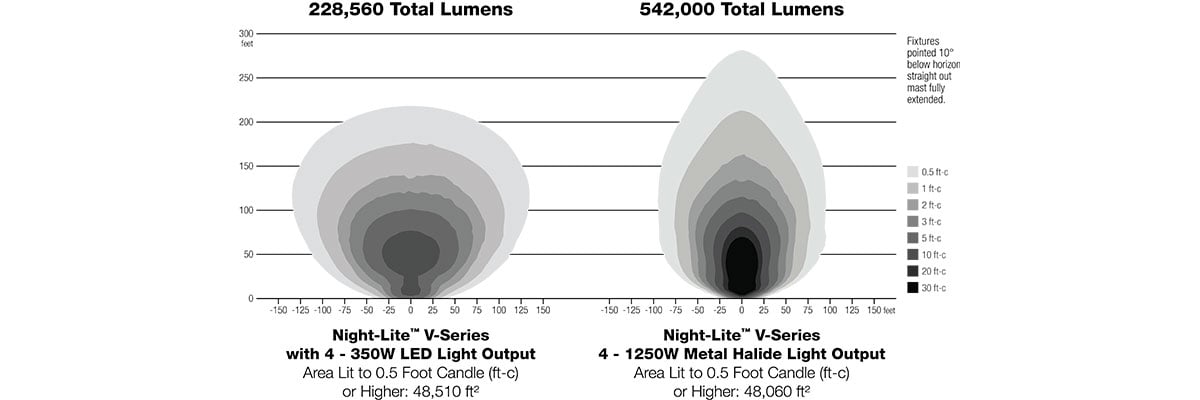

Light Coverage
