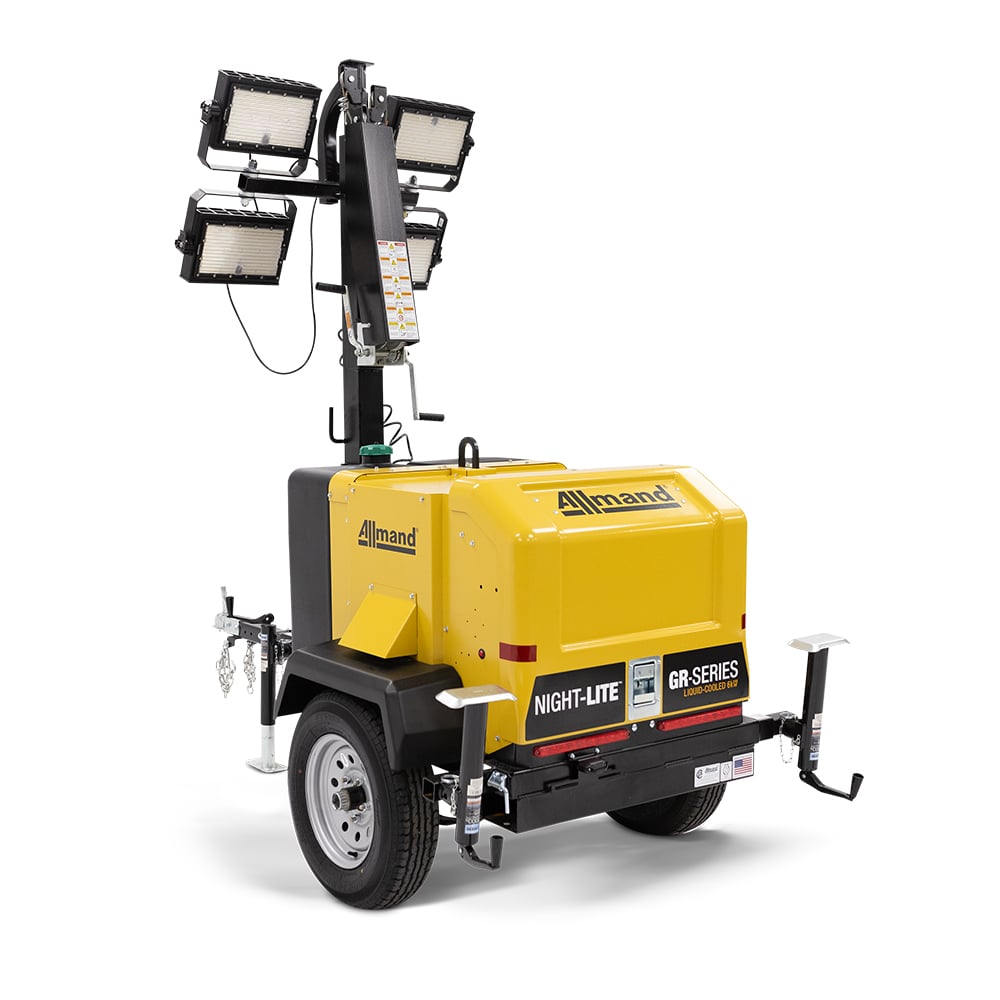

Night-Lite™ GR-Series Liquid-Cooled 6kW
GR-Series
Night-Lite™ GR-Series Liquid-Cooled 6kW light tower: Power. Endurance. Savings. Get more work done with this 6kW powerhouse.
- Longest Run Time in Its Class: With up to 206 hours of operation (350W LEDs) on a single 63-gallon tank, you can run non-stop ensuring your site is never dark.
- Brighter and Wider Illumination: Experience superior visibility with 228,560 total lumens that cover 19,942 ft² more area than the competition, ensuring a safer and more productive work zone.
- Lowest Total Cost of Ownership: The 1,000-hour oil change interval is the best in the industry, significantly reducing downtime, labor, and maintenance expenses over the life of the tower.
For a tutorial video and more product support, visit the Night-Lite™ GR-Series Liquid-Cooled 6kW operations page.
350kW
SMD LED Lighting
230,152
Total Lumens
Up to 206 Hours
Operating Runtime
6kW
Prime Power
Features
Vertical Tower
Structure - Four-section tubular steel design
Actuation - Dual handle manual winch, standard
Tower rotation - 355° fixture rotation
Guide pads - Polyethylene self-lubricating
Forklift Pockets and Lifting Eye
Allow for easy loading and unloading of up to twenty units on a 53' flatbed trailer.
Fuel Tank
63 gallon (238 liter) fuel tank extends operation.
Stabilizers
Three-point design, tongue jack, (2) retractable side outriggers at rear of trailer.
Foldable Tongue
Takes up less space on the job-site and in your yard.
Deep Sea L401 Controller
Engine start/stop operation, scheduling, voltage reading, fuel level reading, low fuel level shutdown, etc.
Trailer Lighting
LED - Stop, turn, tail lights / side marker lights / illuminated license plate bracket.
Standard LED 4 Light Fixtures
350W high performance SMD style LED light fixtures.
Specifications
| CAT / Perkins 1.1 | Kubota D1005 | |
|---|---|---|
| Engine Brand | Caterpillar / Perkins | Kubota |
| Engine Model | 1.1 | D1005 |
| Engine Tier | Tier 4 Final | Tier 4 Final |
| Transport Height (Mast Lowered) - in (mm) | 99 (2,502) | 99 (2,502) |
| Operating Height (Mast Raised) - in (mm) | 276 (7,010) | 276 (7,010) |
| Transport Width - in (mm) | 51 (1,283) | 51 (1,283) |
| Operating Width (Outriggers Deployed) - in (mm) | 98 (2,489) | 98 (2,489) |
| Transport Length - in (mm) | 107 (2,724) | 107 (2,724) |
| Operating Tower Wind Speed Rating - MPH (km/h) | 65 (105) | 65 (105) |
| Trailer Weight - lbs (kg) | 1,355 (615) | 1,355 (615) |
| Trailer GVWR - lbs (kg) | 2,000 (907) | 2,000 (907) |
| Number of Units on 48 Flatbed | 18 | 18 |
| Number of Units on 53 Flatbed | 20 | 20 |
*Prime generator electrical output per Allmand® testing.
**Based on one hour run test full fuel tank consumption.
***All power levels are stated gross horsepower as rated by the engines© manufacturers.
†Based on 5 yrs of service and industry residual value.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice.
See operator’s manual or www.allmand.com website for complete warranty details.
Options
250W LED Lights
LED Diffuser Panels
CSA Certification
Artic Package
- Block Heater
- Heavy-duty battery
Engine Air Intake Shut-Off Valve
Heated Fuel-Water Separator
Electric Winch
Coupler Options
- Lunette Ring
- Bulldog Hitch
- Reversible Coupler Ball and Lunette Ring (no Bulldog)
Galvanized Tower
Telematics Package
(Customer Supplied) Must Contact Factory for Lead Time Availability
Custom Paint
Battery Disconnect
Key Start Control with Hour/Fuel Gauge

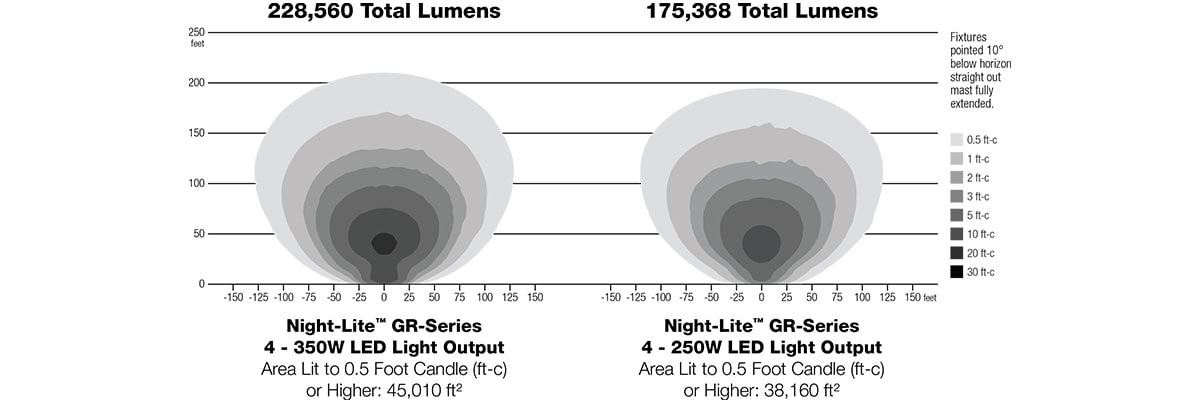

Light Coverage
