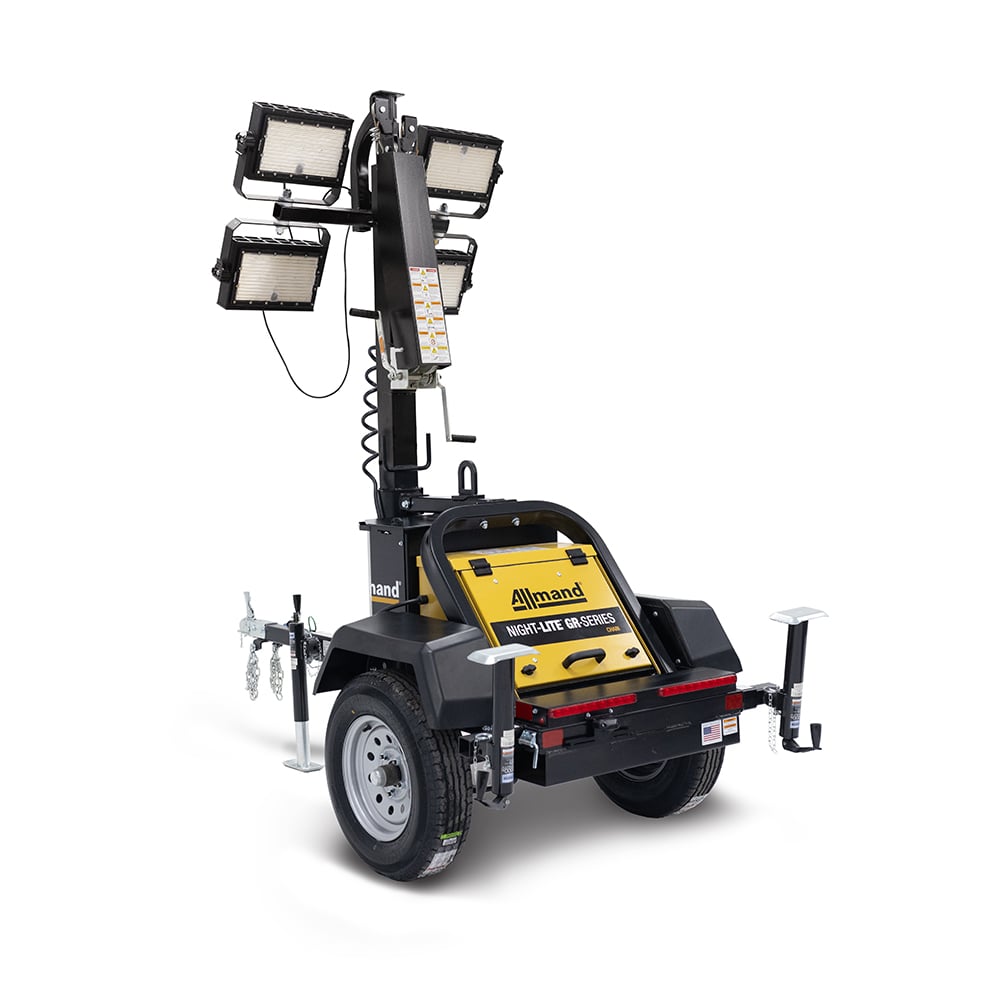

Night-Lite™ GR-Series Chain
GR-Series
Simpler, lighter, and lower cost, the Night-Lite™ GR-Series Chain towable light towers are the most easily deployed and easy-to-maneuver units in its class. Flexibility in power is inherent with this unit allowing for any power source with 15 amp or 20 amp connections to illuminate a jobsite. To increase the impact of the Night-Lite™ GR-Series Chain light tower, the ability to daisy chain units is a built-in feature. Four LED light fixtures with 175,368 total lumens lighting will provide plenty of brightness for any space. This unit saves money immediately with the size capability to ship 20 units on a truck.
For a tutorial video and more product support, visit the Night-Lite™ GR-Series Chain operations page.
250W
SMD LED Lighting
175,660
Total Lumens
23 ft (7m)
Raised Tower Height
15A or 20A
Connector
Features
Vertical Tower
Structure - Four-section tubular steel design
Actuation - Dual handle manual winch, standard
Tower rotation - 355° fixture rotation
Guide pads - Polyethylene self-lubricating
Forklift Pockets and Lifting Eye
Allow for easy loading and unloading of up to twenty-two units on a 53' flatbed trailer.
Chaining Capability
Up to two units off a single power source
Stabilizers
Three-point design, tongue jack, (2) retractable side outriggers at rear of trailer.
Foldable Tongue
Takes up less space on the job-site and in your yard
Manual/Timer/Photocell Controls
Unit is equipped with a timer controller and a photocell for either manual, scheduled, or dawn to dust on/off functionality
Trailer Lighting
LED - Stop, turn, tail lights / side marker lights / illuminated license plate bracket.
Standard LED 4 Light Fixtures
250W high performance SMD style LED light fixtures.
Specifications
| Night-Lite™ GR-Series Chain | |
|---|---|
| Light Type - Variable 350W LED (Standard) | SMD Style LED, 5000° K Color Temperature |
| Metal Halide Wattage (per lamp) | 250 |
| Metal Halide Lumens (per lamp) | 43,915 |
| Metal Halide Lumens (total) | 175,660 - 4 Lights |
| Transport Height (Mast Lowered) - in (mm) | 99 (2,502) |
| Operating Height (Mast Raised) - in (mm) | 276 (7,010) |
| Transport Width - in (mm) | 48 (1,245) |
| Operating Width (Outriggers Deployed) - in (mm) | 94 (2,388) |
| Transport Length - in (mm) | 77 (1,956) |
| Operating Tower Wind Speed Rating - MPH (km/h) | 50 (80) |
| Trailer Weight - lbs (kg) | 750 (340) |
| Trailer GVWR - lbs (kg) | 1,200 (544) |
| Number of Units on 48 Flatbed | 20 |
| Number of Units on 53 Flatbed | 22 |
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.
Outlet Packages
Inlet (No Chain)
120V / 15A (NEMA 5-15R)
Inlet (Chain)
120V / 20A (NEMA L5-20P)
Outlet
120V / 20A (NEMA 5-20R) GFCI Duplex
Options
LED Diffuser Panels
CSA Certification
Coupler Options
- Lunette Ring
- Bulldog Hitch
- Reversible Coupler Ball and Lunette Ring (no Bulldog)
Galvanized Tower
Custom Paint

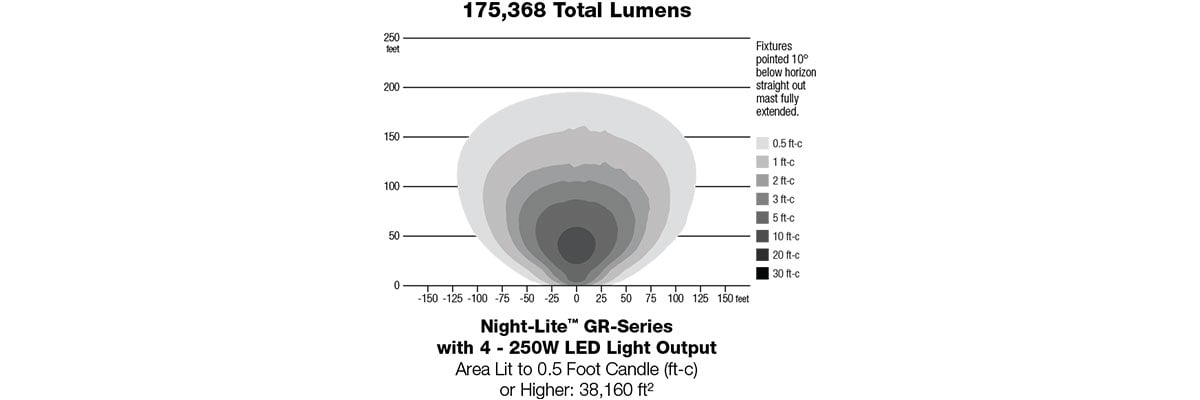

Light Coverage
