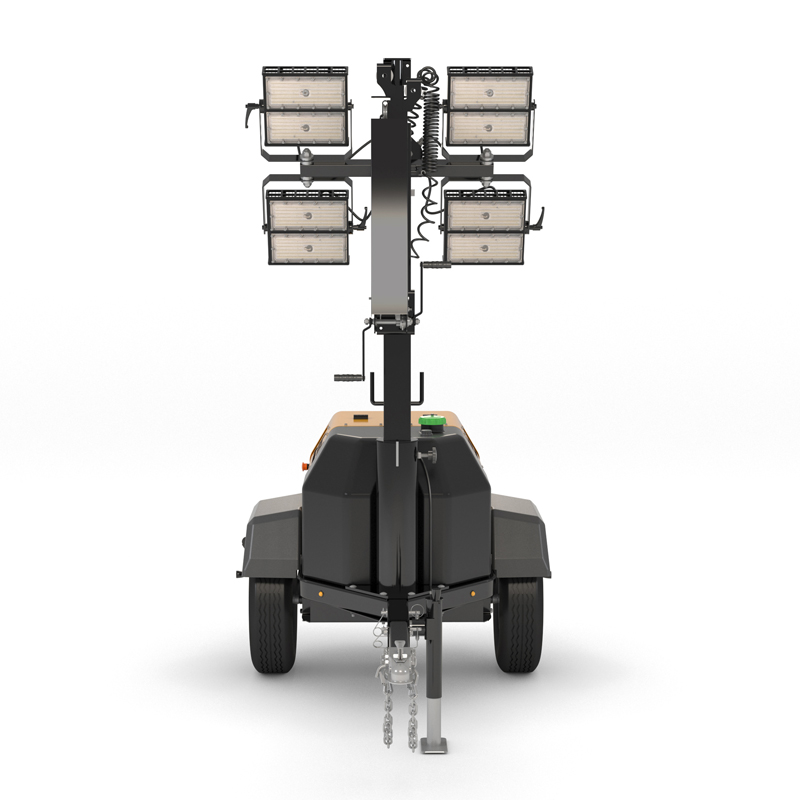

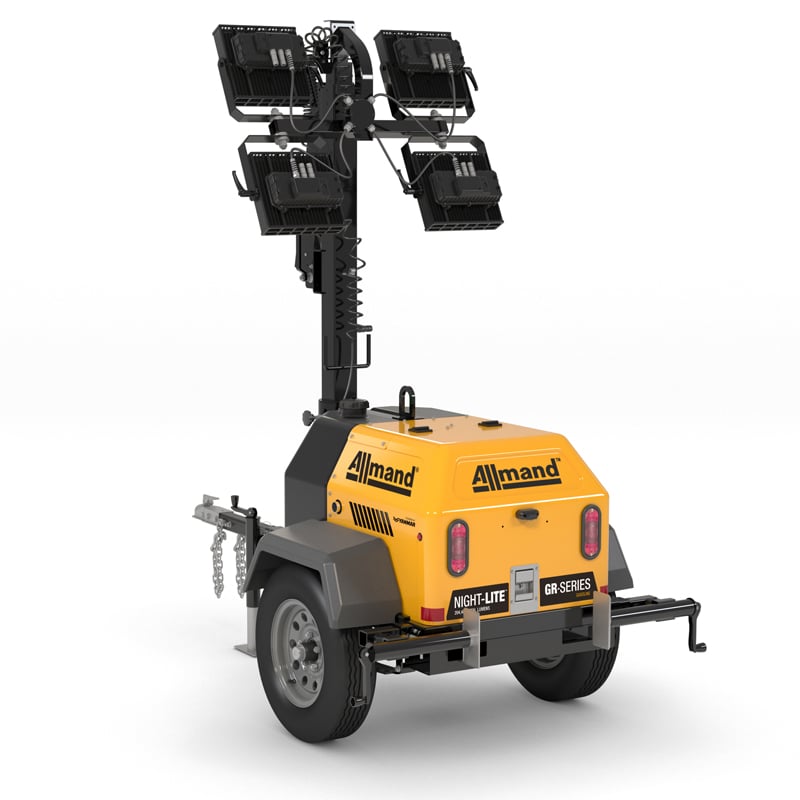

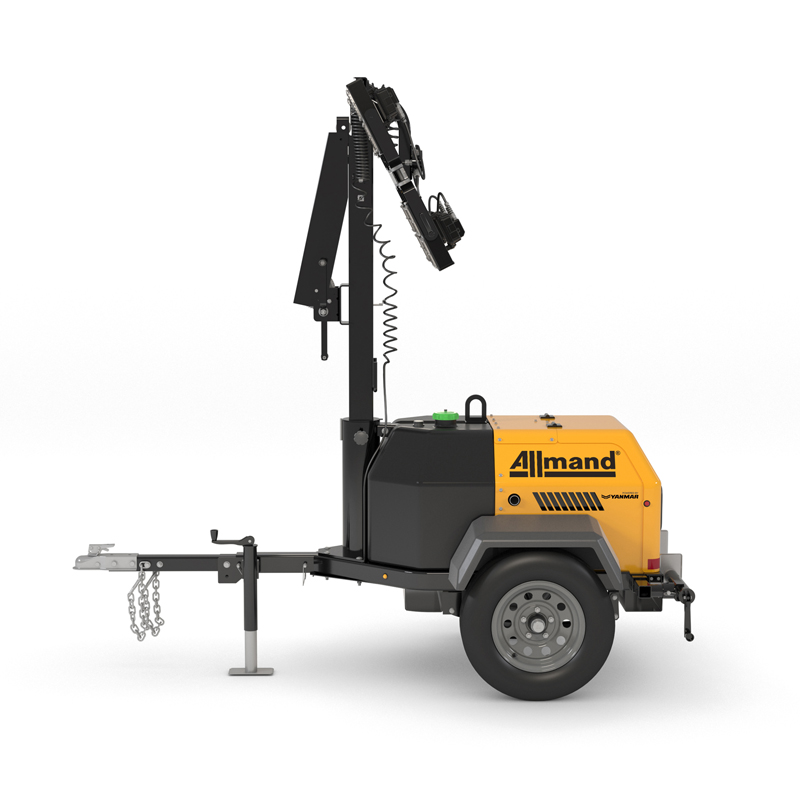

Night-Lite™ GR-Series Air Cooled
GR-Series
The Night-Lite™ GR-Series Air Cooled light tower is the compact workhorse any job site needs. The air-cooled Yanmar diesel engine results in ample power for the LED fixtures, and the 48-gallon fuel tank, provides up to 257 hours of run time with 750-hour oil change intervals. This unit features four LED fixtures with 204,488 total lumens and 38,610 ft2 area at 0.5 ft-c, resulting in a 19% increase in lumen output and 19,084 ft2 additional area of light, when compared to the leading competitor! The Night-Lite TM GR-Series Air Cooled light tower provides plenty of light for any space working longer, bigger and brighter so you can be out on a job site getting more work done.
For a tutorial video and more product support, visit the Night-Lite™ GR-Series Air Cooled operations page.
Features
Mast
Flexible lighting with a vertical mast extending to 23 feet
Deep Sea L401 Controller
Engine start/stop operation, scheduling, voltage reading, fuel level reading, low fuel level shutdown, etc.
Compact Design
Fit 20 units on a 48 ft flatbed, 22 units on a 53 ft flatbed, more units for the same shipping cost
Heavy-duty Leveling Jacks
Vertical Tower
Structure - Four-section tubular steel design
Actuation - Dual handle manual winch, standard
Tower rotation - 355° fixture rotation
Guide pads - Polyethylene self-lubricating
Controls
Simple, easy to use
Easy Access
Wide area rear door for ease of access maintenance
CSA Approved
SMD Style LEDs
Forklift Pockets
Easily load and unload equipment
Lifting Eye
359 degree rotation
Increase flexibility in light spread
Standard Trailer Coupler 2” ball
Stabilizers
Three-point design, tongue jack, (2) retractable side outriggers at rear of trailer.
Service Interval
750 hour oil change interval
Fuel Tank
48-gallon fuel tank extends operation
Up to 257 hour run time
Air-cooled engine
Operating Temperatures
Of -20 degrees Fahrenheit to 120 degrees Fahrenheit
12% better Total Cost of ownership†
Than a leading competitor
Welded Steel Frame with Lockable Door
(4) LED Light Fixtures 350W
Each 51,112 per lamp, 204,488 total
(4) LED Light Fixtures 250W
Each 38,081 per Lamp, 152,324 Total
Specifications
| Night-Lite™ GR-Series Air Cooled | |
|---|---|
| Engine Brand | Yanmar |
| Rated Power Output (3,600 RPM) - HP* | 5.8 |
| Engine Tier | Tier 4 Final |
| Fuel Capacity - gal (L) | 48 (181.7) |
| 250W Setting - Light Output - Per Lamp (Lumens) | 38,081 |
| 250W Setting - Lumens Total (4 Lights) | 152,324 |
| Transport Height (Mast Lowered) - in (mm) | 8.2 (2489.2) |
| Operating Width (Outriggers Deployed) - in (mm) | 4 (1244.6) |
| Operating Length (Outriggers Deployed) - in (mm) | 6.4ft (1955.8mm) |
| Trailer Weight - lbs (kg) | 1000 (453.60) |
| Trailer GVWR - lbs (kg) | 1750 (793.78) |
*Prime generator electrical output per Allmand® testing.
** Based on one hour run test full fuel tank consumption.
*** All power levels are stated gross horsepower as rated by the engines© manufacturers.
†Based on 5 yrs of service and industry residual value
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.
Options
(4) LED Light Fixtures 250W
Skid Mount
Custom Paint
