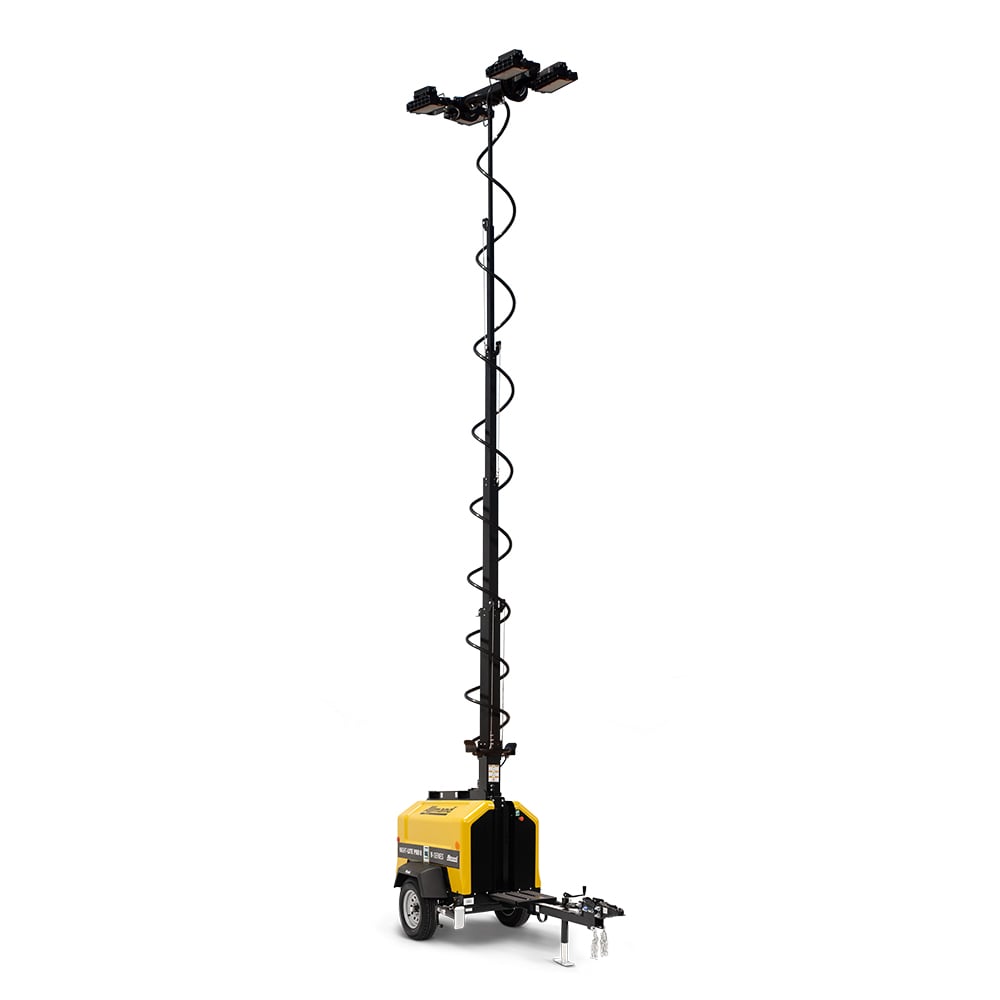

Night-Lite Pro II® V-Series®
The Night-Lite Pro II® V-Series® features a vertical hydraulic mast with power cables encased in Nycoil flexible tubing to eliminate tangling and stretching of the tower wiring. Equipped with 350W LED fixtures, this unit provides up to 228,560 total lumens. Maintain efficiency through working hours with our 30 gallon polyethylene fuel tank, allowing work to get done all through the night.
For a tutorial video and more product support, visit the Night-Lite Pro II® V-Series® operations page.
350W
SMD LED Lighting
228,560
Total Lumens
Up to 103 Hours
Operating Runtime
7 to 8kW
Prime Power
Features
Sequenced Lighting System (SLS™)
Automatically delays engine shutdown to turn off lights and prevent the generator from shutting down while under load.
Remote Engine Oil Drain
Easily accessible at rear of trailer.
Fluid Containment System (FCS)
Holds up to 110% of all on-board fluids. (Optional)
Stabilizers
Four-point design, tongue jack, (2) retractable side outriggers at front of trailer, rear jack.
Gull-Wing Style Doors
Ease of access to engine and components for service.
Vertical Tower
Structure - Six-section tubular steel design
Actuation - Hydraulic cylinder
Tower Rotation - 359° fixture rotation
Guide pads - Lubricatinghylene self-lubricating.
Forklift Pockets and Lifting Eye
Allow for easy loading and unloading of up to twelve units on a flatbed trailer.
Standard LED 4 Light Fixtures
350W high performance SMD style LED light fixtures.
Specifications
| CAT / Perkins 1.1 | Kubota D100 | Kubota D1105 | |
|---|---|---|---|
| Engine Brand | Caterpillar / Perkins | Kubota | Kubota |
| Engine Model | 1.1 | D1005 | D1105 |
| Rated Power Output (3,600 RPM) - HP* | 13.8 | 11.6 | 13.5 |
| Engine Tier | Tier 4 Final | Tier 4 Final | Tier 4 Final |
| Fuel Capacity - gal (L) | 30 (114) | 30 (114) | 30 (114) |
| Light Type - Variable 350W LED (Standard) | SMD Style LED, 5000° K Color Temperature | SMD Style LED, 5000° K Color Temperature | SMD Style LED, 5000° K Color Temperature |
| Metal Halide Wattage (per lamp) | 1,250 | 1,250 | 1,250 |
| Metal Halide Lumens (per lamp) | 135,500 | 135,500 | 135,500 |
| Metal Halide Lumens (total) | 542,000 - 4 Lights | 542,000 - 4 Lights | 542,000 - 4 Lights |
| Transport Height (Mast Lowered) - in (mm) | 100 (2,530) | 100 (2,530) | 100 (2,530) |
| Operating Height (Mast Raised) - in (mm) | 319 (8,108) | 319 (8,108) | 319 (8,108) |
| Transport Width - in (mm) | 51 (1,283) | 51 (1,283) | 51 (1,283) |
| Operating Width (Outriggers Deployed) - in (mm) | 101 (2,555) | 101 (2,555) | 101 (2,555) |
| Transport Length - in (mm) | 120 (3,043) | 120 (3,043) | 120 (3,043) |
| Operating Tower Wind Speed Rating - MPH (km/h) | 55 (88) | 55 (88) | 55 (88) |
| Trailer Weight - lbs (kg) | 1,950 (885) | 1,950 (885) | 1,950 (885) |
| Trailer GVWR - lbs (kg) | 2,200 (998) | 2,200 (998) | 2,200 (998) |
| Number of Units on 48 Flatbed | 16 | 16 | 16 |
| Number of Units on 53 Flatbed | 16 | 16 | 16 |
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.
Outlet Packages
1 - 20A 120 V Duplex GFCI Receptacle (NEMA 5-20R)
1 - 30 A 240 V 3-Pole, 4-Wire Twist Lock Receptacle (NEMA L14-30R)
1 - 30 A 120 V 2-Pole, 3-Wire RV Receptacle (NEMA TT-30R)
Options
Metal Halide Package
- (4) Metal Halide light fixtures
Deep Sea L401 LSC Package
- Deep Sea L401 LSC automatically starts engine at sunset and shuts down engine at sunrise – programmable for user preferences.
- Emergency stop switch on exterior of machine
- Remote start connections terminal
- Heavy-duty battery
Arctic Package
(only available with Cold Weather Package)
- Heated fuel / water separator
- Radiator cover
- Low fuel shut-off system
Battery Disconnect
Reversible Coupler
- 2" Bulldog / 3" Pintle
Custom Paint
CSA Certification
Cold Weather Package
- Block Heater
- Arctic hydraulic fluid
- Heavy-duty battery
Engine Aire Intake Shut-Off Valve
Telematics Package
(Customer Supplied) Must Contact Factory for Lead Time Availability
Skid Mount
LED Light Diffusers

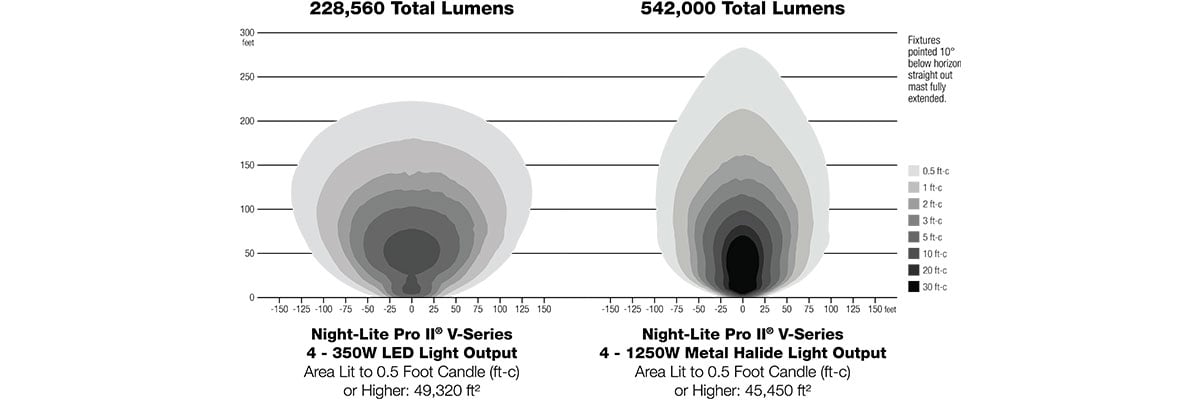

Light Coverage
