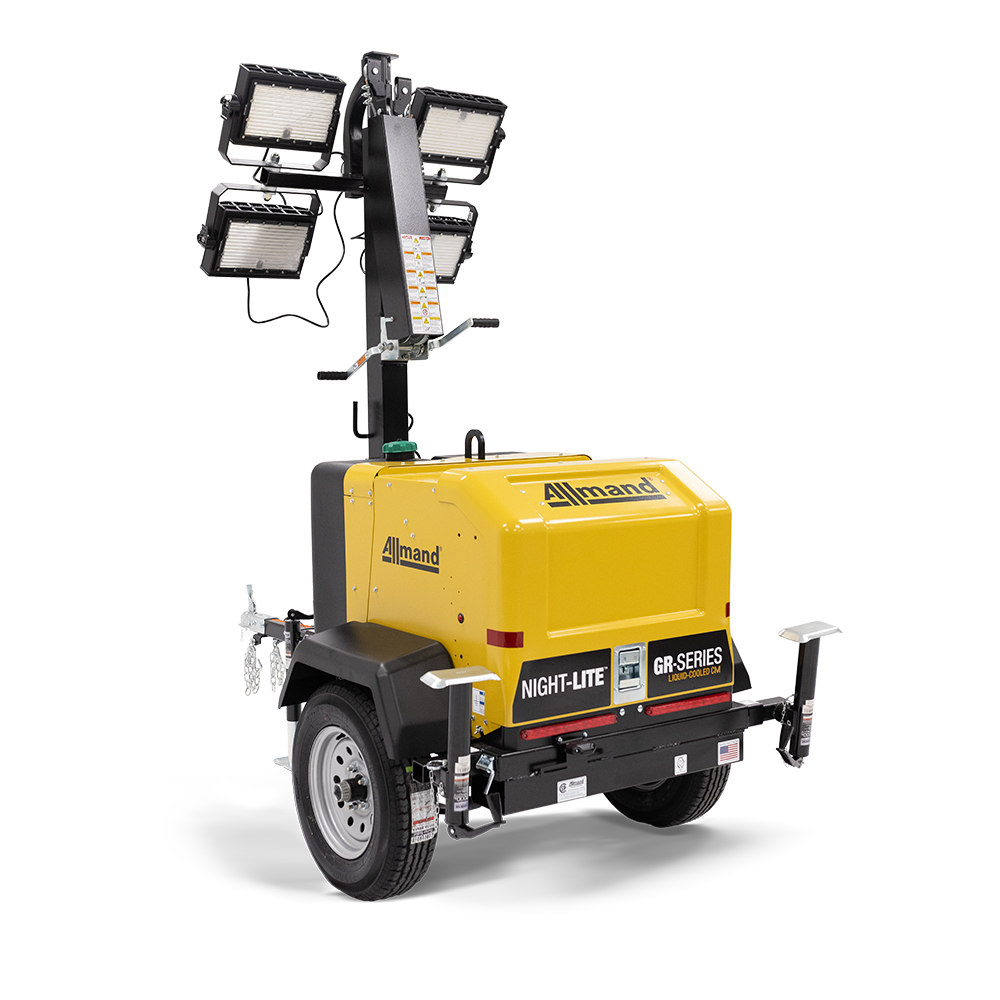

Night-Lite™ GR-Series Liquid Cooled CM
GR-Series
The Night-Lite™ GR-Series Liquid-Cooled CM is Allmand's most user-friendly and compact light tower. With its single on/off switch, the setup and operation of this unit is effortless allowing for more rental and event possibilities. This allows for increased utilizition resulting in a higher return on investment.
For a tutorial video and more product support, visit the Night-Lite™ GR-Series Liquid Cooled CM operations page.
250W
SMD LED Lighting
175,660
Total Lumens
Up to 390 Hours
Operating Runtime
1,000 Hours
Oil Change Interval
Features

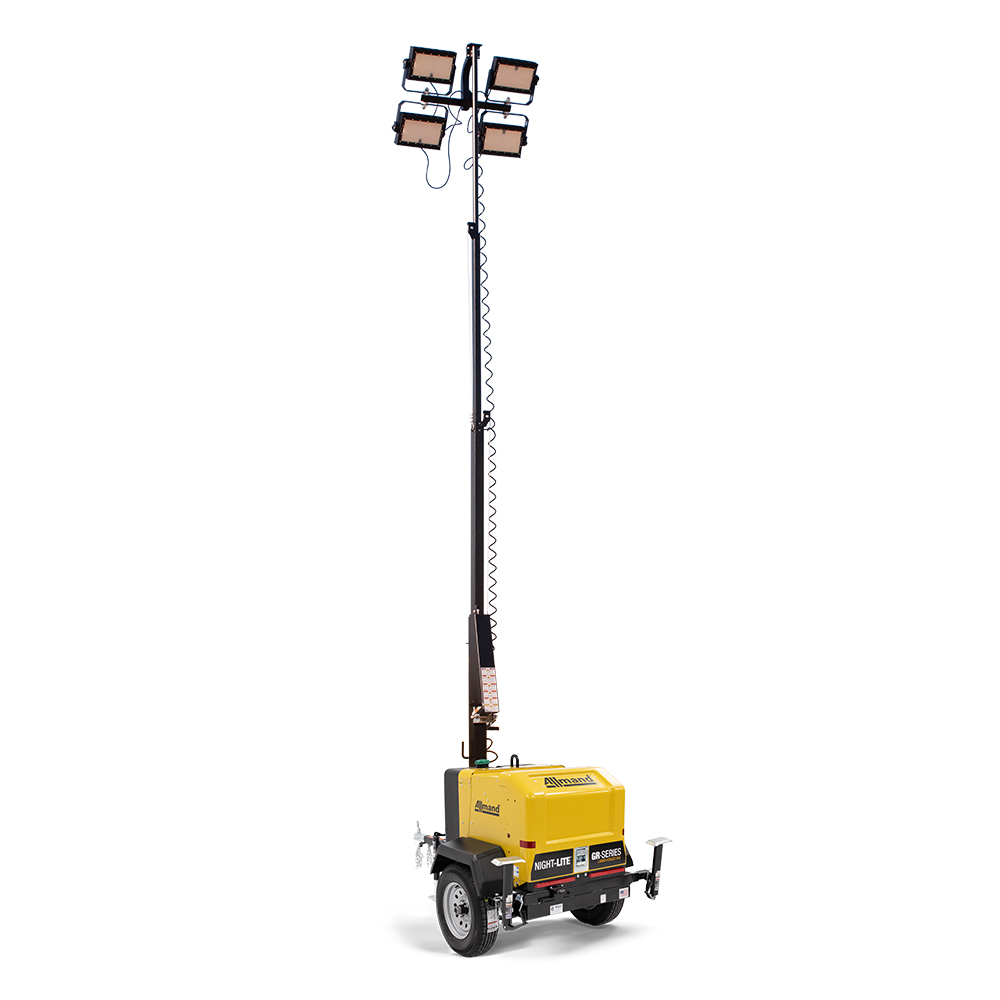

Vertical Tower
Structure - Four-section tubular steel design
Actuation - Dual handle manual winch, standard
Tower rotation - 355° fixture rotation
Guide pads - Polyethylene self-lubricating
Forklift Pockets and Lifting Eye
Allow for easy loading and unloading of up to twenty-two units on a 53' flatbed trailer.
Fuel Tank
63 gallon (238 liter) fuel tank extends operation.
Stabilizers
Three-point design, tongue jack, (2) retractable side outriggers at rear of trailer.
Foldable Tongue
Takes up less space on the job-site and in your yard.
Key Start Control
Simple on/off operation with engine warm, start, run, and stop controls.
Trailer Lighting
LED - Stop, turn, tail lights / side marker lights / illuminated license plate bracket.
Standard LED 4 Light Fixtures
250W high performance SMD style LED light fixtures.
Specifications
| Night-Lite™ GR-Series Liquid-Cooled CM | |
|---|---|
| Engine Brand | Kubota |
| Engine Model | Z482 (Variable Speed) |
| Engine Tier | Tier 4 Final |
| Fuel Capacity - gal (L) | 100 (379) |
| Transport Height (Mast Lowered) - in (mm) | 105 (2,672) |
| Operating Height (Mast Raised) - in (mm) | 322 (8,179) |
| Transport Width - in (mm) | 77 (1,956) |
| Operating Width (Outriggers Deployed) - in (mm) | 151 (3,835) |
| Transport Length - in (mm) | 126 (3,200) |
| Operating Length (Outriggers Deployed) - in (mm) | 168 (4,265) |
| Operating Tower Wind Speed Rating - MPH (km/h) | 60 (96) |
| Trailer Weight - lbs (kg) | 3,250 (1,474) |
| Trailer GVWR - lbs (kg) | 1,750 (794) |
| Number of Units on 48 Flatbed | 20 |
| Number of Units on 53 Flatbed | 22 |
Options
LED Diffuser Panels
Cold Weather Package
- Block Heater
- Heavy-duty battery
Galvanized Tower
Custom Paint
CSA Certification Pending
Electric Winch
Coupler Options
- Lunette Ring
- Bulldog Hitch
- Reversible Coupler Ball and Lunette Ring (no Bulldog)
Light Coverage
