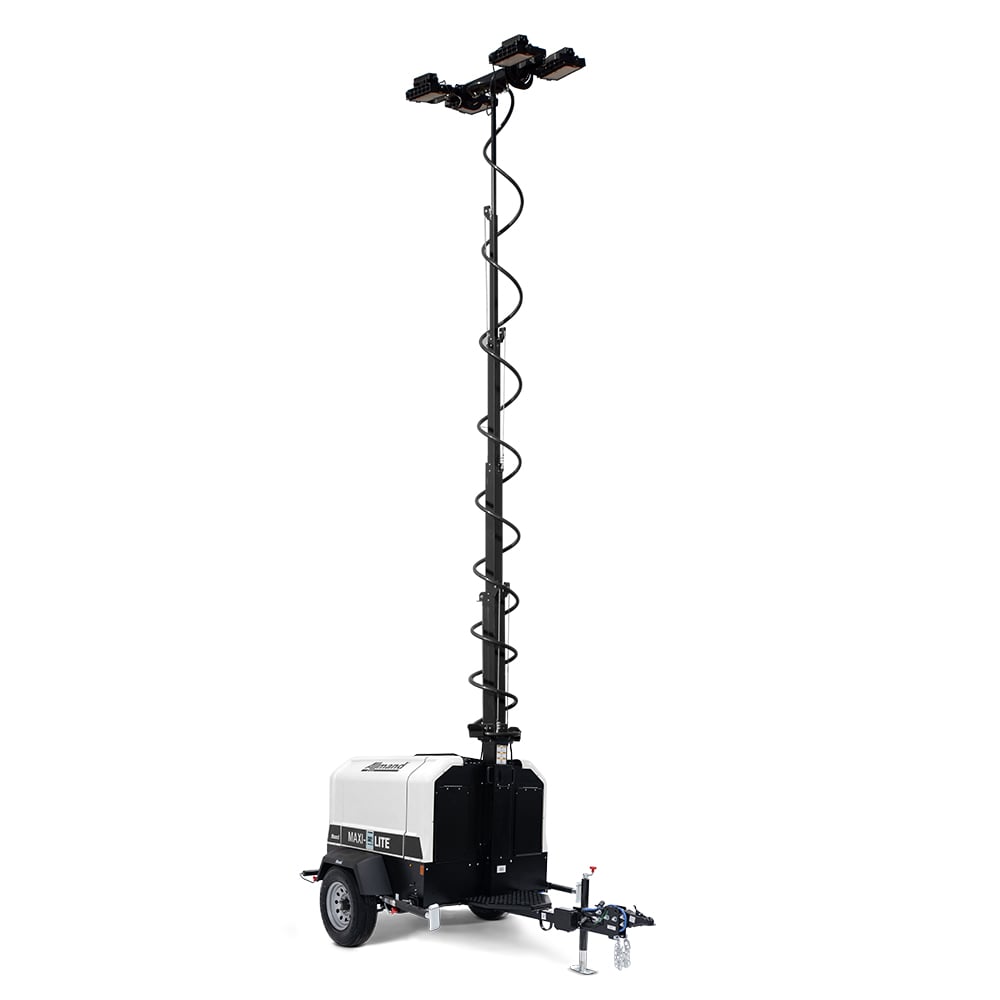

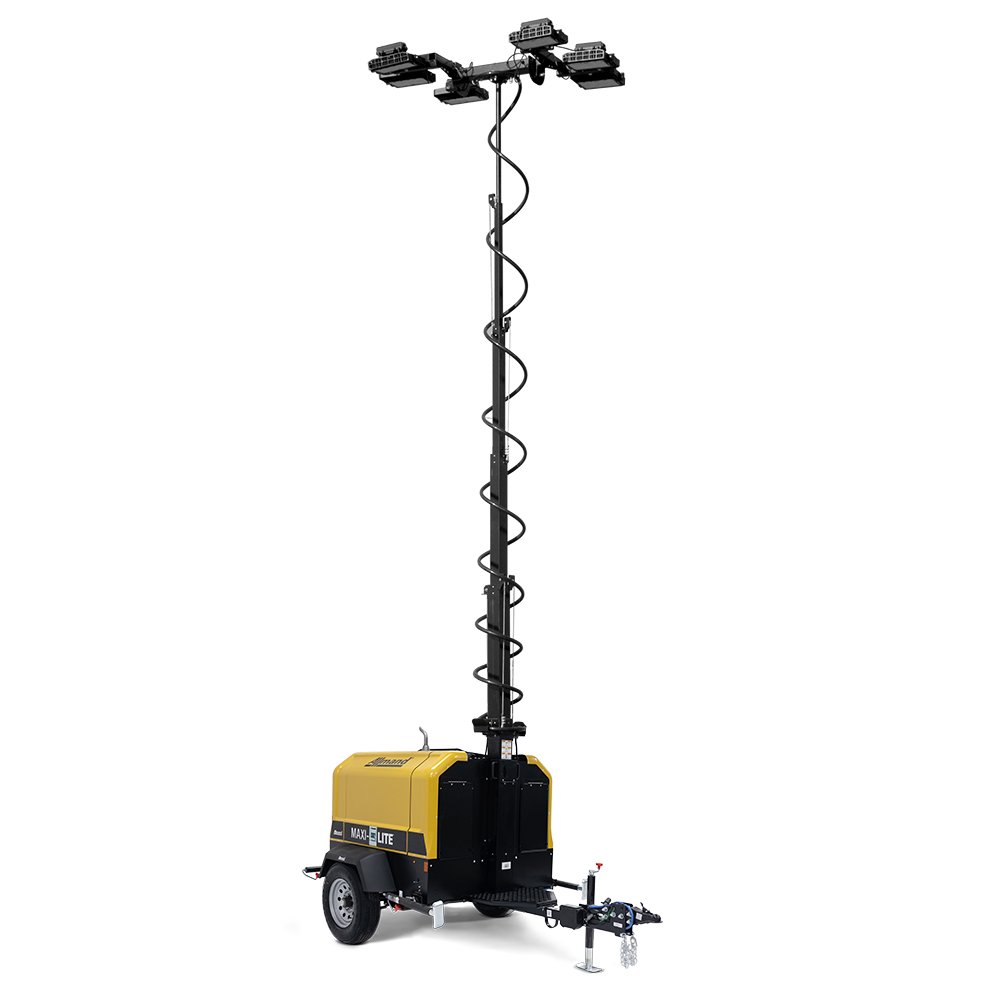

Maxi-Lite®
The Maxi-Lite® is Allmand’s premium light tower containing the most durable job site features commonly required in heavy construction, oil and gas, and mining applications, where rugged usage is the norm. Allmand has built its reputation in these industries and understands the rigor required to handle the tough job site challenges and needs. The Maxi-Lite's 6-section tower contains 13" minimum overlapping tower sections for strength and stability. It includes larger self-lubricating wear pads and pulley locations that result in longer lasting and minimal wearing parts. The hydraulic winch and light cabling attachments are constructed to last in the most extreme conditions. Allmand gets the job done.
For a tutorial video and more product support, visit the Maxi-Lite operations page.
350W
SMD LED Lighting
228,560 to 342,840
Total Lumens
Up to 277 Hours
Operating Runtime
8 to 20kW
Prime Power
Features
Sequenced Light System (SLS™)
Automatically delays engine shutdown to turn off lights and prevent the generator from shutting down while under load
100 Gallon Polyethylene Fuel Tank
With convenient 4-inch filler neck, provides up to 277 hours of continuous operation.
Fluid Containment System (FCS)
Holds up to 110% of the fuel and engine oil capacity to protect sensitive environments from inadvertent leaks and spills.
Stabilizers
Five-point design, tongue jack, (2) retractable side outriggers at front of the trailer, (2) retractable side outriggers at the rear of the trailer.
Gull-Wing Style Doors
Ease of access to engine and components for service.
Vertical Tower
Structure - Six-section tubular steel design
Actuation - Hydraulic cylinder
Tower Rotation - 359° fixture rotation
Guide pads - Lubricatinghylene self-lubricating.
Trailer Lighting
LED - Stop, turn, tail lights / side marker lights / illuminated license plate bracket.
Standard LED 4 or 6 Light Fixtures
350W high performance SMD style LED light fixtures.
Specifications
| CAT / Perkins 1.1 | CAT / Perkins 1.5T | Isuzu 4LE2T | Kubota D1105 | |
|---|---|---|---|---|
| Engine Brand | Caterpillar / Perkins | Caterpillar / Perkins | Isuzu | Kubota |
| Engine Model | 1.1 | 1.5 Turbo | 4LE2T | D1105 |
| Rated Power Output (3,600 RPM) - HP* | 13.8 | 22.3 | 40.2 | 11.6 |
| Engine Tier | Tier 4 Final | Tier 4 Final | Tier 4 Final | Tier 4 Final |
| Fuel Capacity - gal (L) | 100 (379) | 100 (379) | 100 (379) | 100 (379) |
| Light Type - Variable 350W LED (Standard) | SMD Style LED, 5000° K Color Temperature | SMD Style LED, 5000° K Color Temperature | SMD Style LED, 5000° K Color Temperature | SMD Style LED, 5000° K Color Temperature |
| Transport Height (Mast Lowered) - in (mm) | 105 (2,672) | 105 (2,672) | 105 (2,672) | 105 (2,672) |
| Operating Height (Mast Raised) - in (mm) | 322 (8,179) | 322 (8,179) | 332 (8,179) | 322 (8,179) |
| Transport Width - in (mm) | 77 (1,956) | 77 (1,956) | 77 (1,956) | 77 (1,956) |
| Operating Width (Outriggers Deployed) - in (mm) | 151 (3,835) | 151 (3,835) | 151 (3,835) | 151 (3,585) |
| Transport Length - in (mm) | 126 (3,200) | 126 (3,200) | 126 (3,200) | 126 (3,200) |
| Operating Length (Outriggers Deployed) - in (mm) | 168 (4,265) | 168 (4,265) | 168 (4,265) | 168 (4,265) |
| Operating Tower Wind Speed Rating - MPH (km/h) | 55 (88) | 55 (88) | 55 (88) | 55 (88) |
| Number of Units on 48 Flatbed | 7 | 7 | 7 | 7 |
| Number of Units on 53 Flatbed | 7 | 7 | 7 | 7 |
**Prime generator electrical output per Allmand® testing
****All power levels are stated gross horsepower as rated by the engines© manufacturers
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.
Outlet Packages
8kW Models
Standard (2) 20 A 120 VAC duplex GFCI outlets, (2) 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R), (1) 30 A RV outlet
15kW & 20 kW Models
Standard (2) 20 A 120 VAC duplex GFCI outlets, (3) 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R), (1) 50 A Twist Lock
Options
Metal Halide Package
- (4) Metal Halide light fixtures
- (6) Metal Halide light fixtures
Deep Sea L401 LSC Package
- Deep Sea L401 LSC controller automatically starts engine at sunset and shuts down engine at sunrise – programmable for user preferences.
- Emergency stop switch on exterior of machine
- Low Fuel Sender with Low Fuel Beacon
- Remote Start Terminal Connections
- Heavy-duty battery
Artic Package
(Only available with Cold Weather Package)
- Heated fuel/water separator
- Radiator cover
- Adjustable air vent cover panel
Mining Package
- Safety Run beacon
- Reflective Tape
- Wheel chocks
- Metal halide SFR (Secondary Fixture Retention) (Not available on LED)
- Vertical exhaust w/ shield (8 kW Only)
- Muffler wrap
Engine Air Intake Shut-Off Valve
Interior Work Lights
Emergency Stop
(Standard on 20kW)
Telematics Package
(Customer Supplied) Must contact Factory for Lead Time Availability
Connection Output Terminal Lugs
L1, L2, N, & G - (15kW Models Only)
CSA Certification
Cold Weather Package
- Block Heater
- Arctic hydraulic fluid
- Heavy-duty battery (8 kW only)
Arctic Max Package
(Only available with Arctic Package and Deep Sea)
- Diesel fired block heater (controlled by Deep Sea)
- Muffler wrap
- Dual heavy-duty batteries
Special Outlet Package
(15 kW and 20 kW only)
- 30A RV Outlet
- 50A RV Outlet
Battery Disconnect
Reversible Coupler
- 2" Bulldog / 3" Pintle
- 2-5/16" Bulldog / 3" Pintle
Chip Resistant Panels
Low Fuel Shut-Off & Low Fuel Beacon
(Standard on 20 kW)
Custom Paint
Skid Mount
Galvanized Tower
Remote Fuel Connections (15kW Models Only)
120V Battery Heater Blanket
120V Battery Charger

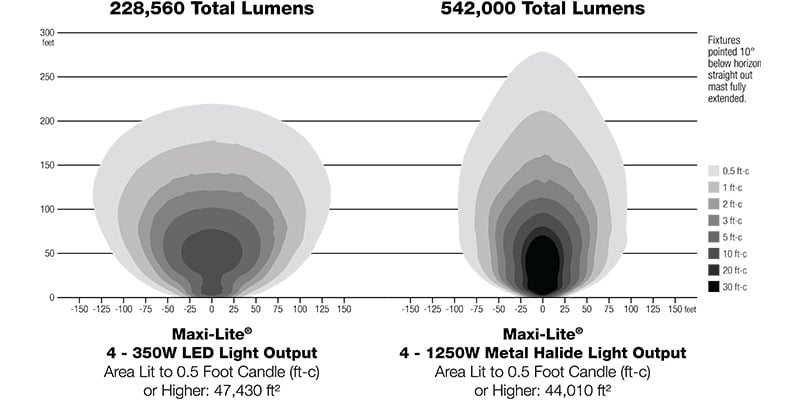

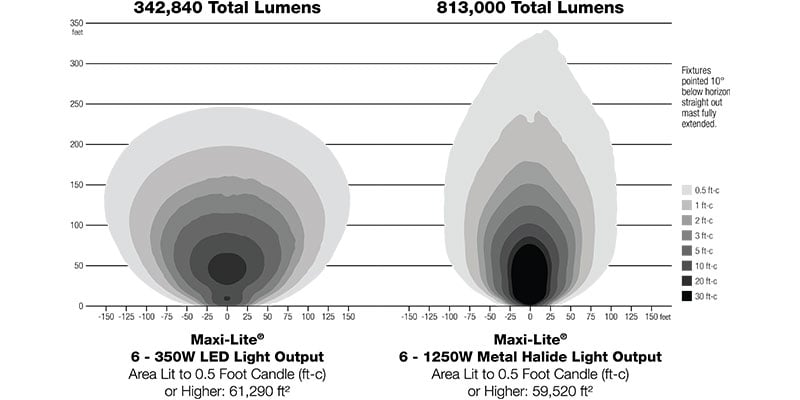

Light Coverage
