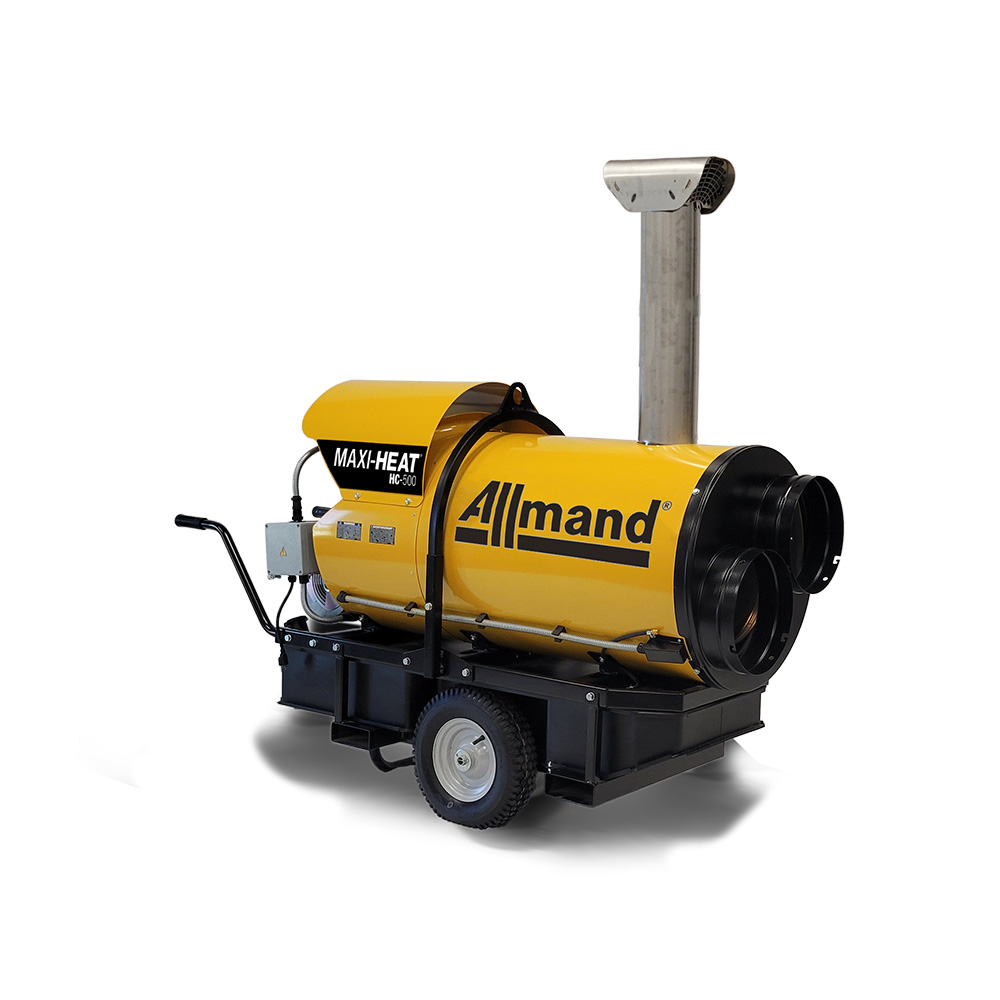

Maxi-Heat® HC-500
The new Allmand® Maxi-Heat® HC-500 heater cart is a portable indirect fired heater that will provide plently of heat for different applications ranging from warming equipment to curing concrete. The simple on/off operation of the unit requires a power source of a standard 120V 15A GFCI outlet, and diesel no. 1 or 2 fuel, or kerosene to ignite the burner. The HC-500 will run at a maximum capacity up to 500,000 BTUs of heat while running with airflow at 3,100 cfm and a runtime up to 13 hours on a 46 gallon fuel tank. Maxi-Heat brings the heat you can rely on when you need it most!
For more product support, vist the Maxi-Heat® HC-500 operations page.
3,100
Heated Air Output (cfm)
13.1
Operating Time (hrs)
46
Fuel Capacity (gal)
115
Electrical Voltage (V)
Features
Sleek Design
Allowing for ease of portability and maneuverability.
Easy Accessible Maintenance
Heater cart can be tilted to access the burner and its components.
Fuel Tank
46 gallon (174 liter) fuel tank extends operation.
Simple Control Panel
ON/OFF switch with run light indicator, reset button, and socket for remote thermostat option.
500,000 BTUs of Heat
Fuel Level Gauge
Adjustable Air Damper
Fuel Filter
Specifications
| Maxi-Heat® HC-500 | |
|---|---|
| Diesel Pressure | 174 PSI |
| Static Pressure | 1.1 WC |
| Duct Flange Outlets | Twin 12" or Single 16" |
| Outlet Temperature Rise | 200°F (93°C) |
| Ducting Length - Continuous Heating | 100 ft (30 m) |
| Warranty | Limited 3-Year Warranty |
| Electrical Amperage | 13.4 A |
| Electrical Voltage | 115 V |
| Electrical Frequency | 60 Hz |
| Fuel Capacity - gal (L) | 46 (174) |
| Operating Time (hrs) | 13.1 hrs |
| BTU per Hour | 500,000 |
| Heated Air Output (cfm) | 500,000 |
| Horse Power (@ 1,800 RPM)**** | 1.5 |
| Net Weight - lbs (kg) | 400 (181) |
| Operating Weight - FULL Fuel - lbs (kg) | 722 (327) |
| Length - in (mm) | 84 in (2,134 mm) |
| Width - in (mm) | 57 in (1,448 mm) |
| Height - Top of Stack - in(mm) | 47 in (1,194 mm) |
