NEW Night-Lite™ GR-Series Liquid Cooled CM

NEW Night-Lite™ GR-Series Liquid Cooled CM

GR-Series

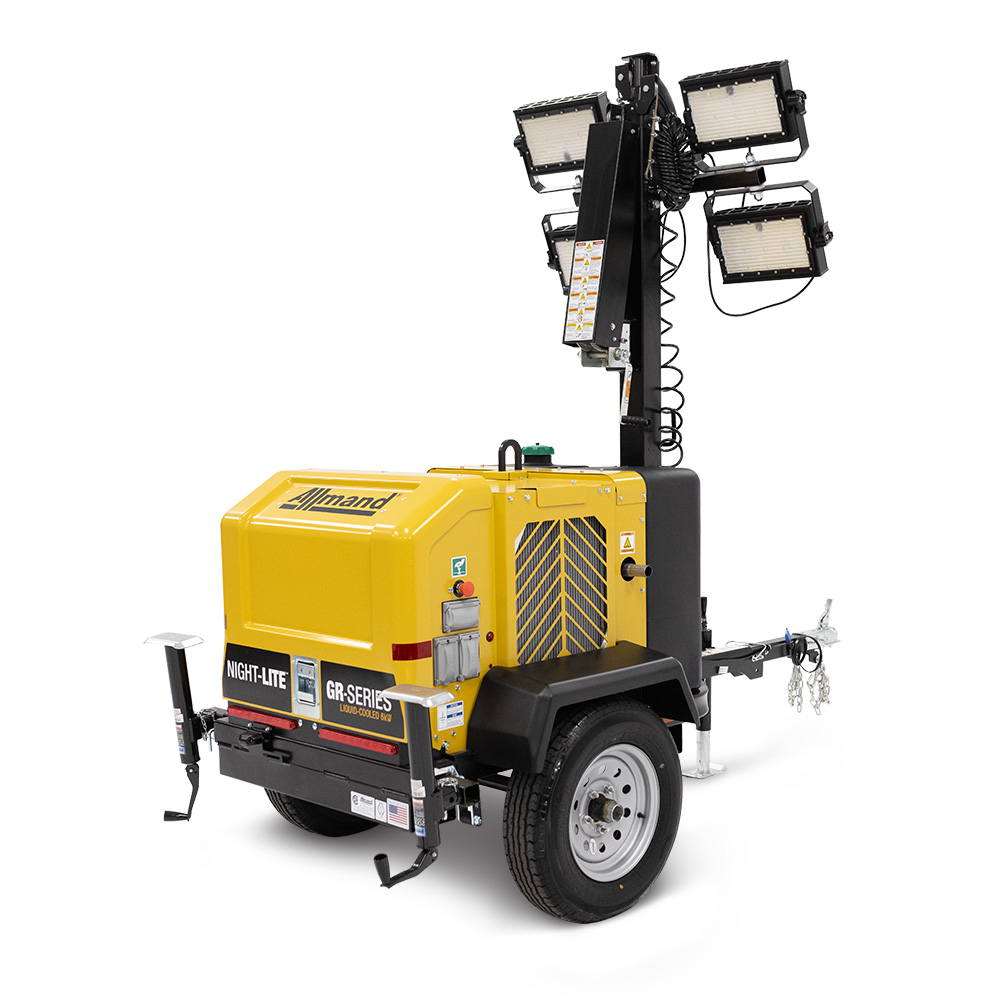

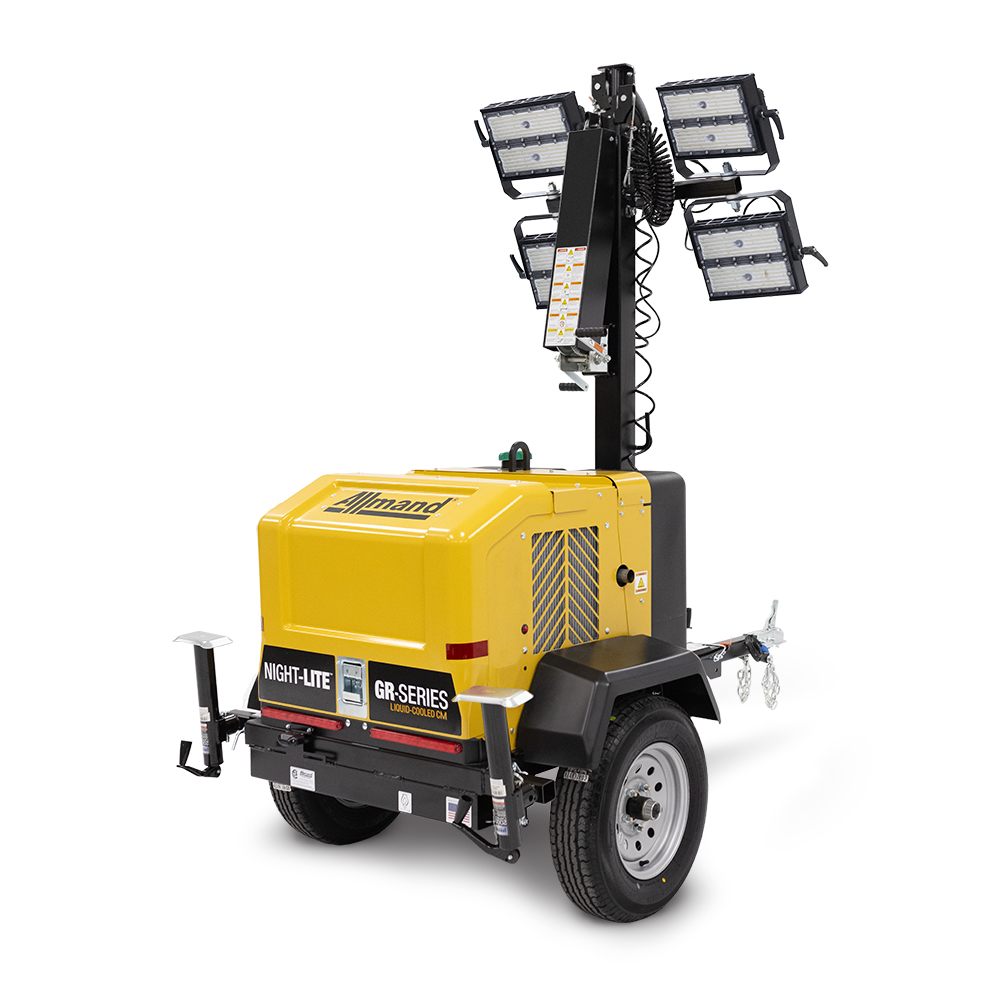

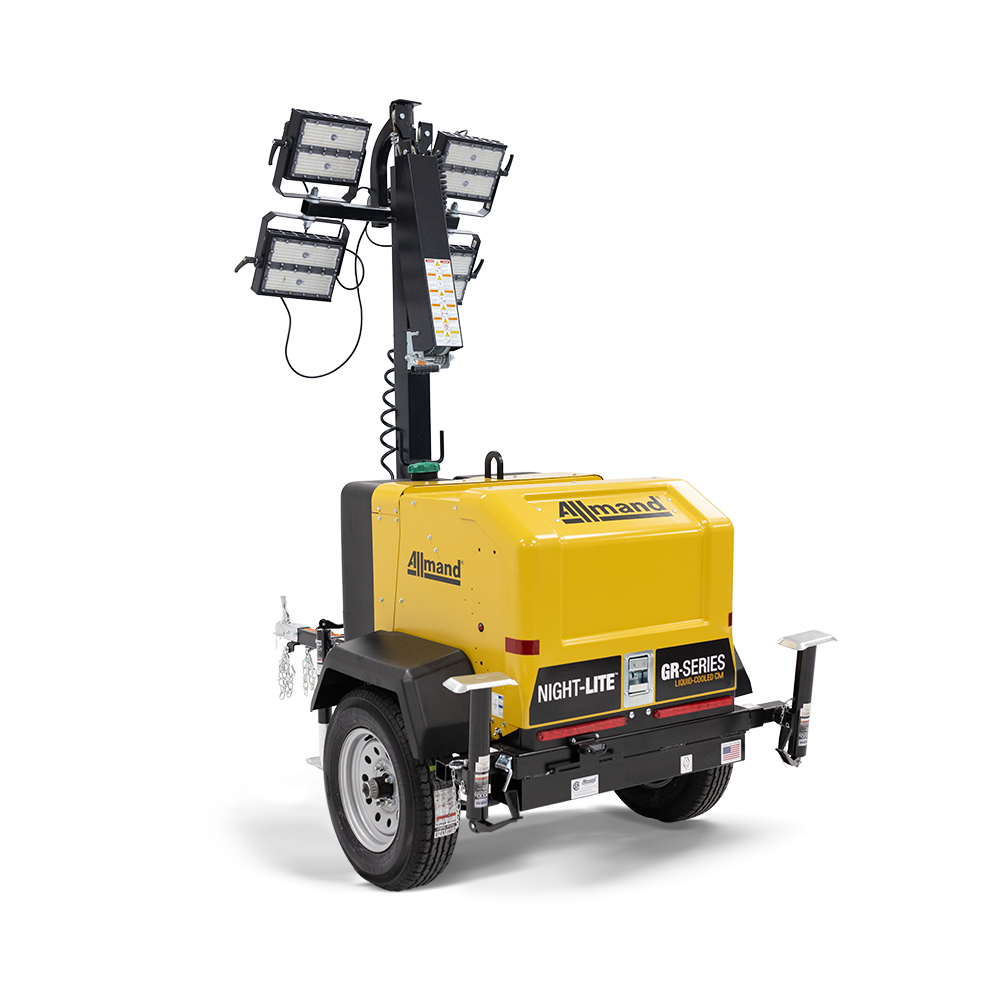

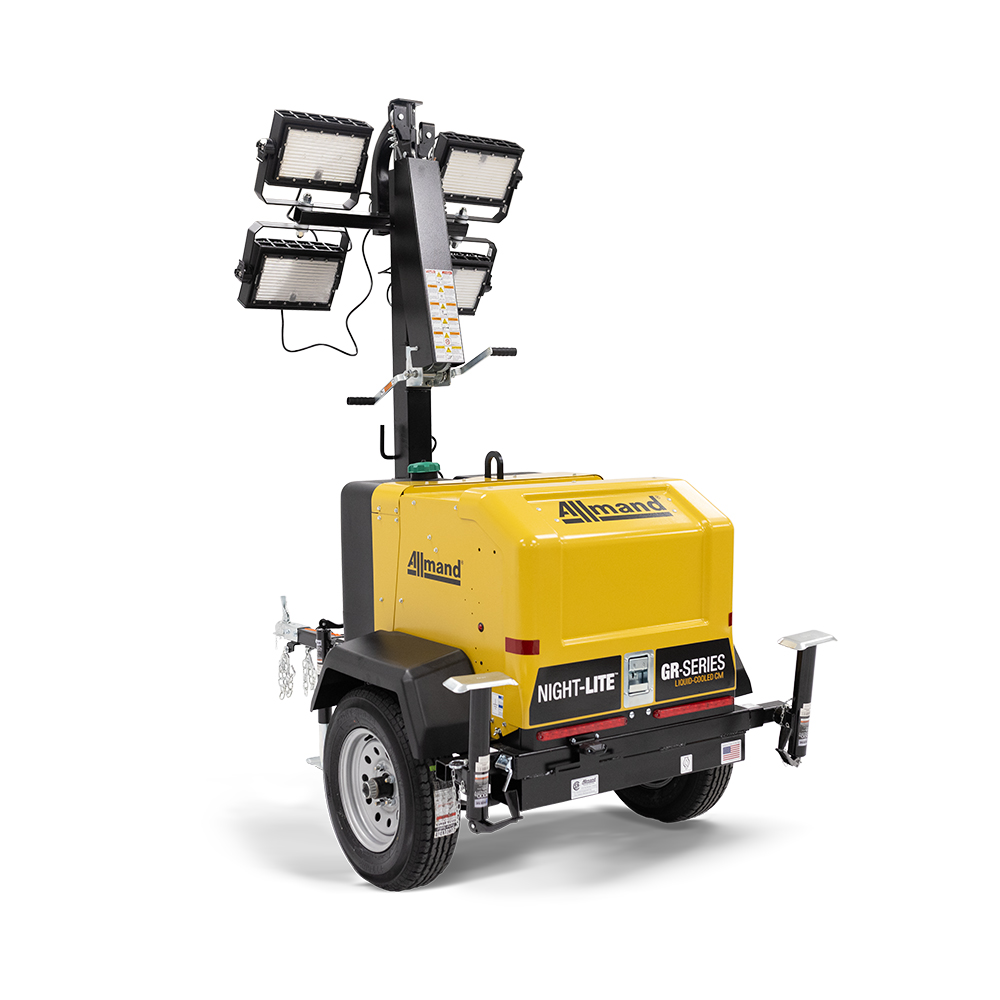

The NEW Night-Lite™ GR-Series Liquid-Cooled CM is Allmand's most user-friendly and compact light tower. With its single on/off switch, the setup and operation of this unit is effortless allowing for more rental and event possibilities. This allows for increased utilizition resulting in a higher return on investment.

250W

SMD LED Lighting

174,180

Total Lumens

Up to 390 Hour

Operating Runtime

1,000 Hours

Oil Change Interval

Features

Vertical Tower

Structure - Four-section tubular steel design
Actuation - Dual handle manual winch, standard
Tower rotation - 355° fixture rotation
Guide pads - Polyethylene self-lubricating

Forklift Pockets and Lifting Eye

Allow for easy loading and unloading of up to twenty-two units on a 53' flatbed trailer.

Fuel Tank

63 gallon (238 liter) fuel tank extends operation.

Stabilizers

Three-point design, tongue jack, (2) retractable side outriggers at rear of trailer.

Foldable Tongue

Takes up less space on the job-site and in your yard.

Key Start Control

Simple on/off operation with engine warm, start, run, and stop controls.

Trailer Lighting

LED - Stop, turn, tail lights / side marker lights / illuminated license plate bracket.

Standard LED 4 Light Fixtures

350W high performance SMD style LED light fixtures.

Specifications

At least one product must be displayed. Please select another option to remove this product

Engine Brand
Kubota
Engine Model
Z482
Output @ Rated Speed (1,800 RPM) - HP****
5.1
Engine Prime Power (kW)**
3
Engine Tier
Tier 4 Final
Fuel Capacity - gal (L)
63 (238)
Light Type - 250W LED (Standard)
SMD Style LED, 5000° K Color Temperature
LED Wattage (per 250W lamp)
250
LED Lumens (per 250W lamp)
43,545
LED Lumens (total - 4-250W)
174,180 - 4 Lights
Transport Height (Mast Lowered) - in (mm)
99 (2,502)
Operating Height (Mast Raised) - in (mm)
276 (7,010)
Transport Width - in (mm)
51 (1,283)
Operating Width (Outriggers Deployed) - in (mm)
98 (2,489)
Transport Length - in (mm)
83 (2096)
Operating Tower Wind Speed Rating - MPH (km/h)
60 (96)
Trailer Weight - lbs (kg)
1,580 (717)
Trailer GVWR - lbs (kg)
1,750 (794)
Marketing Oil Change Interval
1,000 Hours
Number of Units on 48 Flatbed
20
Number of Units on 53 Flatbed
22

Options

LED Diffuser Panels



Cold Weather Package

  • Block Heater
  • Heavy-duty battery



Galvanized Tower



Custom Paint

CSA Certification Pending



Electric Winch



Coupler Options

  • Lunette Ring
  • Bulldog Hitch
  • Reversible Coupler Ball and Lunette Ring (no Bulldog)

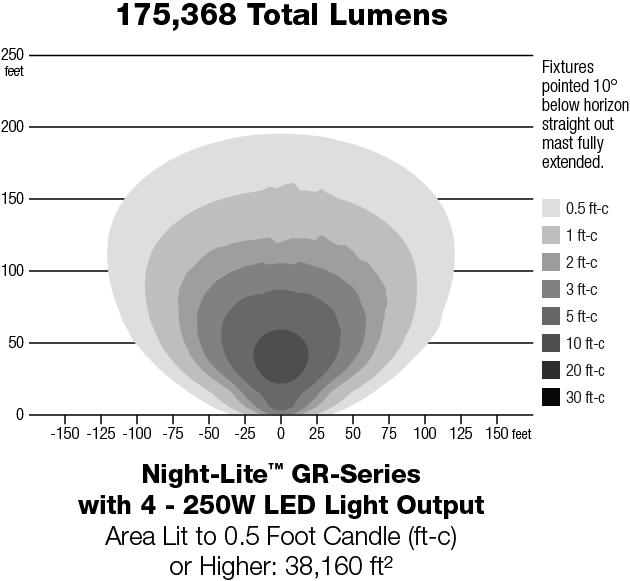

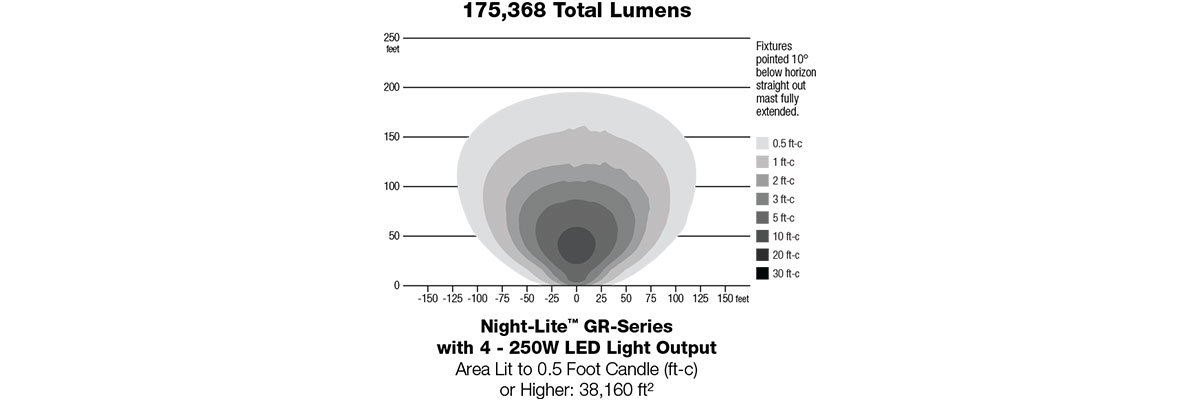

Light Coverage
