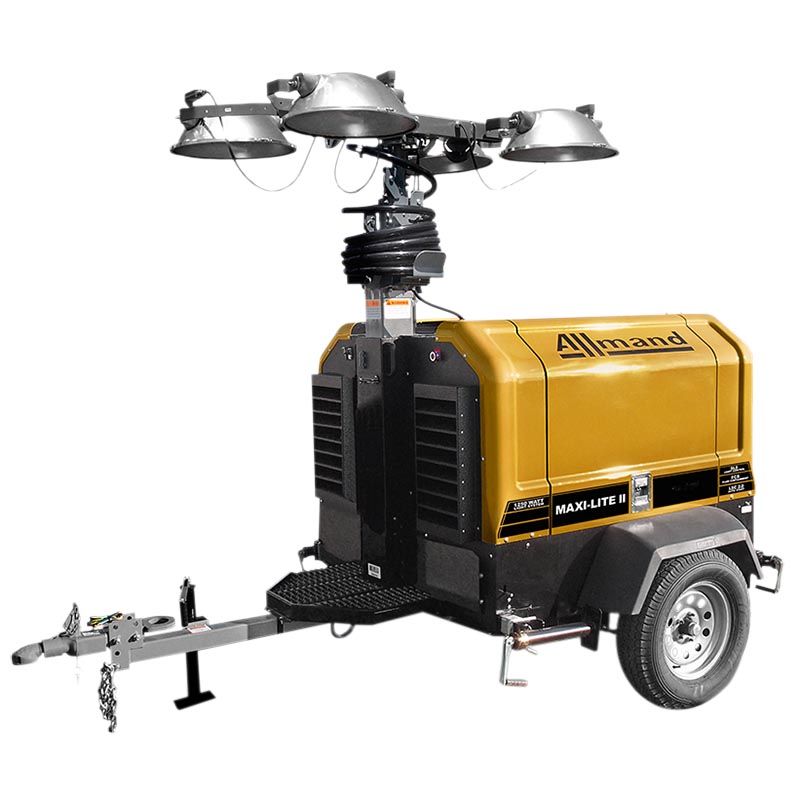

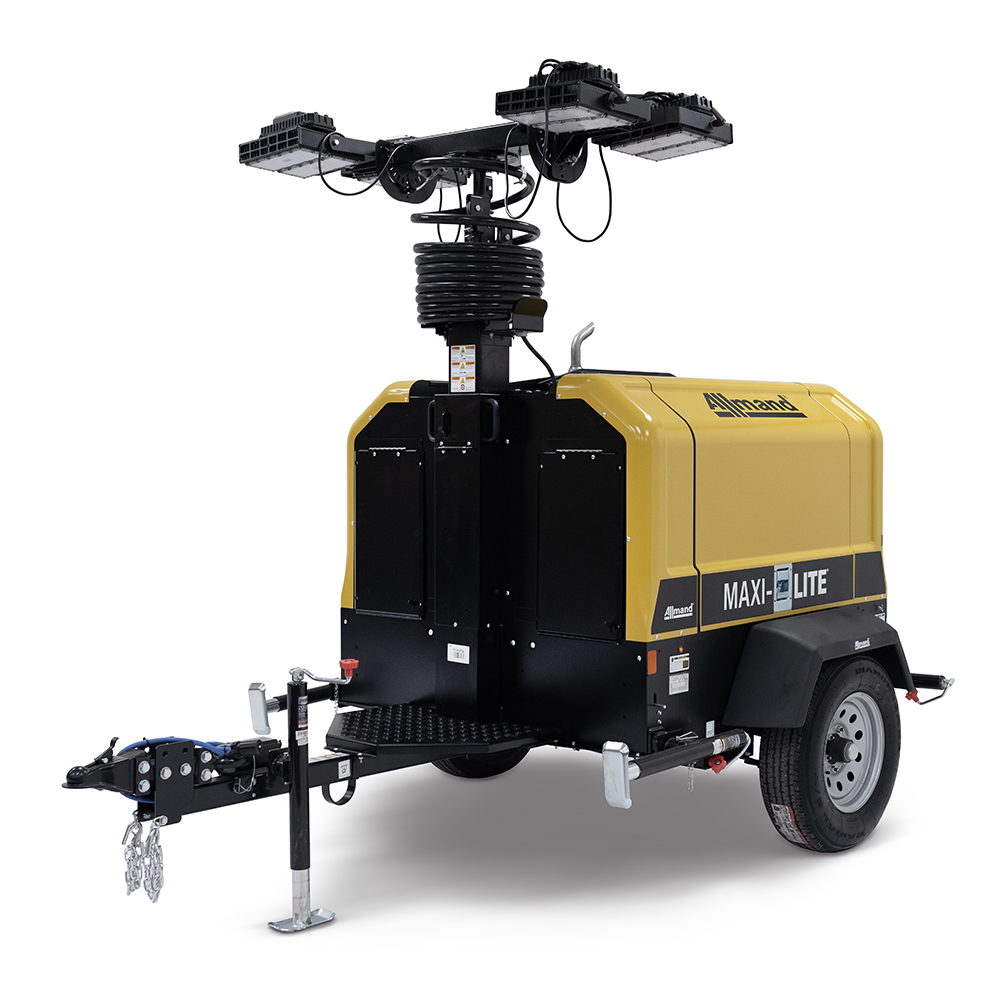

    Maxi-Lite®

    MaxiLite

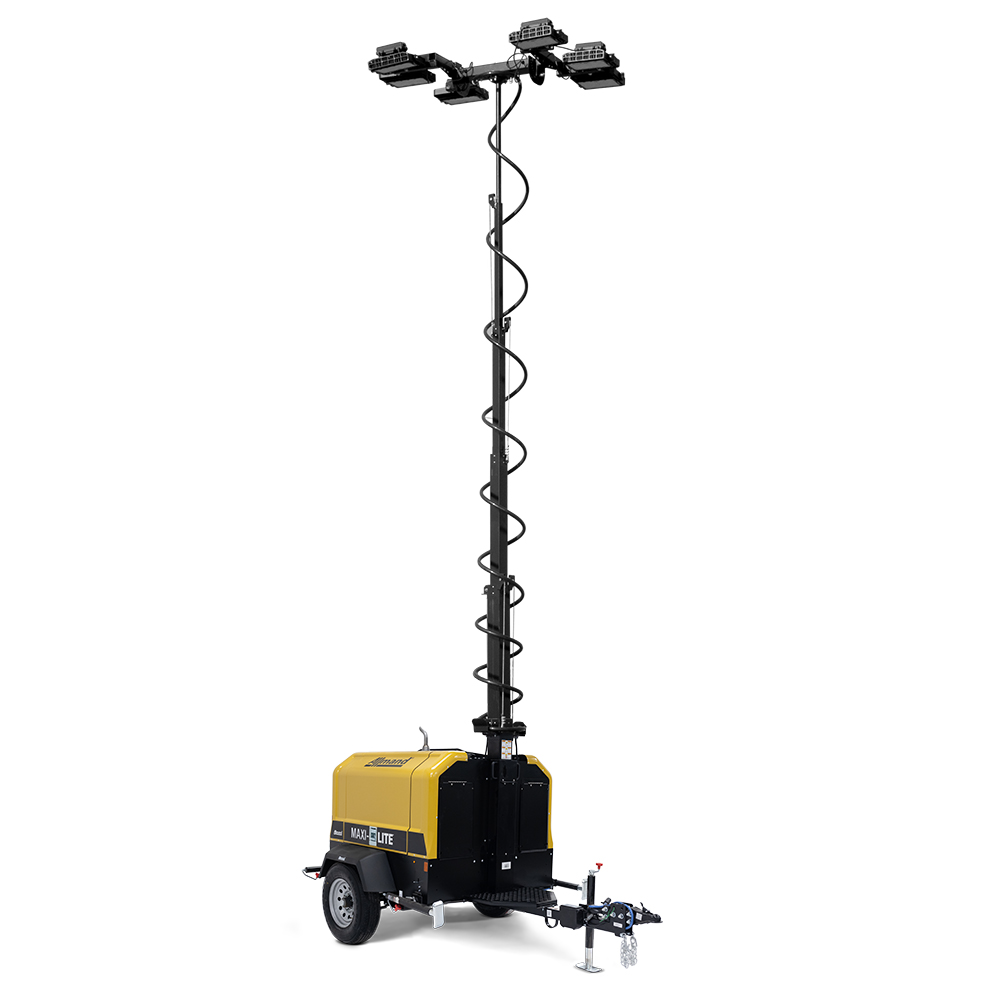

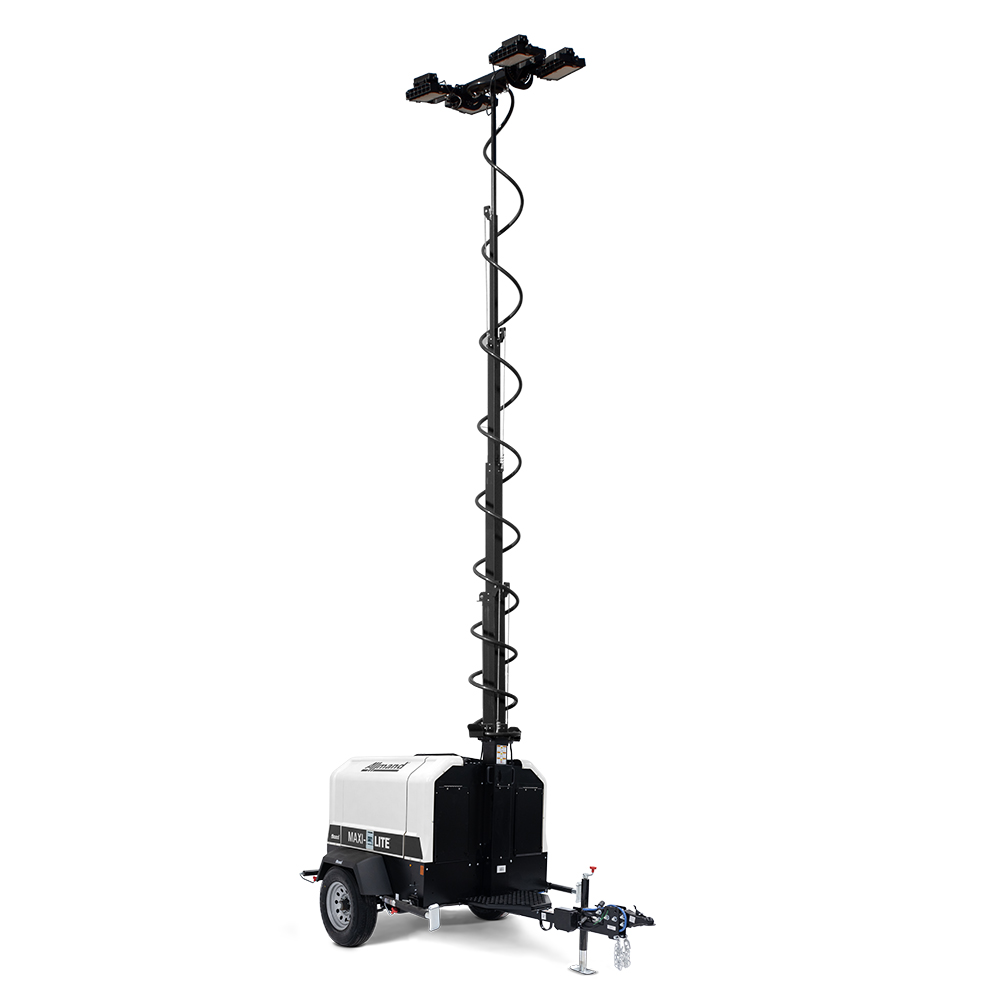

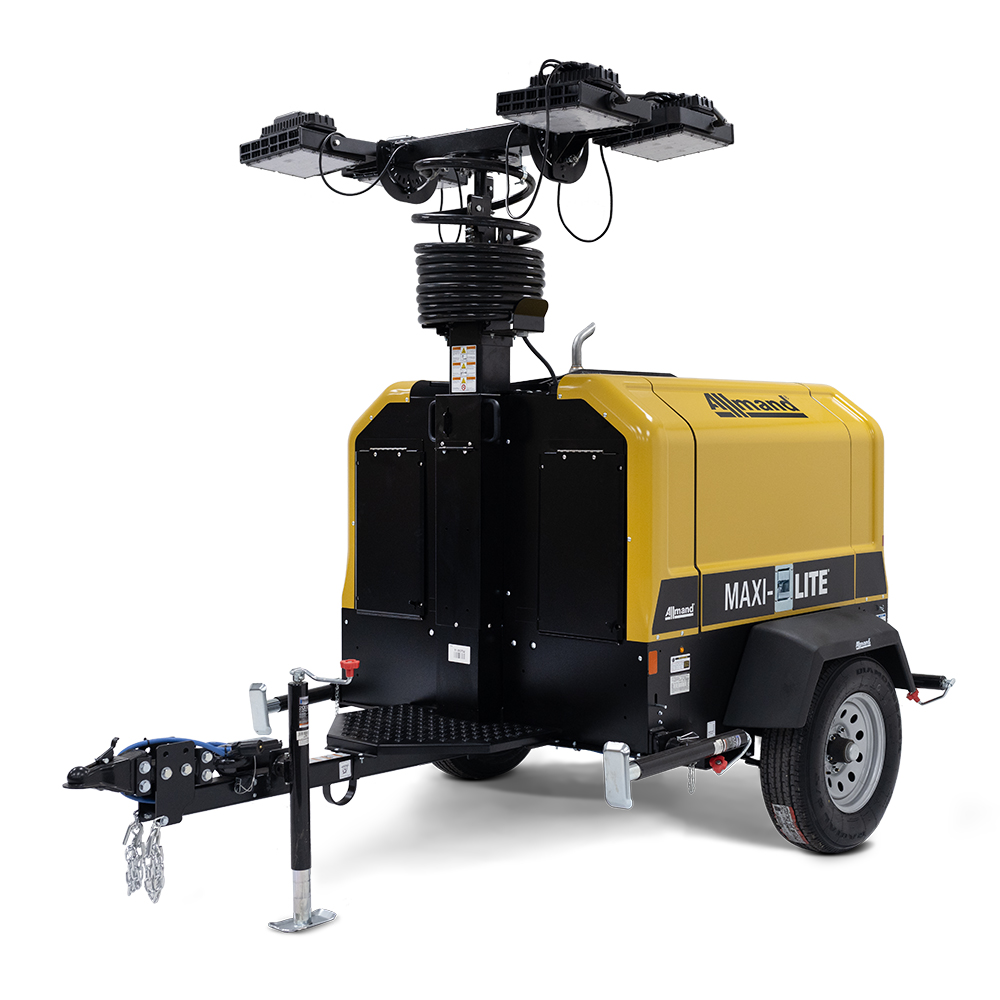

    Maxi-Lite®

    The Maxi-Lite® is Allmand’s premium light tower containing the most durable job site features commonly required in heavy construction, oil and gas, and mining applications, where rugged usage is the norm. Allmand has built its reputation in these industries and understands the rigor required to handle the tough job site challenges and needs. The Maxi-Lite's 6-section tower contains 13" minimum overlapping tower sections for strength and stability. It includes larger self-lubricating wear pads and pulley locations that result in longer lasting and minimal wearing parts. The hydraulic winch and light cabling attachments are constructed to last in the most extreme conditions. Allmand gets the job done.

    For a tutorial video and more product support, visit the Maxi-Lite operations page.

    350W

    SMD LED Lighting

    228,560 to 342,840

    Total Lumens

    Up to 277 Hour

    Operating Runtime

    8 to 20kW

    Prime Power
    Feature

    Features

    Sequenced Light System (SLS™)

    Automatically delays engine shutdown to turn off lights and prevent the generator from shutting down while under load

    100 Gallon Polyethylene Fuel Tank

    With convenient 4-inch filler neck, provides up to 175 hours of continuous operation.

    Fluid Containment System (FCS)

    Holds up to 110% of the fuel and engine oil capacity to protect sensitive environments from inadvertent leaks and spills.

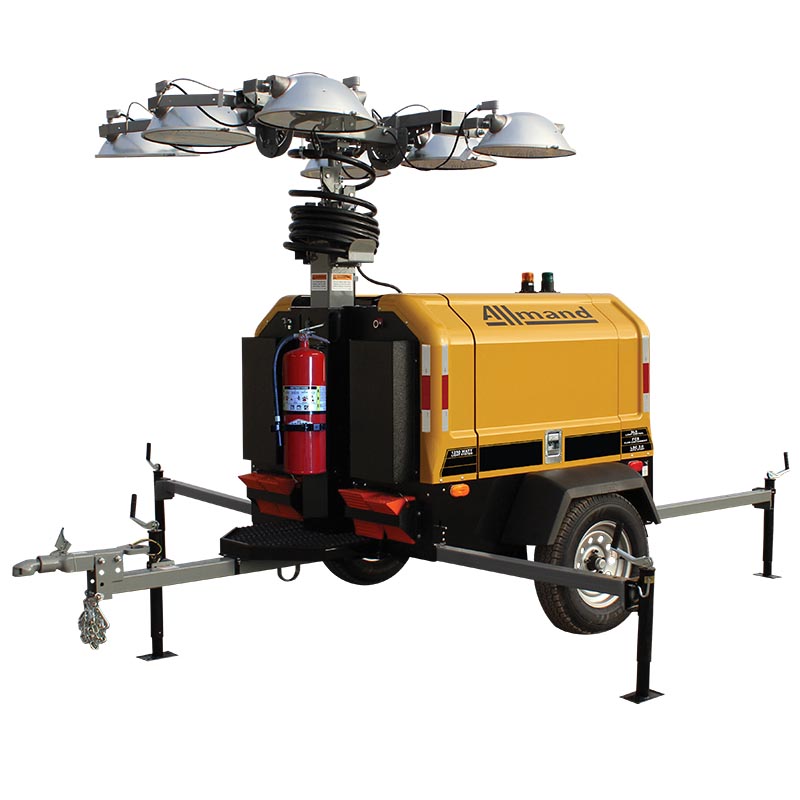

    Stabilizers

    Five-point design, tongue jack, (2) retractable side outriggers at front of the trailer, (2) retractable side outriggers at the rear of the trailer.

    Gull-Wing Style Doors

    Ease of access to engine and components for service.

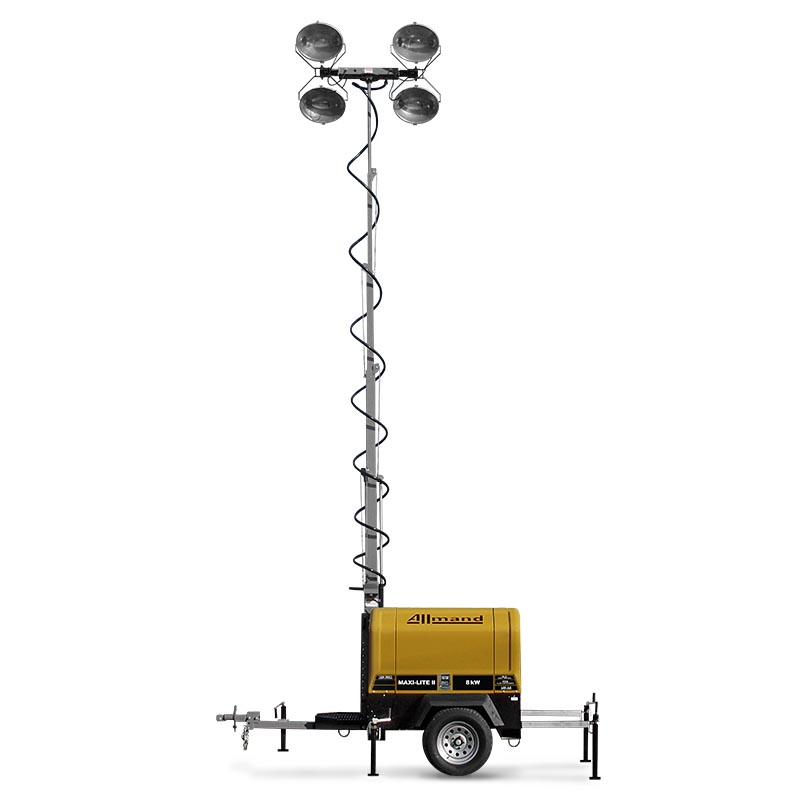

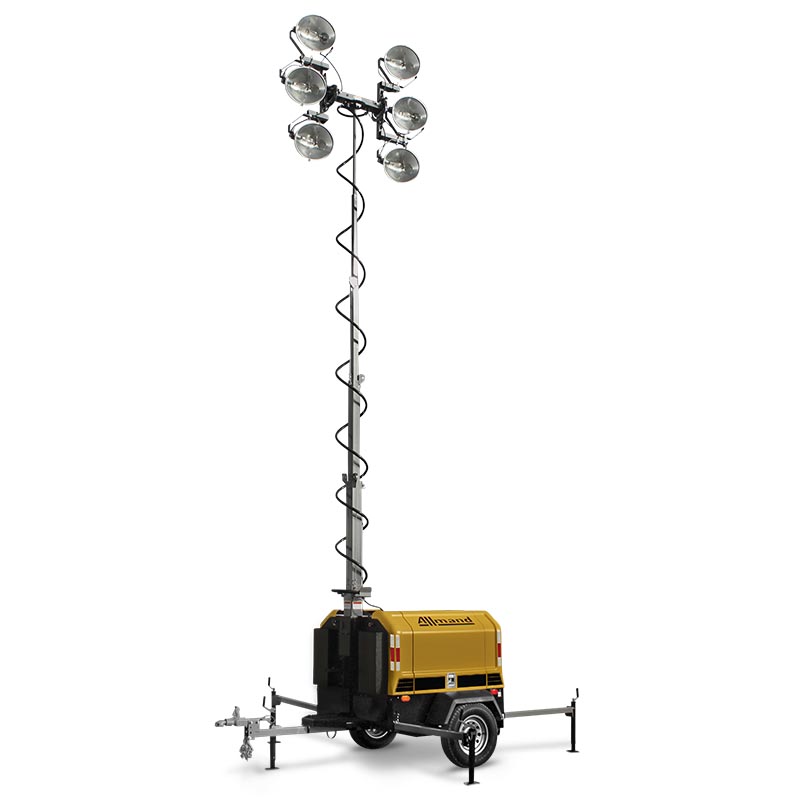

    Vertical Tower

    Structure - Six-section tubular steel design
    Actuation - Hydraulic cylinder
    Tower Rotation - 359° fixture rotation
    Guide pads - Lubricatinghylene self-lubricating.

    Trailer Lighting

    LED - Stop, turn, tail lights / side marker lights / illuminated license plate bracket.

    Standard LED 4 or 6 Light Fixtures

    350W high performance SMD style LED light fixtures.

    Specifications

    At least one product must be displayed. Please select another option to remove this product

    Engine Brand
    Caterpillar / Perkins
    Engine Model
    1.1
    Output @ Rated Speed (1,800 RPM) - HP****
    13.8
    Engine Prime Power (kW)**
    8
    Engine Tier
    Tier 4 Final
    Fuel Capacity - gal (L)
    100 (379)
    Light Type - LED
    SMD Style LED, 5000° K Color Temperature
    LED Wattage (per lamp)
    350
    LED Lumens (per lamp)
    57,140
    LED Lumens (total)
    228,560 - 4 Lights / 342,840 - 6 Lights
    Operating Time - using four 350W LED light fixtures (hrs)***
    263.2
    Operating Time - using six 350W LED light fixtures (hrs)***
    232.6

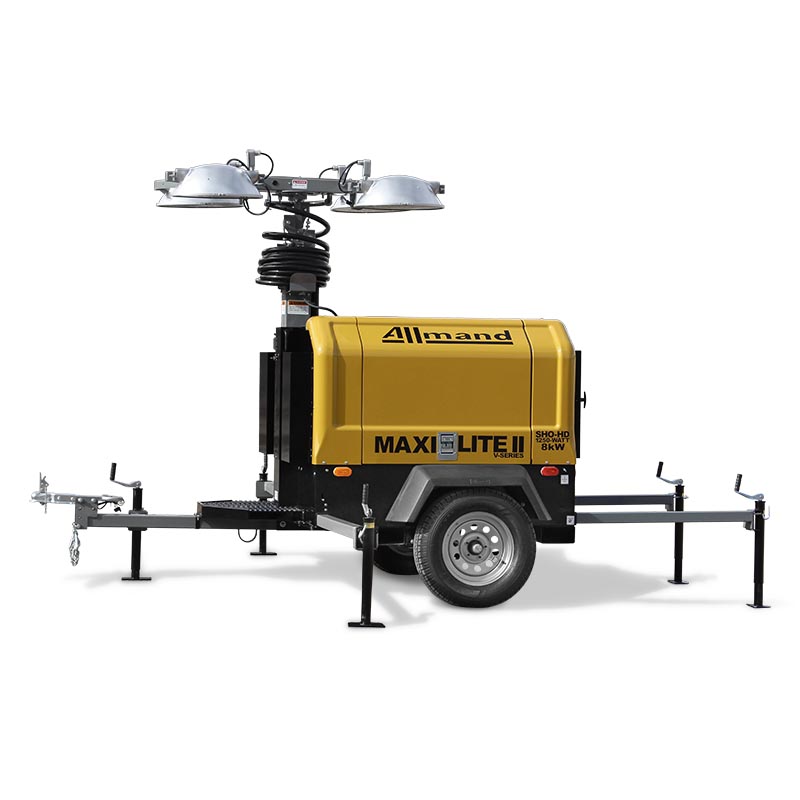

    Light Type - Metal Halide (Optional)
    Metal Halide SHO-HD® fixture
    Metal Halide Wattage (per lamp)
    1,250
    Metal Halide Lumens (per lamp)
    135,500
    Metal Halide Lumens (total)
    542,000 - 4 Lights
    Operating Time - using four 1,250W Metal Halide light fixtures (hrs)***
    166.7
    Transport Height (Mast Lowered) - in (mm)
    105 (2,672)
    Operating Height (Mast Raised) - in (mm)
    322 (8,179)
    Transport Width - in (mm)
    77 (1,956)
    Operating Width (Outriggers Deployed) - in (mm)
    151 (3,835)
    Transport Length - in (mm)
    126 (3,200)
    Operating Length (Outriggers Deployed) - in (mm)
    168 (4,265)
    Operating Tower Wind Speed Rating - MPH (km/h)
    55 (88)
    Trailer Weight - lbs (kg)
    3,430 (1,556)
    Trailer GVWR - lbs (kg)
    5,000 (2,267)
    Number of Units on 48 Flatbed
    7
    Number of Units on 53 Flatbed
    7

    **Prime generator electrical output per Allmand® testing
    ****All power levels are stated gross horsepower as rated by the engines© manufacturers
    Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

    Engine Brand
    Caterpillar / Perkins
    Engine Model
    1.5 Turbo
    Output @ Rated Speed (1,800 RPM) - HP****
    22.3
    Engine Prime Power (kW)**
    15
    Engine Tier
    Tier 4 Final
    Fuel Capacity - gal (L)
    100 (379)
    Light Type - LED
    SMD Style LED, 5000° K Color Temperature
    LED Wattage (per lamp)
    350
    LED Lumens (per lamp)
    57,140
    LED Lumens (total)
    228,560 - 4 Lights / 342,840 - 6 Lights
    Operating Time - using four 350W LED light fixtures (hrs)***
    217.4
    Operating Time - using six 350W LED light fixtures (hrs)***
    185.2
    Light Type - Metal Halide (Optional)
    Metal Halide SHO-HD® fixture
    Metal Halide Wattage (per lamp)
    1,250
    Metal Halide Lumens (per lamp)
    135,500
    Metal Halide Lumens (total)
    542,000 - 4 Lights / 813,000 - 6 Lights
    Operating Time - using four 1,250W Metal Halide light fixtures (hrs)***
    128.2
    Transport Height (Mast Lowered) - in (mm)
    105 (2,672)
    Operating Height (Mast Raised) - in (mm)
    322 (8,179)
    Transport Width - in (mm)
    77 (1,956)
    Operating Width (Outriggers Deployed) - in (mm)
    151 (3,835)
    Transport Length - in (mm)
    126 (3,200)
    Operating Length (Outriggers Deployed) - in (mm)
    168 (4,265)
    Operating Tower Wind Speed Rating - MPH (km/h)
    55 (88)
    Trailer Weight - lbs (kg)
    3,430 (1,556)
    Trailer GVWR - lbs (kg)
    5000 (2,267)
    Number of Units on 48 Flatbed
    7
    Number of Units on 53 Flatbed
    7

    **Prime generator electrical output per Allmand® testing
    ****All power levels are stated gross horsepower as rated by the engines© manufacturers
    Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

    Engine Brand
    Isuzu
    Engine Model
    4LE2T
    Output @ Rated Speed (1,800 RPM) - HP****
    40.2
    Engine Prime Power (kW)**
    20
    Engine Tier
    Tier 4 Final
    Fuel Capacity - gal (L)
    100 (379)
    Light Type - LED
    SMD Style LED, 5000° K Color Temperature
    LED Wattage (per lamp)
    350
    LED Lumens (per lamp)
    57,140
    LED Lumens (total)
    228,560 - 4 Lights / 342,840 - 6 Lights
    Operating Time - using four 350W LED light fixtures (hrs)***
    200
    Operating Time - using six 350W LED light fixtures (hrs)***
    181.8
    Light Type - Metal Halide (Optional)
    Metal Halide SHO-HD® fixture
    Metal Halide Wattage (per lamp)
    1,250
    Metal Halide Lumens (per lamp)
    135,500
    Metal Halide Lumens (total)
    542,000 - 4 Lights / 813,000 - 6 Lights
    Operating Time - using four 1,250W Metal Halide light fixtures (hrs)***
    137
    Transport Height (Mast Lowered) - in (mm)
    105 (2,672)
    Operating Height (Mast Raised) - in (mm)
    332 (8,179)
    Transport Width - in (mm)
    77 (1,956)
    Operating Width (Outriggers Deployed) - in (mm)
    151 (3,835)
    Transport Length - in (mm)
    126 (3,200)
    Operating Length (Outriggers Deployed) - in (mm)
    168 (4,265)
    Operating Tower Wind Speed Rating - MPH (km/h)
    55 (88)
    Trailer Weight - lbs (kg)
    3,430 (1,556)
    Trailer GVWR - lbs (kg)
    5,000 (2,267)
    Number of Units on 48 Flatbed
    7
    Number of Units on 53 Flatbed
    7

    **Prime generator electrical output per Allmand® testing
    ****All power levels are stated gross horsepower as rated by the engines© manufacturers
    Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

    Engine Brand
    Kubota
    Engine Model
    D1105
    Output @ Rated Speed (1,800 RPM) - HP****
    11.6
    Engine Prime Power (kW)**
    8
    Engine Tier
    Tier 4 Final
    Fuel Capacity - gal (L)
    100 (379)
    Light Type - LED
    SMD Style LED, 5000° K Color Temperature
    LED Wattage (per lamp)
    350
    LED Lumens (per lamp)
    57,140
    LED Lumens (total)
    228,560 - 4 Lights / 342,840 - 6 Lights
    Operating Time - using four 350W LED light fixtures (hrs)***
    277.8
    Operating Time - using six 350W LED light fixtures (hrs)***
    222.2
    Light Type - Metal Halide (Optional)
    Metal Halide SHO-HD® fixture
    Metal Halide Wattage (per lamp)
    1,250
    Metal Halide Lumens (per lamp)
    135,500
    Metal Halide Lumens (total)
    542,000 - 4 Lights
    Operating Time - using four 1,250W Metal Halide light fixtures (hrs)***
    158.7
    Transport Height (Mast Lowered) - in (mm)
    105 (2,672)
    Operating Height (Mast Raised) - in (mm)
    322 (8,179)
    Transport Width - in (mm)
    77 (1,956)
    Operating Width (Outriggers Deployed) - in (mm)
    151 (3,585)
    Transport Length - in (mm)
    126 (3,200)
    Operating Length (Outriggers Deployed) - in (mm)
    168 (4,265)
    Operating Tower Wind Speed Rating - MPH (km/h)
    55 (88)
    Trailer Weight - lbs (kg)
    3,430 (1,556)
    Trailer GVWR - lbs (kg)
    5,000 (2,267)
    Number of Units on 48 Flatbed
    7
    Number of Units on 53 Flatbed
    7

    **Prime generator electrical output per Allmand® testing
    ****All power levels are stated gross horsepower as rated by the engines© manufacturers
    Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

    Outlets

    8kW Models

    Standard (2) 20 A 120 VAC duplex GFCI outlets, (2) 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R), (1) 30 A RV outlet

    15kW & 20kW Models

    Standard (2) 20 A 120 VAC duplex GFCI outlets, (3) 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R), (1) 50 A Twist Lock

    Options

    Metal Halide Package

    • (4) Metal Halide light fixtures
    • (6) Metal Halide light fixtures


    LSC with E-Stop Package

    • LSC 2.1™ – Light Sequence Commander® automatically starts engine at sunset and shuts down engine at sunrise – programmable for user preferences.
    • Emergency stop switch on exterior of machine
    • Low Fuel Sender with Low Fuel Beacon
    • Heavy-duty battery


    Artic Package
    (Only available with Cold Weather Package)

    • Heated fuel/water separator
    • Radiator cover
    • Adjustable air vent cover panel


    Mining Package

    • Safety Run beacon
    • Reflective Tape
    • Wheel chocks
    • Metal halide SFR (Secondary Fixture Retention) (Not available on LED)
    • Vertical exhaust w/ shield (8 kW Only)
    • Muffler wrap


    Engine Air Intake Shut-Off Valve


    Airstar Package
    (4-light Metal Halide Only)


    Interior Work Lights


    Emergency Stop
    (Standard on 20kW)


    Telematics Package
    (Customer Supplied) Must contact Factory for Lead Time Availability

    CSA Certification



    Cold Weather Package

    • Block Heater
    • Arctic hydraulic fluid
    • Heavy-duty battery (8 kW only)



    Arctic Max Package
    (Only available with Arctic Package and LSC)

    • Diesel fired block heater (controlled by LSC)
    • Muffler wrap
    • Dual heavy-duty batteries


    Special Outlet Package
    (15 kW and 20 kW only)

    • 30A RV Outlet
    • 50A RV Outlet


    Battery Disconnect


    Reversible Coupler

    • 2" Bulldog / 3" Pintle
    • 2-5/16" Bulldog / 3" Pintle


    Chip Resistant Panels



    Low Fuel Shut-Off & Low Fuel Beacon
    (Standard on 20 kW)


    Custom Paint


    Skid Mount


    Galvanized Tower

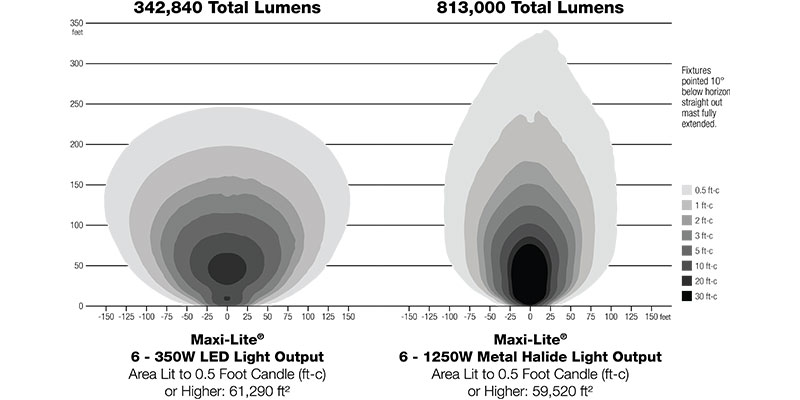

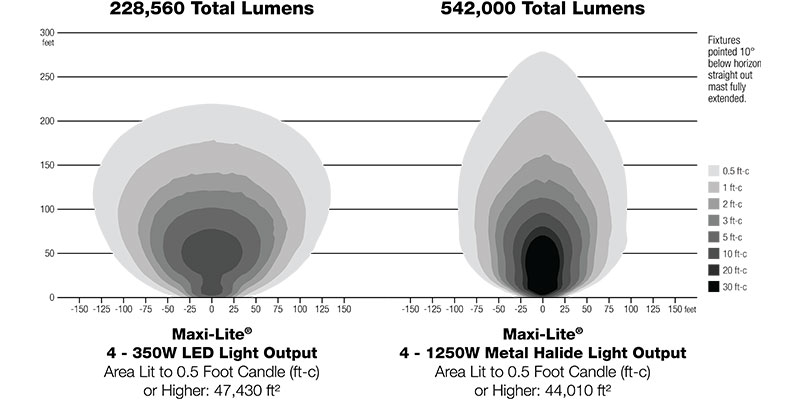

    Light Coverage

    Related Products

    Night-Lite Pro II LD-Series Light Tower
    Night-Lite Pro II®
    LD-Series
    View Product >

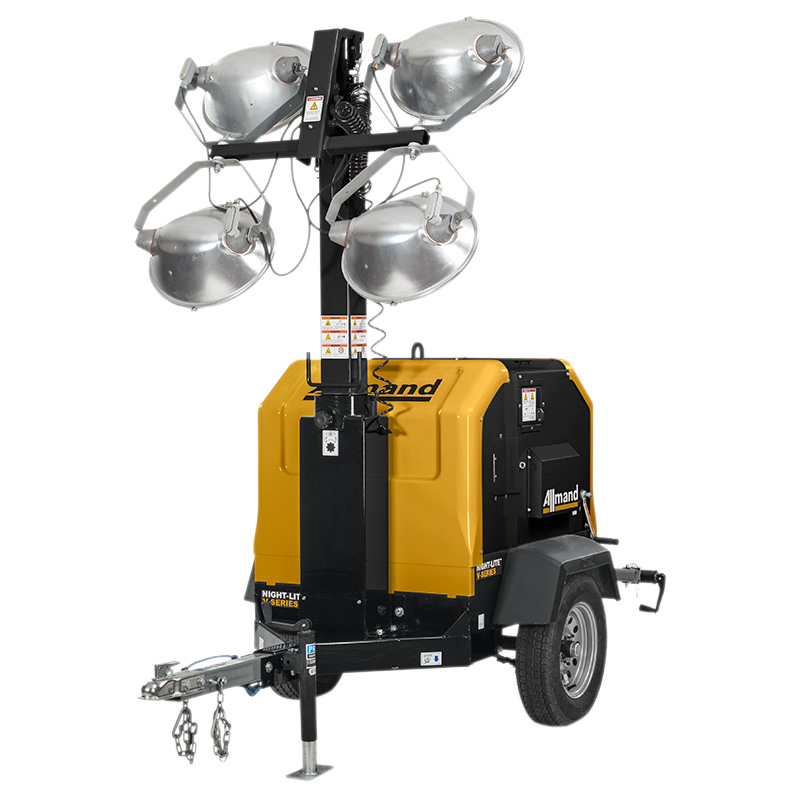

    Night-Lite Light Tower
