Maxi-Heat® HC-500

Maxi-Heat® HC-500

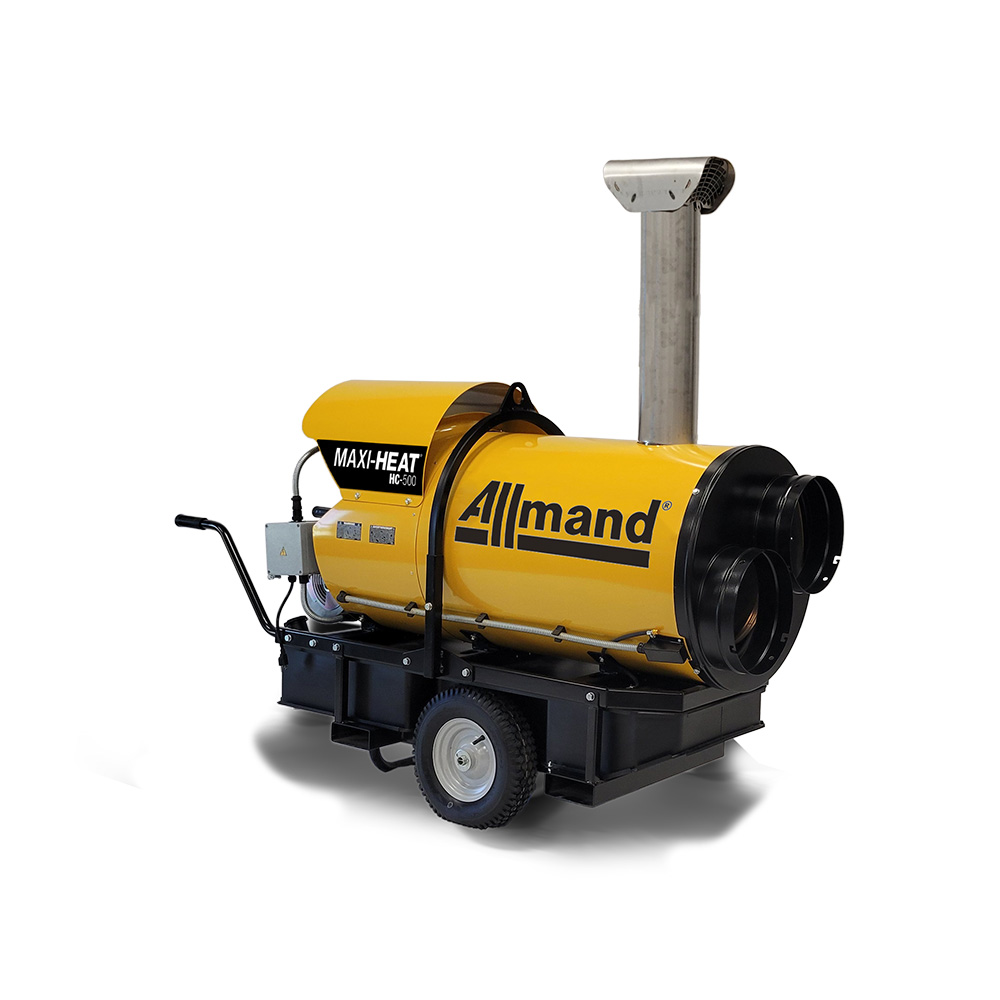

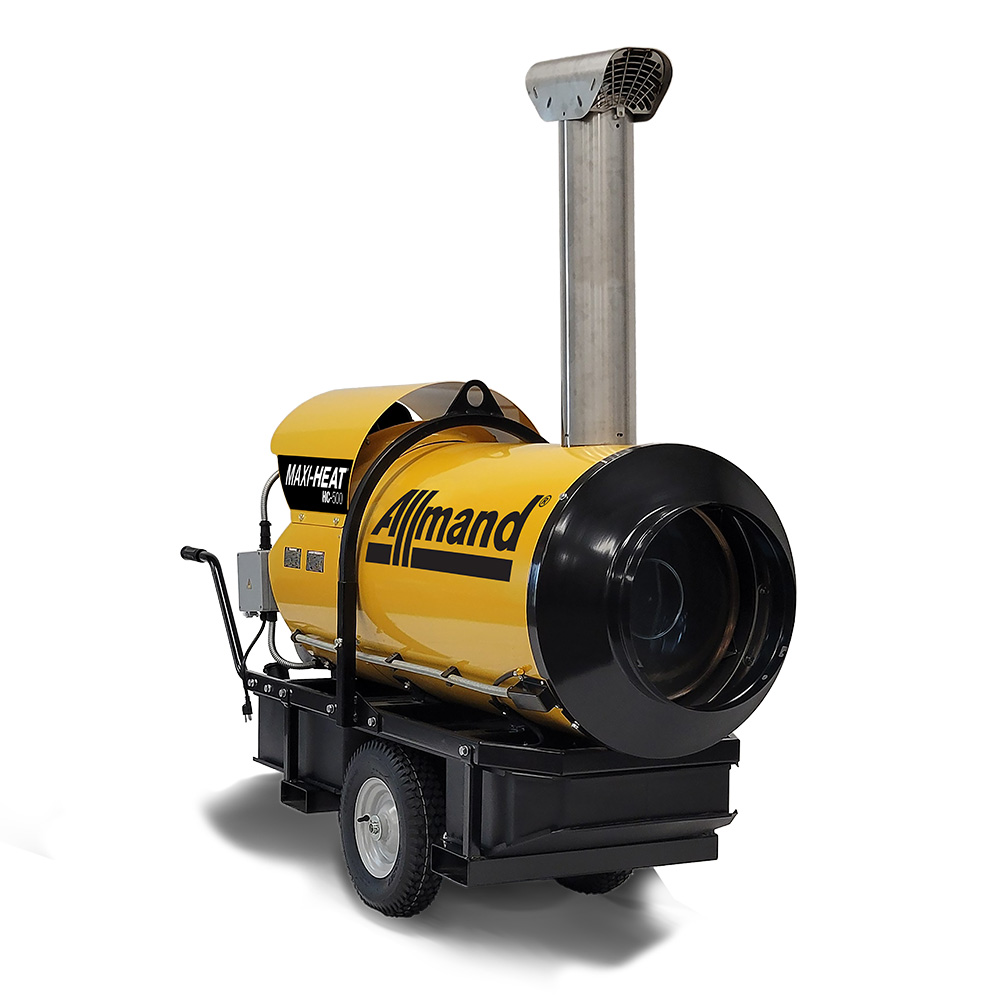

The new Allmand® Maxi-Heat® HC-500 heater cart is a portable indirect fired heater that will provide plently of heat for different applications ranging from warming equipment to curing concrete. The simple on/off operation of the unit requires a power source of a standard 120V 15A GFCI outlet, and diesel no. 1 or 2 fuel, or kerosene to ignite the burner. The HC-500 will run at a maximum capacity up to 500,000 BTUs of heat while running with airflow at 3,100 cfm and a runtime up to 13 hours on a 46 gallon fuel tank. Maxi-Heat brings the heat you can rely on when you need it most!

For more product support, vist the Maxi-Heat® HC-500 operations page.

3,100

Heated Air Output (cfm)

13.1

Operating Time (hrs)

46

Fuel Capacity (gal)

115

Electrical Voltage (V)

Features

Sleek Design

Allowing for ease of portability and maneuverability.

Easy Accessible Maintenance

Heater cart can be tilted to access the burner and its components.

Fuel Tank

46 gallon (174 liter) fuel tank extends operation.

Simple Control Panel

ON/OFF switch with run light indicator, reset button, and socket for remote thermostat option.

500,000 BTUs of Heat

Fuel Level Gauge

Adjustable Air Damper

Fuel Filter

Specifications

At least one product must be displayed. Please select another option to remove this product

Fan Motor Horsepower (@ 1,750 RPM)
1.5
BTU per Hour
500,000
Heated Air Output Maximum (cfm)
3,100
Diesel Pressure
174 PSI
Static Pressure
1.1 WC
Duct Flange Outlets
Twin 12" or Single 16"
Outlet Temperature Rise
200°F (93°C)
Ducting Length - Continuous Heating
100 ft (30 m)
Warranty
Limited 3-Year Warranty
Electrical Amperage
13.4 A
Electrical Voltage
115 V
Electrical Frequency
60 Hz
Fuel Capacity - gal (L)
46 (174)
Fuel Consumption per Hour - gal (L)
3.5 (13.2)
Operating Time (hrs)
13.1 hrs
Net Weight - lbs (kg)
400 (181)
Operating Weight - FULL Fuel - lbs (kg)
722 (327)
Length - in (mm)
84 in (2,134 mm)
Width - in (mm)
57 in (1,448 mm)
Height (without Chimney Installed)
47 in (1,194 mm)
