    Maxi-Heat® 1M BTU

    MaxiHeat 1M BTU
    MaxiHeat 1M BTU

    Maxi-Heat® 1M BTU

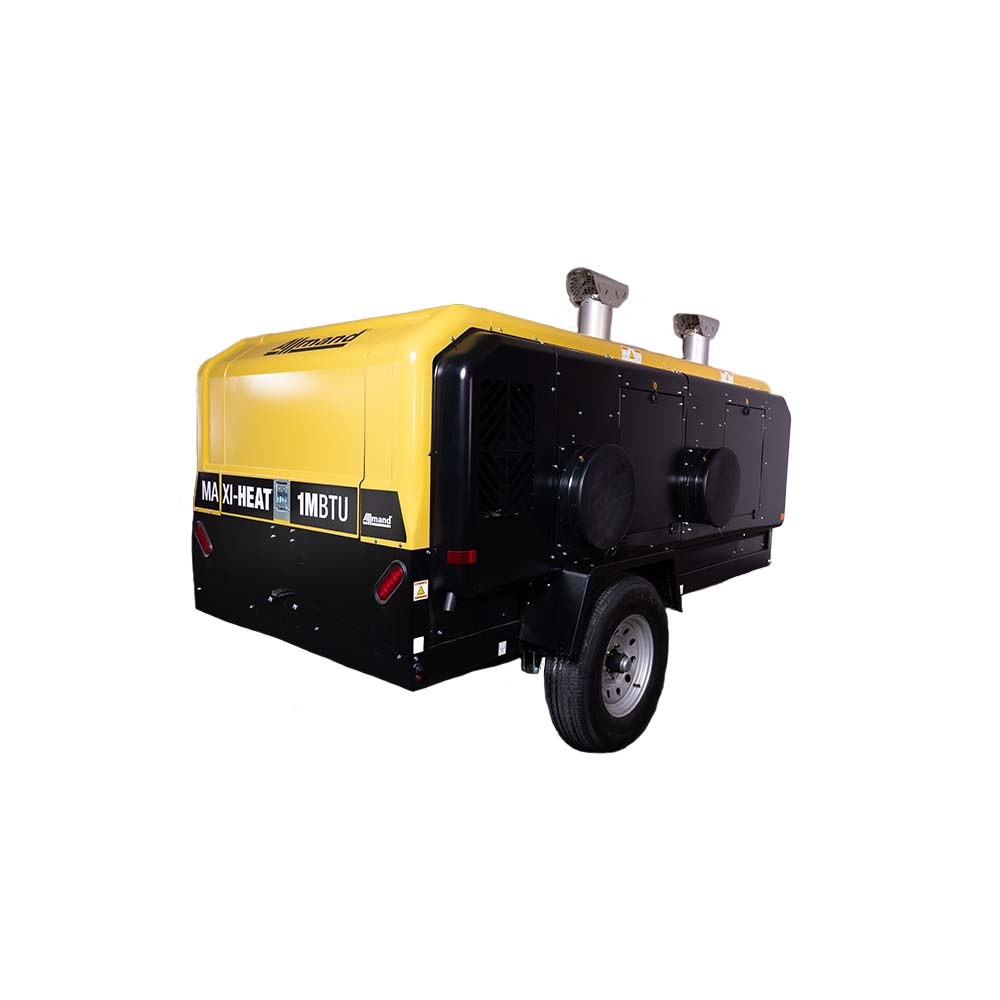

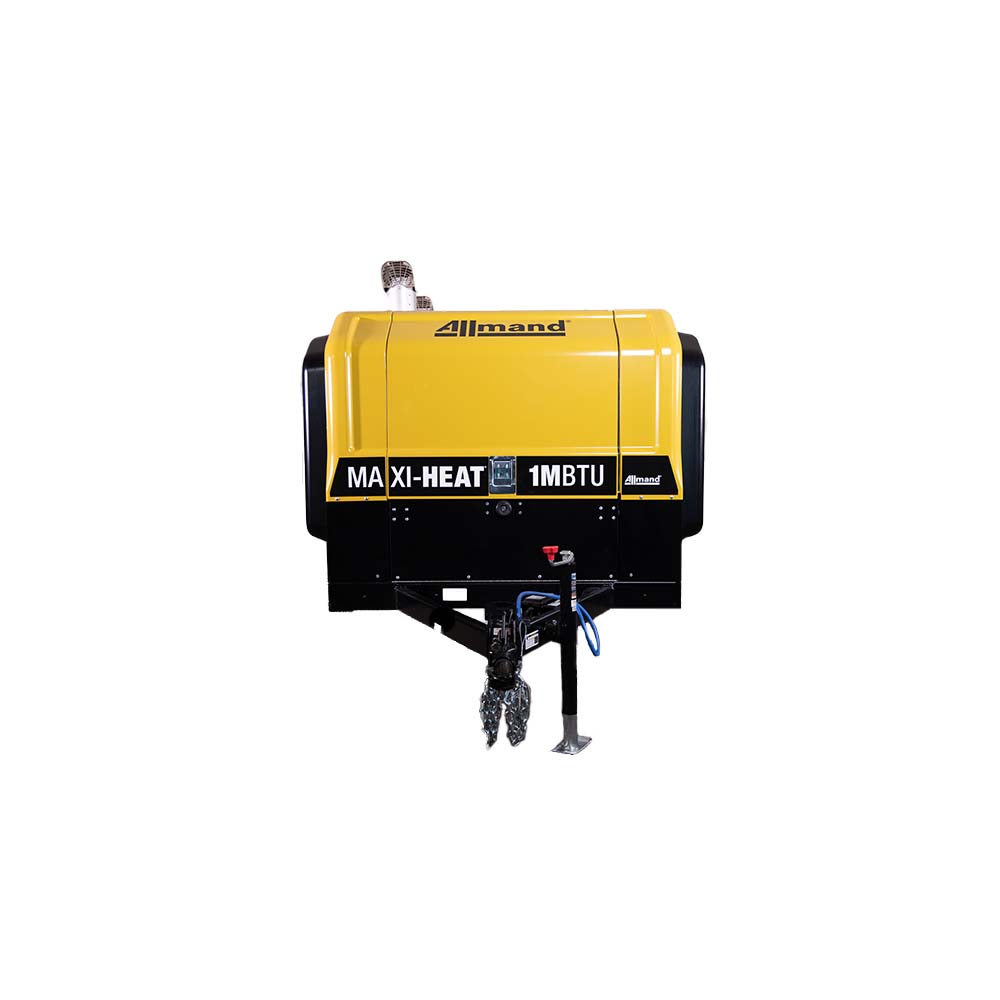

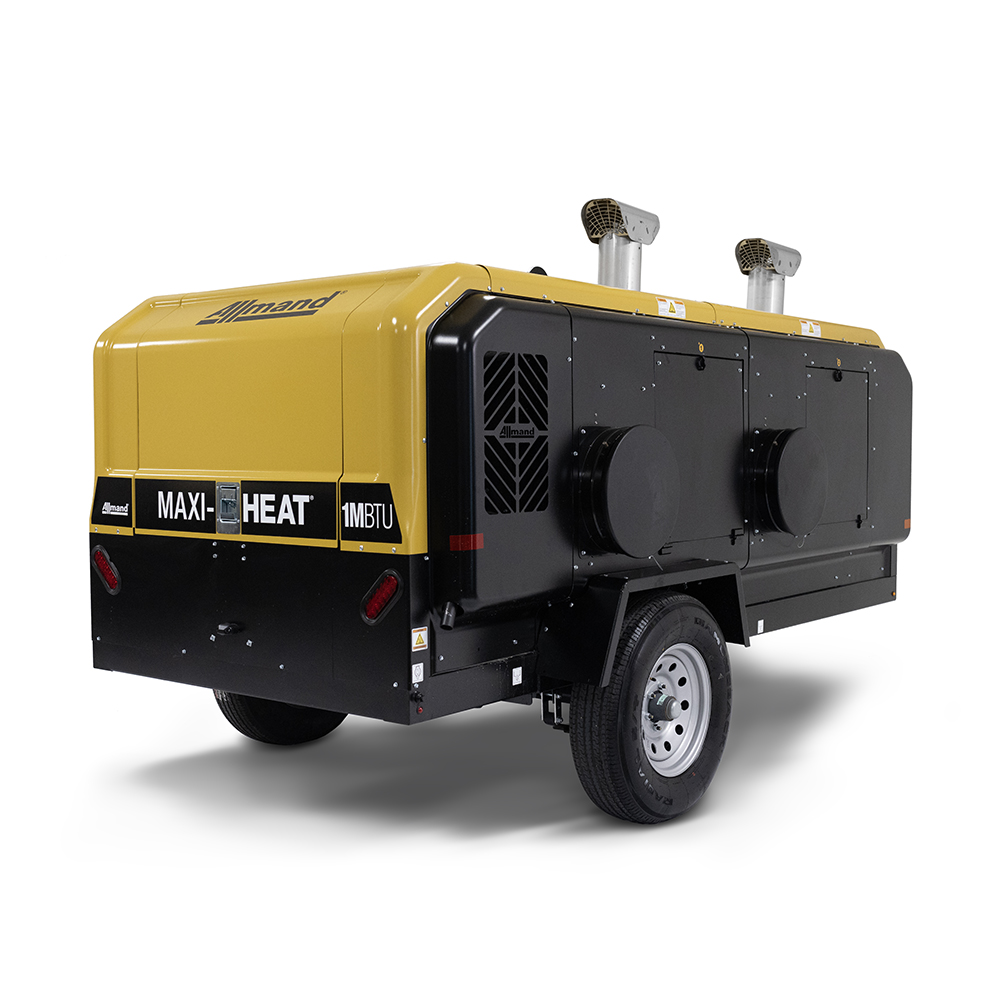

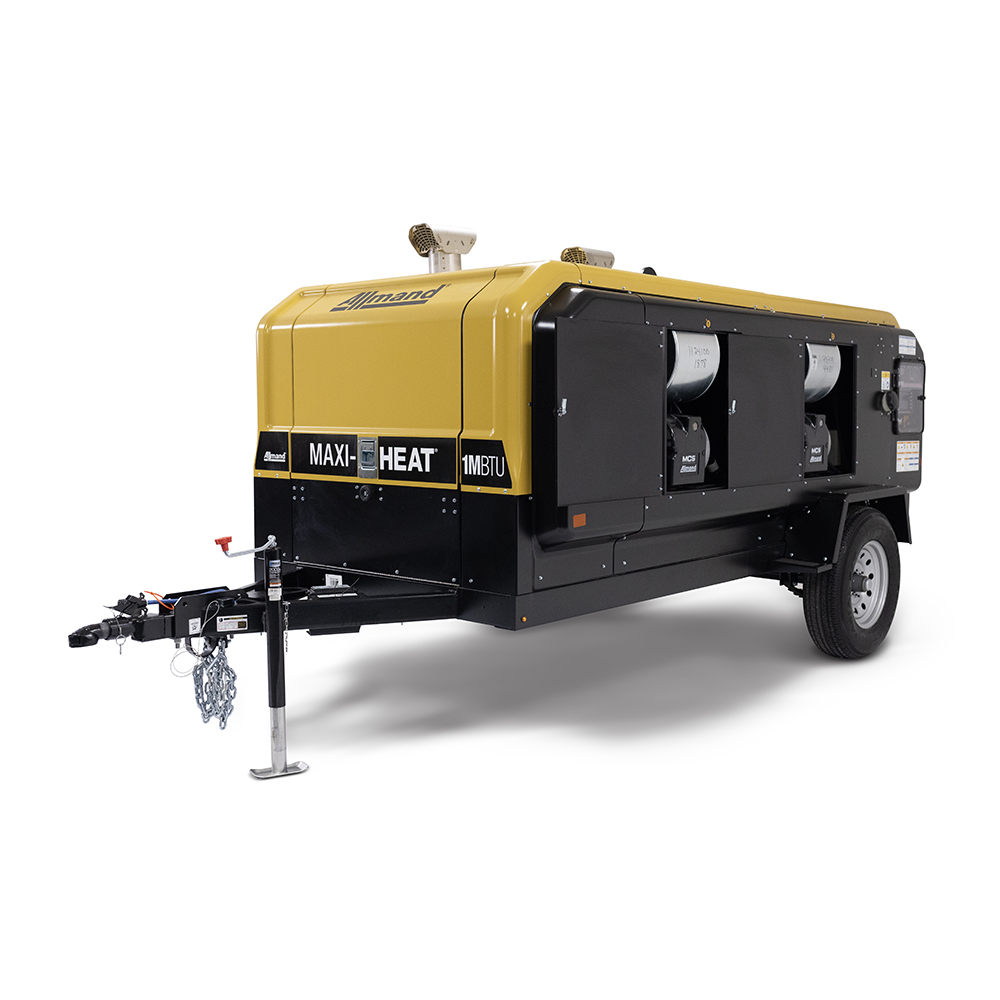

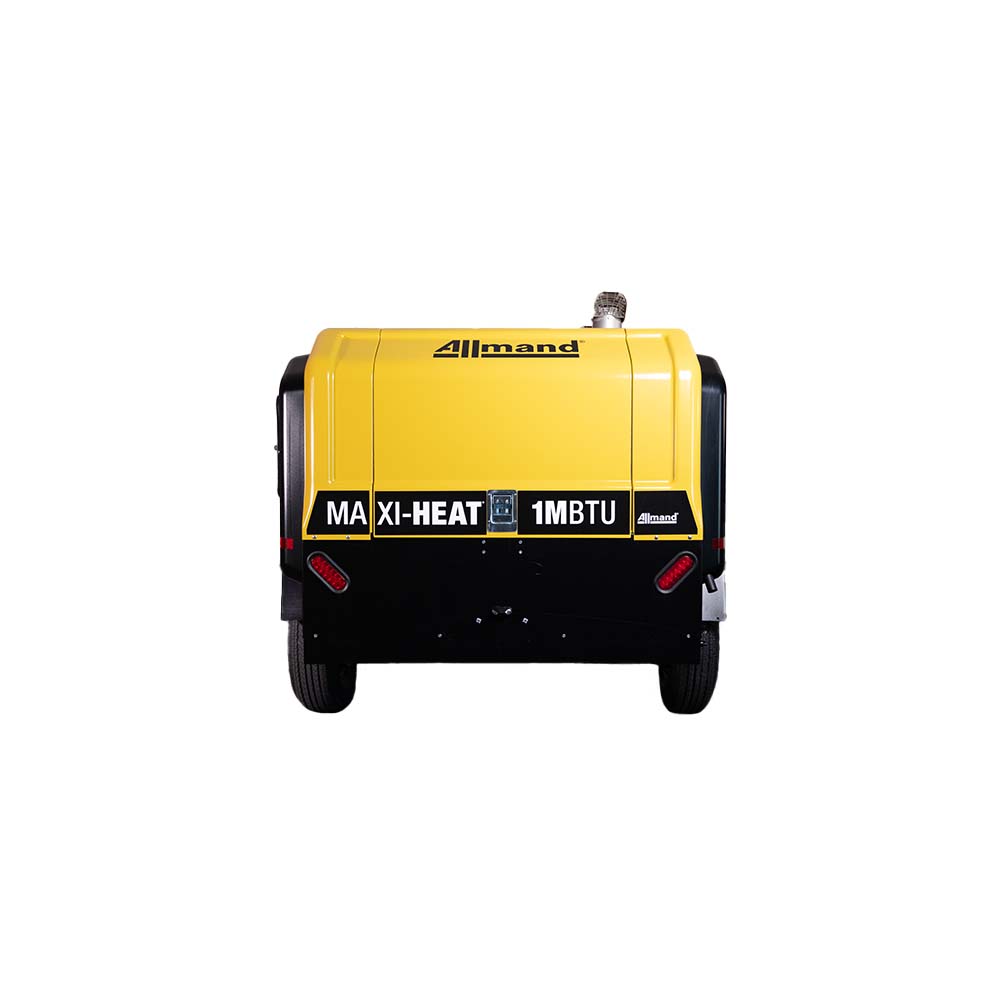

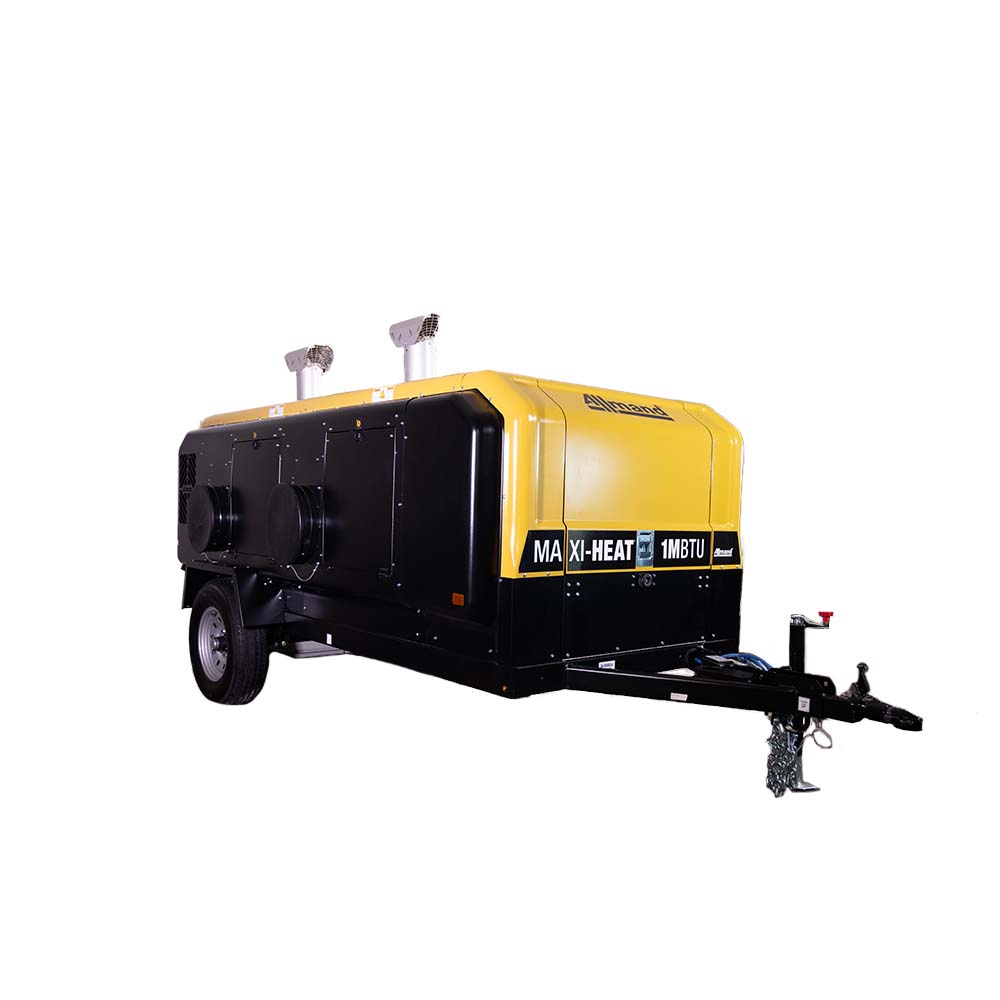

    The new Maxi-Heat® mobile diesel heater features two independently operating burners which deliver 1,000,000 (1M) BTUs of self-contained, indirect fired heat. These units are robustly designed, performing even in the harshest conditions. For ease of operation the Maxi-Heat® comes fully equipped with the iQ system, which automatically calibrates each burner. This provides reliable trouble free operation, eliminating the tedious trial and error combustion measurements and adjustments. Recirculation is standard on all Maxi-Heat® products resulting in increased efficiency and less fuel consumption. The Maxi-Heat® can go from warming equipment to curing concrete, it's the towable heater you can rely on when you need it most.

    For a tutorial video and more product support, vist the Maxi-Heat® operations page.

    3,530

    Heated Air Output (cfm)

    37.8

    Operating Time (hrs)

    210

    Fuel Capacity (gal)

    8

    Generator Prime Power (kW)
    Allmand
    Feature

    Features

    Centrifugal Fan

    Provides decreased dBA output and increased air flow efficiency.

    External Control Panel

    Provides the operator with the necessary operating parameters needed during operation eliminating the need to open the heater door.

    iQ System

    Automatically calibrates burner for temperature, humidity and barometric pressure. Provides damper setting on color display, information on efficiency and target and actual outlet temperatures.

    Fluid Containment System (FCS)

    Provides 130% + fluid containment for all on-board fluids.

    Reversible Coupler

    Adjustable height 2" Bulldog and 3" pintle.

    Durable Steel Enclosure

    Built to last through the toughest environments and conditions.

    Flexible Applications

    Twin heater units on the 1M BTU model and Single heater unit on the 500K model providing flexibility of heat needed for the jobsite.

    Sleek Design

    Allows for ease of transport and maneuverability.

    CSA Approved

    Multi-tank only.

    16", 12" or 20" Duct Flange Outlets

    Lifting Eye

    Specifications

    At least one product must be displayed. Please select another option to remove this product

    Engine Brand
    CAT C1.1
    Engine Model
    C1.1
    Fuel Capacity - gal (L)
    210 (794.9)
    Phase
    1-Phase
    Prime Power
    8
    Operating Time (hrs)
    37.8
    Frequency
    60
    Heated Air Output (cfm)
    3,530
    Horse Power (@ 1,800 RPM)****
    13.8
    Oil Change Interval
    1,000
    Engine Tier
    Tier 4 Final
    Gross Vehicle Weight Rating (GVWR) - lbs(kg)
    6,000
    Length - in (mm)
    142.2 (3663)
    Width - in (mm)
    80.2 (2038)
    Height - Top of Stack - in(mm)
    83.9 (2130)

    *Prime generator electrical output per Allmand® testing.
    **Based on one hour run test full fuel tank consumption.
    ***All power levels are stated gross horsepower as rated by the engines' manufacturers.
    Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator's manual or www.allmand.com website for completed warranty details.

    Engine Brand
    Kubota D1005
    Engine Model
    D1005
    Fuel Capacity - gal (L)
    210 (794.9)
    Phase
    1-Phase
    Prime Power
    8
    Operating Time (hrs)
    37.8
    Frequency
    60
    Horse Power (@ 1,800 RPM)****
    11.6
    Oil Change Interval
    1,000
    Engine Tier
    Tier 4 Final
    Gross Vehicle Weight Rating (GVWR) - lbs(kg)
    6,000
    Length - in (mm)
    183,4 (4657)
    Width - in (mm)
    80.2 (2038)
    Height - Top of Stack - in(mm)
    83.9 (2130)

    *Prime generator electrical output per Allmand® testing.
    **Based on one hour run test full fuel tank consumption.
    ***All power levels are stated gross horsepower as rated by the engines' manufacturers.
    Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator's manual or www.allmand.com website for completed warranty details.

    Options

    Thermostat Package

    • Remote thermostat
    • Lead extension

    2 - 5/16" Bulldog Hitch

    Loackable Battery Disconnect

    • 12", 16" or 20" Duct Flange Outlets (ducts not included)

    Air Shut Off Valve

    Custom Paint

    Telematics

    • Customer supplied - consult factory
