Maxi-Power™ 8XR™

Maxi-Power™ 8XR™

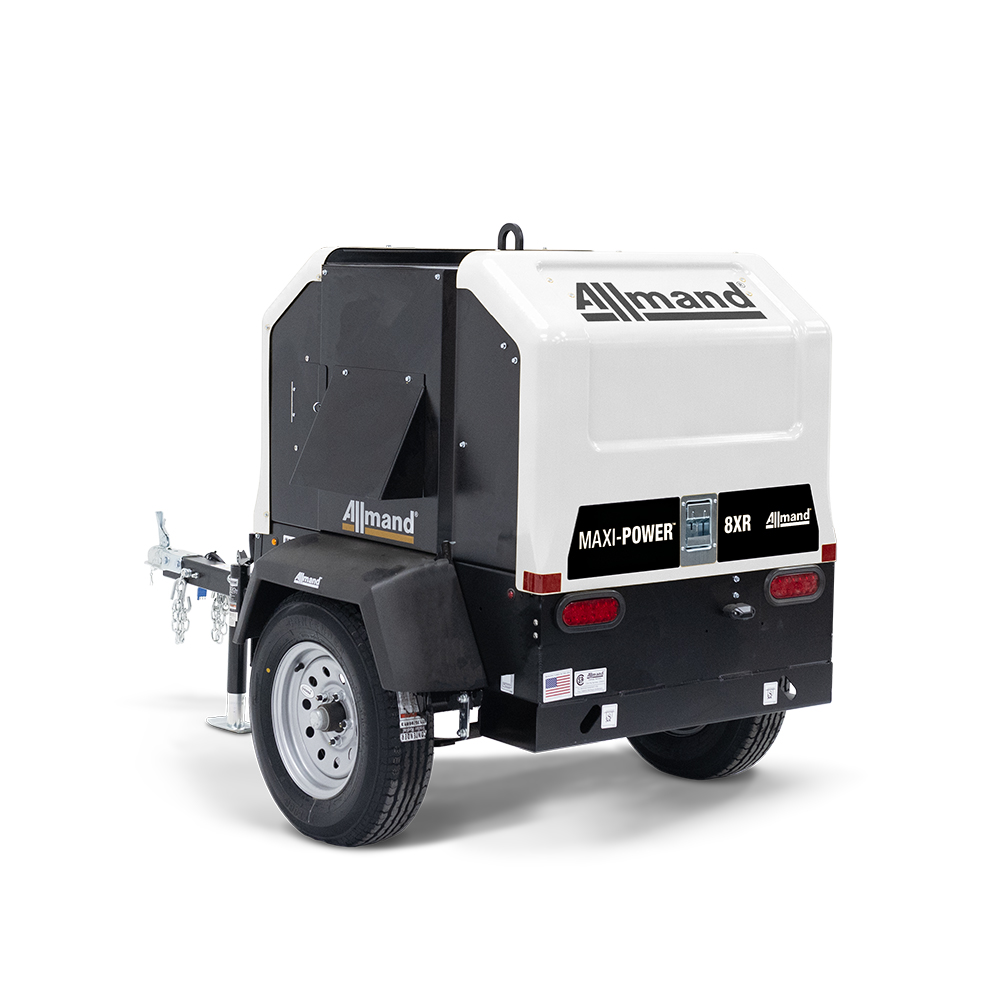

The NEW Maxi-Power™ 8XR, is an Allmand® compact workhorse single-phase towable generator providing up to 8kW of prime power. The small rugged design is durable for job site and event applications, such as powering work sheds or small equipment. Whether it is providing power for building on the construction site or for a concert event the Maxi-Power 8XR gets the job done.

For more product support, visit the Maxi-Power™ 8XR operations page.

8

Standby Power (kVA)

8

Prime Power (kVA)

57

Run Time (Hrs)

65.8

Sound Level (dBA)

Features

Fluid Containment System (FCS)

Holds 110% of all on-board fluids.

Deep Sea L401 Controller

With on screen fuel gauge, low fuel shutdown, scheduling, and auto-start.

45 Gal (170 L) Fuel Tank

For extended runtime.

All Steel Construction

With durable powder coat finish.

Remote Engine Oil Drain

8 kW / 8 kVA Single-Phase Generator

Emergency Stop

VIN Package

Specifications

At least one product must be displayed. Please select another option to remove this product

Engine Brand
Kubota
Engine Model
D1105
Engine Tier
Tier 4 Final
Prime Power - kVA (kW)***
8 (8)
Battery (V)
12
Insulation
Class H
Integral Fuel Tank Capacity (gal)
45 US gal (170 L)
Runtime @ Full Load (hrs)
57
Main Breaker Size (Amps)
35
Sound Level @ 23 ft. (No Load) - dBA
65.8
Engine Oil Change Interval (hrs)
1000
Trailer Length (in)
104 in (2,642 mm)
Trailer Width (in)
53 in (1,346 mm)
Trailer Height (in)
57 in (1,448 mm)
Oil Capacity
5.4 US qts (5.1 L)
Number of Units on 48 Flatbed
18 units
Number of Units on 53 Flatbed
20 units
Maximum Ambient Operating Temperature Full Output
120° F (49°C)
Mechanical Output Gross Hp
13.5
Generator Control Interface
Deep Sea L401
Gross Vehichle Weight Rating GVWR
2,200 (997.9)
Assembled Weight
1,885 (855)
Marketing Model
MP8XR

*Prime generator electrical output per Allmand® testing.
**Based on one hour run test full fuel tank consumption.
***All power levels are stated gross horsepower as rated by the engines manufacturers
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual or www.allmand.com website for complete warranty details.
† Pending Final Testing by Allmand
