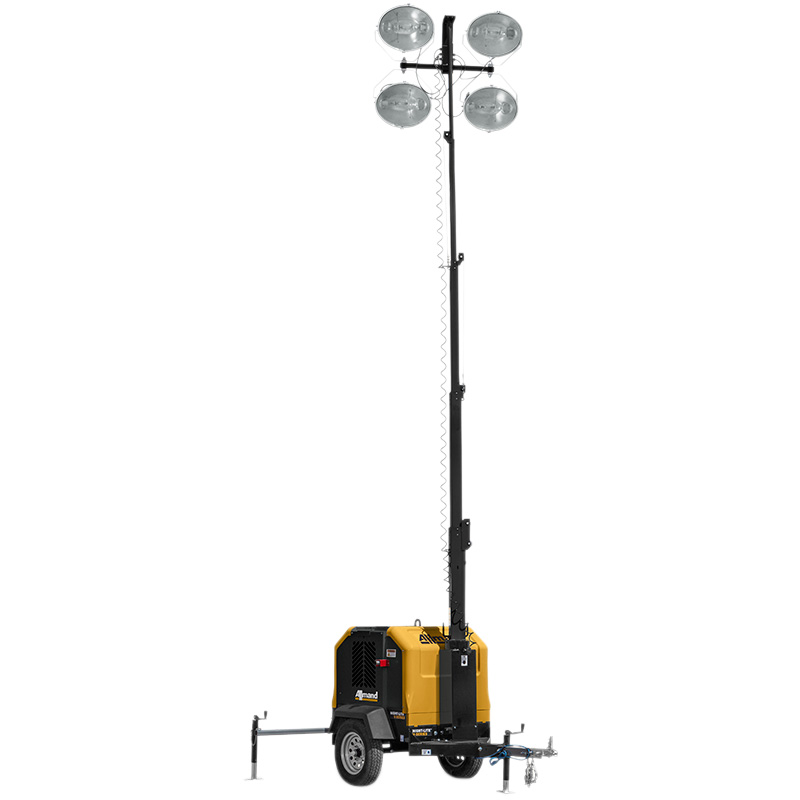

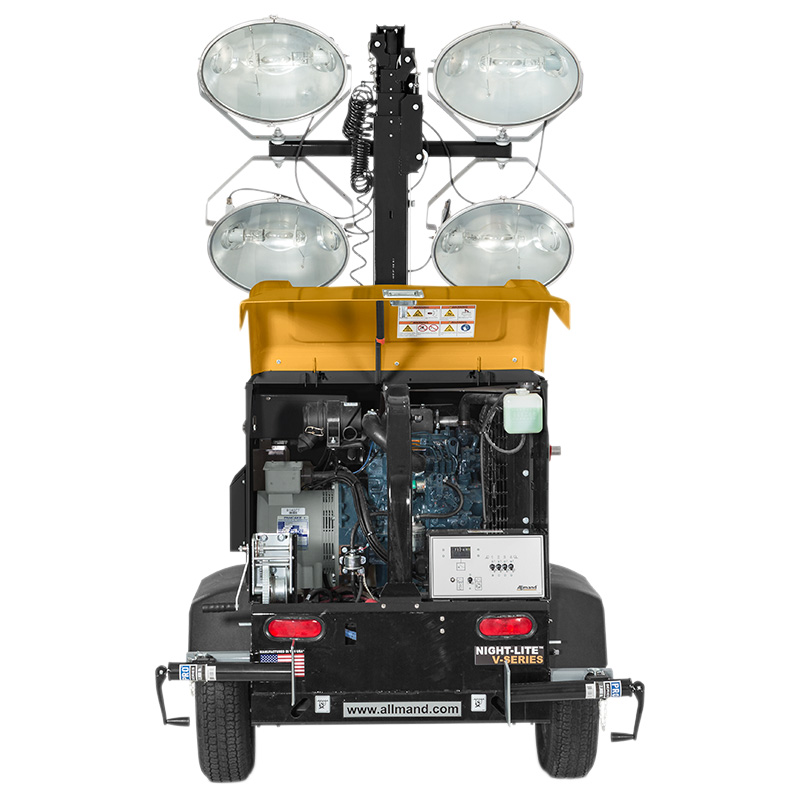

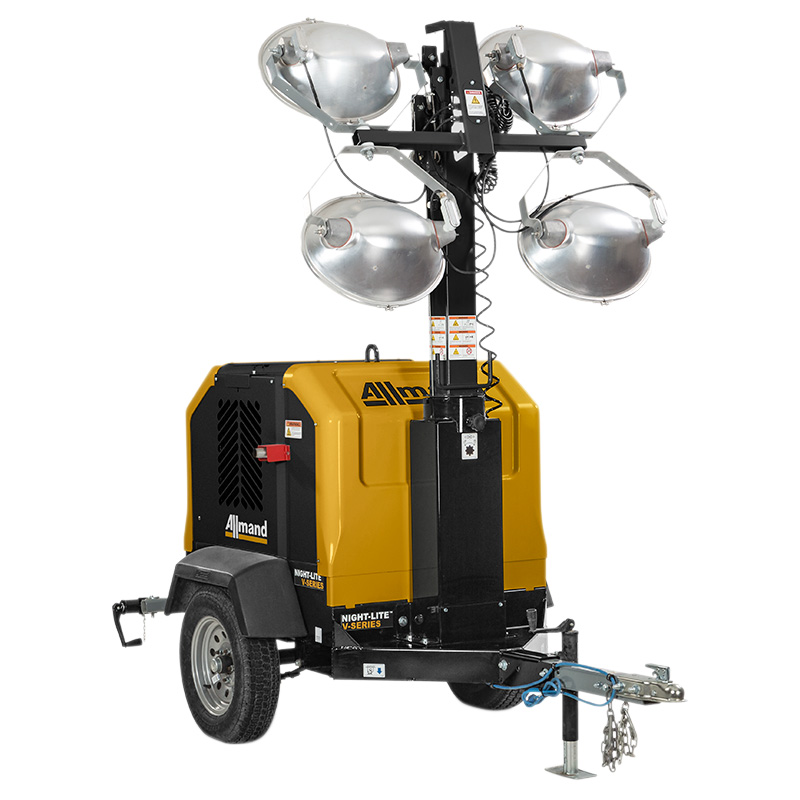

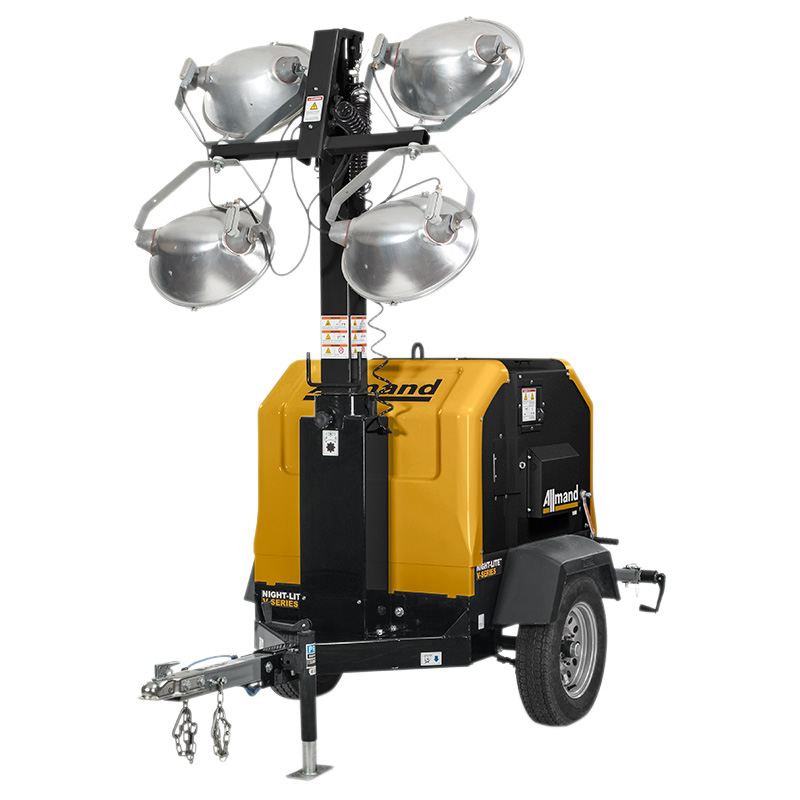

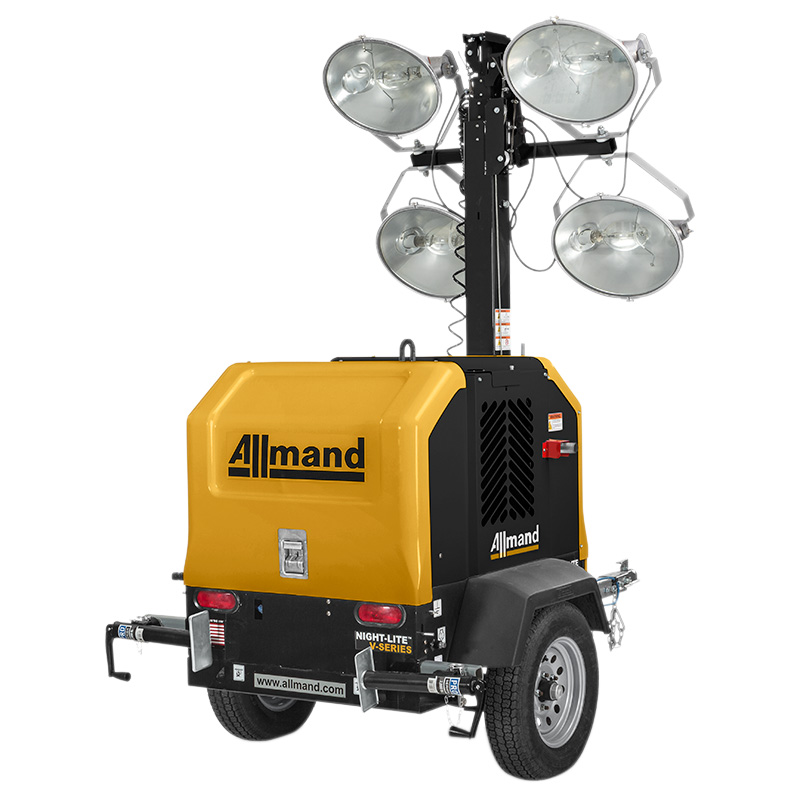

Night-Lite™

Night-Lite™

V-Series® (60Hz)

An ROI-driven solution, the Night-Lite™ V Series® is built with the efficiency, durability and performance you demand. It will run up to 155 hours between refueling (with LEDs), and has a convenient fuel fill neck for quick refueling. Plus, it offers 440,000 to 542,000 total lumens from the four SHO-HD™ light fixtures and minimize freight costs because up to twenty units fit easy on a flatbed trailer.

1,250

Metal Halide Wattage

542,000

Metal Halide Lumens (total)

320

LED Wattage

154,000

LED Lumens (total)

Features

Sequenced Lighting System (SLS™)

Automatically delays engine shutdown to turn off lights and prevent the generator from shutting down while under load.

Tower

Structure - Five-section tubular steel design
Actuation - Manual winch, standard
Tower rotation - 359° fixture rotation
Guide pads - Polyethylene self-lubricating

Trailer Lighting

Stop, turn, tail lights / side marker lights / illuminated license plate bracket.

Stabilizers

Three-point design, tongue jack, (2) retractable side outriggers at front of trailer.

Remote Engine Oil and Coolant Drain

Easily accessible at rear of trailer

170 Liter Polyethylene Fuel Tank

Fluid Containment System (FCS)

Holds up to 110% of the fuel and engine oil capacity to protect sensitive environments from inadvertent leaks and spills.

Axle

Tubular axle with elliptical leaf springs.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Brand
Kubota
Engine Prime Power (kW)**
7
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
Metal Halide Lumens (per lamp)
135,500
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
72.6
LED Wattage (per lamp)
320
LED Lumens (total)
154000
Shipping Weight (kg)
855
Shipping
18 units on a 48 foot flatbed trailer / 20 units on a 53 foot flatbed trailer 10 units on a 20 foot ocean container / 22 units on a 40 foot ocean container
Width Transport (m)
1.35
Height* Mast Lowered (m)
2.6
Engine Model
D1005
Fuel Capacity - (L)
170.3
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (total)
542000
Light Type - LED
(4) Two LED, 5000°K color temperature
LED Lumens (per lamp)
38500
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
155.2
Gross Vehicle Weight Rating (GVWR) (kg)
988
Length Transport (m)
2.80
Width Operating (m)
2.7
Height* Mast Raised (m)
7.5
Engine Brand
Mitsubishi
Engine Prime Power (kW)**
6
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
Metal Halide Lumens (per lamp)
135,500
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
75
LED Wattage (per lamp)
320
LED Lumens (total)
154000
Shipping Weight (kg)
855
Shipping
18 units on a 48 foot flatbed trailer / 20 units on a 53 foot flatbed trailer 10 units on a 20 foot ocean container / 22 units on a 40 foot ocean container
Width Transport (m)
1.35
Height* Mast Lowered (m)
2.6
Engine Model
L3E
Fuel Capacity - (L)
170.3
Metal Halide Wattage (per lamp)
1,250
Metal Halide Lumens (total)
542000
Light Type - LED
(4) Two LED, 5000°K color temperature
LED Lumens (per lamp)
38500
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
121.6
Gross Vehicle Weight Rating (GVWR) (kg)
988
Length Transport (m)
2.80
Width Operating (m)
2.7
Height* Mast Raised (m)
7.5

*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

Engine Brand
Mitsubishi
Kubota
Mitsubishi
Engine Model
L3E
D1005
L3E
Engine Prime Power (kW)**
6
7
6
Fuel Capacity - (L)
170.3
170.3
170.3
Light Type - Metal Halide
(4) Metal Halide SHO-HD® fixture
(4) Metal Halide SHO-HD® fixture
(4) Metal Halide SHO-HD® fixture
Metal Halide Wattage (per lamp)
1,250
1,250
1,250
Metal Halide Lumens (per lamp)
135,500
135,500
135,500
Metal Halide Lumens (total)
542000
542000
542000
Operating Time (hrs)*** (Using four 1,250 W metal halide light fixtures)
75
72.6
75
Light Type - LED
(4) Two LED, 5000°K color temperature
(4) Two LED, 5000°K color temperature
(4) Two LED, 5000°K color temperature
LED Wattage (per lamp)
320
320
320
LED Lumens (per lamp)
38500
38500
38500
LED Lumens (total)
154000
154000
154000
Operating Time (hrs)*** (Using four 320 W LED light fixtures)
121.6
155.2
121.6
Shipping Weight (kg)
855
855
855
Gross Vehicle Weight Rating (GVWR) (kg)
988
988
988
Shipping
18 units on a 48 foot flatbed trailer / 20 units on a 53 foot flatbed trailer 10 units on a 20 foot ocean container / 22 units on a 40 foot ocean container
18 units on a 48 foot flatbed trailer / 20 units on a 53 foot flatbed trailer 10 units on a 20 foot ocean container / 22 units on a 40 foot ocean container
18 units on a 48 foot flatbed trailer / 20 units on a 53 foot flatbed trailer 10 units on a 20 foot ocean container / 22 units on a 40 foot ocean container
Length Transport (m)
2.80
2.80
2.80
Width Transport (m)
1.35
1.35
1.35
Width Operating (m)
2.7
2.7
2.7
Height* Mast Lowered (m)
2.6
2.6
2.6
Height* Mast Raised (m)
7.5
7.5
7.5

*Balloon light only included in raised dimension – balloon light is removed for transportation.
**Prime generator electrical output per Allmand® testing.
***Based on one hour run test full fuel tank consumption.
Allmand® has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice. See operator’s manual for complete warranty details.

Outlets

Standard (Mitsubishi)

20 A 120 VAC duplex GFCI / 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R) / 30 A 120 VAC RV (NEMA TT-30R)

Standard (Kubota)

20 A 120 VAC duplex GFCI / 30 A 240 VAC 3-Wire Twist Lock (NEMA L14-30R) / 30 A 120 VAC RV (NEMA TT-30R)

Options

Galvanized Tower



Ship Racking



LED Package

(4) LED light fixtures



LSC with E-Stop Package (Not available with Mitsubishi Engine)

LSC 2.1™ – Light Sequence Commander® automatically starts engine at sunset and shuts down engine at sunrise – programmable for user preferences.

Emergency stop switch on exterior of machine



Marathon Alternator (Not available with Perkins Engine)



Telematics Package (Customer supplied – consult factory)

Electric Winch Actuated Light Tower



Lockable Battery Disconnect



Reversible Coupler

2" ball with 3" pintle



Custom Paint



Fuel Level Gauge



Fluid Containment System (FCS)
