Port-A-Lite®

Port-A-Lite®

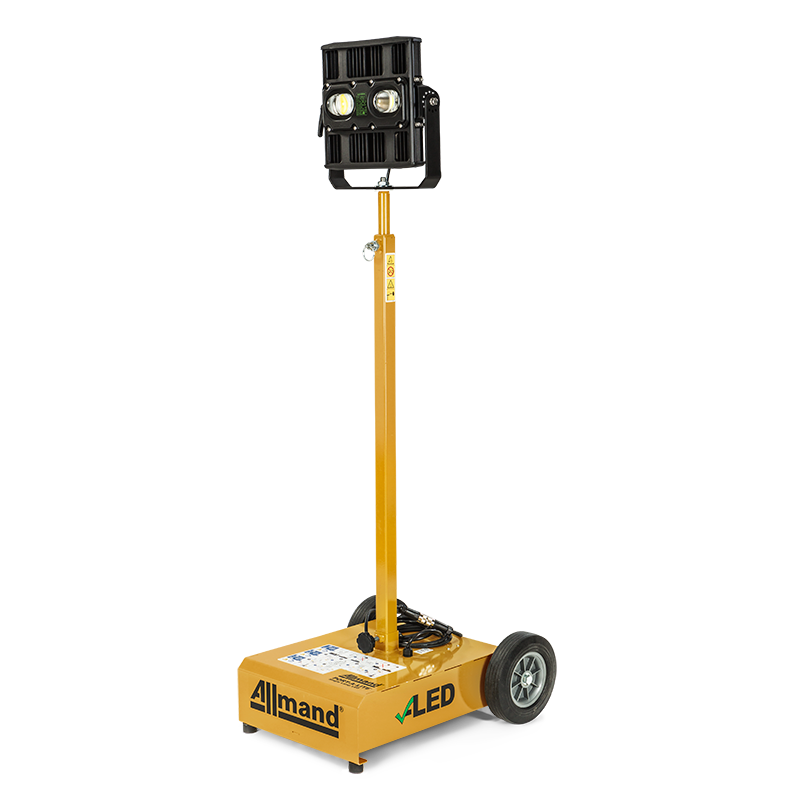

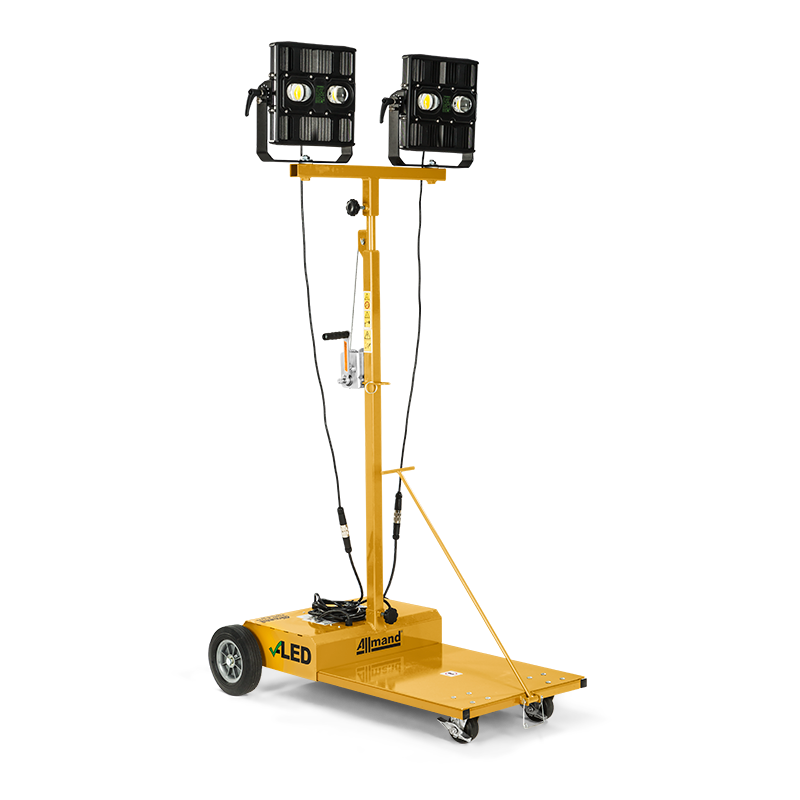

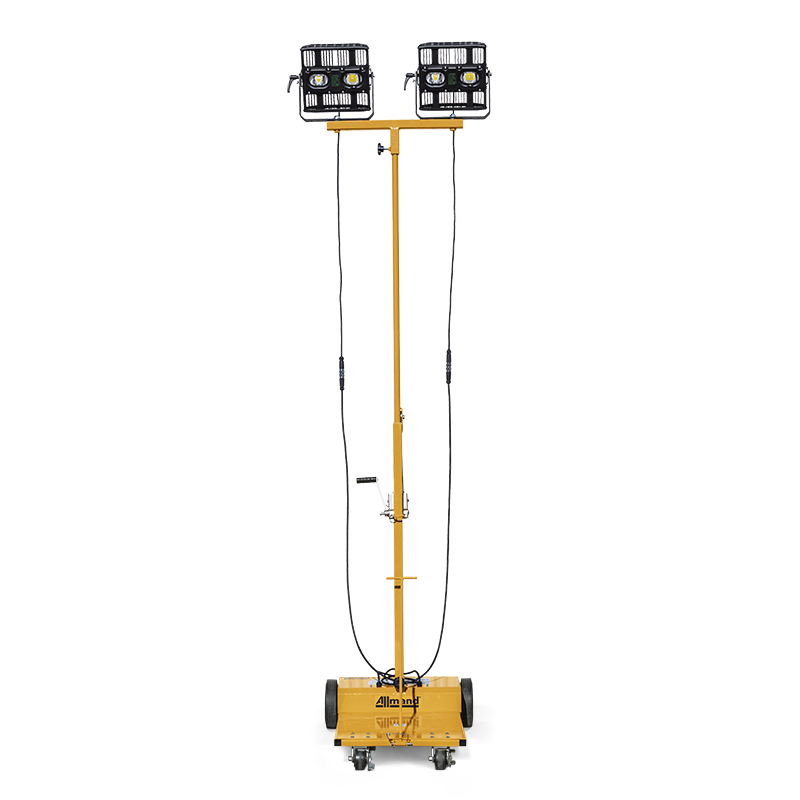

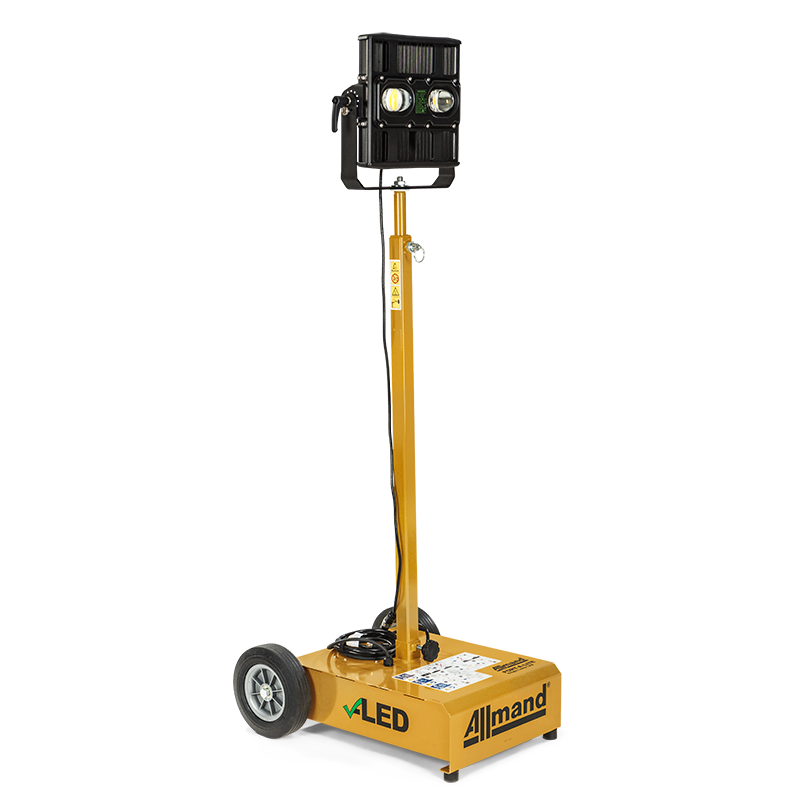

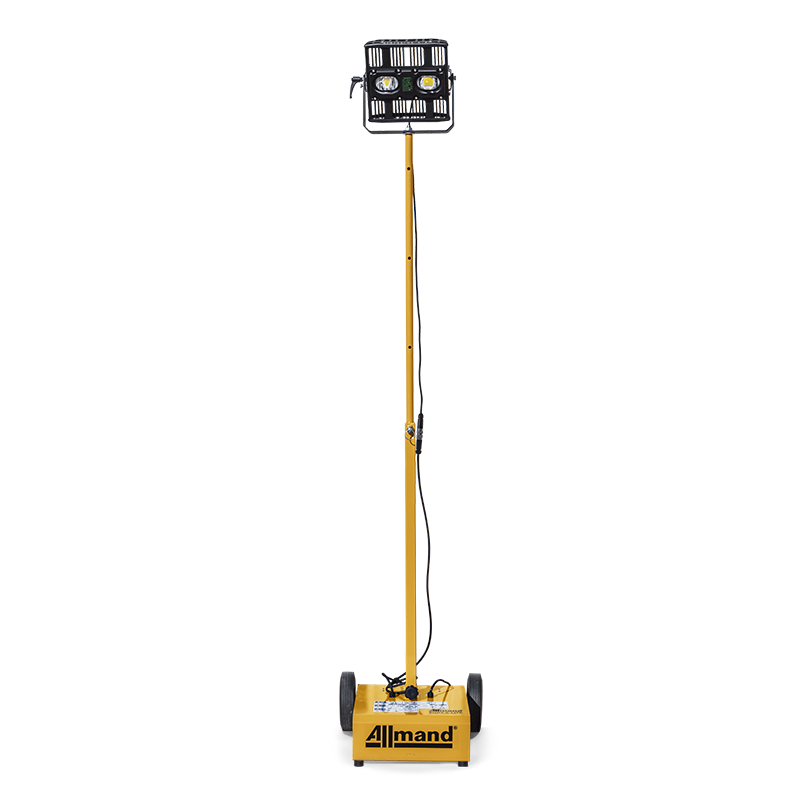

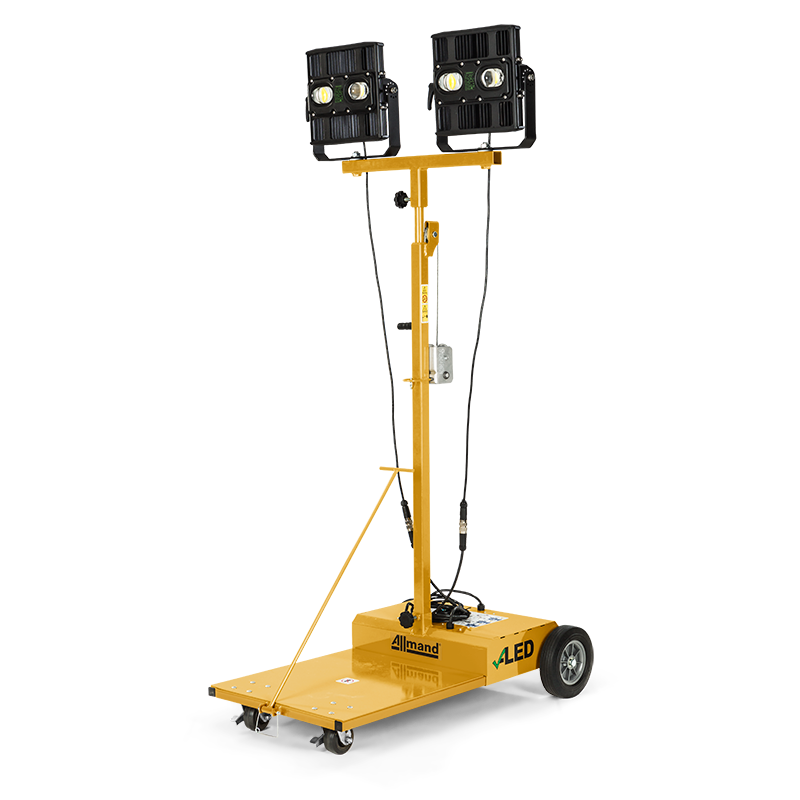

Compact and powerful, the Port-A-Lite® series provide the portable lighting needed to produce the highest quality work in concrete finishing, paving, masonry, roofing, excavation, mining, refineries, quarries, demolition, training sites, and special events. The Dual PAL features a built-in pad for a portable generator so it can be used where utility power is not available. Units available in 120 V 60 Hz and 220 V 50 Hz models.

320

LED Wattage

38,500 - 77,000

LED Lumens (total)

1 - 2

Lighting Quantity

50/60

Frequency (Hz)

Features

Welded steel frame

With urethane and powder coated components that extend product life

25cm Diameter Wheels

On both single and dual

Caster Brakes

PAL Dual LED

Winch Actuated Mast

PAL Dual LED

Platform to Accommodate Portable Generator

PAL Duel LED

3-Wire Grounded Plug Type

NEMA 5-15P

Specifications

At least one product must be displayed. Please select another option to remove this product

Power Consumption - Per Fixture (W)
320
Lumens (Total)
77,000
Operating Voltage (V)
240
Length - (m)
1.3
Height - Mast Raised - (m)
3.5
Weight- Shipping - (kg)
111.1
Lumens (Per Fixture)
38,500
Operating Voltage (V)
120
Length - (m)
1.3
Height - Mast Raised - (m)
3.5
Weight- Shipping - (kg)
111.1
Power Consumption - Per Fixture (W)
320
Lumens (Total)
38,500
Operating Voltage (V)
240
Length - (m)
0.73
Height - Mast Raised - (m)
3
Weight- Shipping - (kg)
56.2
Power Consumption - Per Fixture (W)
320
Lumens (Total)
38,500
Operating Voltage (V)
120
Length - (m)
0.73
Height - Mast Raised - (m)
3
Weight- Shipping - (kg)
56.2
Power Consumption - Per Fixture (W)
2,500
1,250
2,500
Lumens (Total)
271,000
135,500
271,000
Required Current (4 Lamps)
229
106
229
Frequency (Hz)
60
60
60
Height - Mast Raised - (m)
12
10
12
Height - Mast Lowered - (m)
8
7
8
Width - Mast - (m)
45
25
45
Weight- Shipping - (kg)
310
115
310
Weight - Operating - (kg)
2x10
10
2x10

Options

Standard (60Hz)

30 A 240 VAC 3-Wire Twist Lock (NEMA L6-30R)

Standard (50Hz)

220 V 50 Hz Schuko Plug
